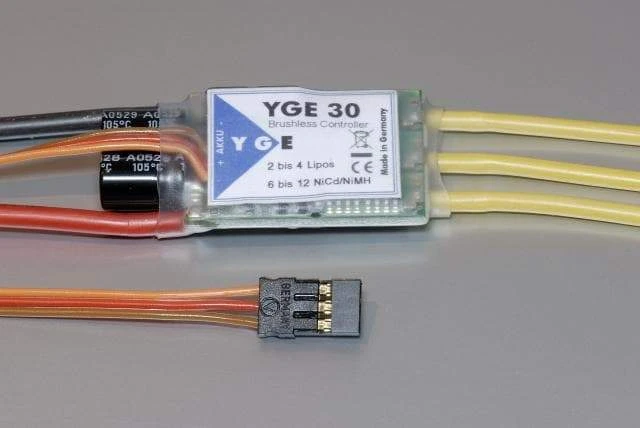

YGE 30 Electronic Speed Controller (ESC)

Description:

The specified current is the maximum continuous full power current with adequate cooling.
– 2 to 4s LiPo, with under voltage protection by power reduction.
– 6 to 12 cells NiMH, with under voltage protection by power reduction.
– disconnectable under voltage detection.
– switching BEC: 5,5V, 2A continuous, 4A peak.
– Speed regulation (Governor mode).
– Soft start.
– Active free-wheel, allowing unlimited part load operation.*
– Automatic or 6 step adjustable timing.
– 5 steps adjustable regular back EMF brake.
– Switching rate: 8 to 16 kHz
– Speed limit: 240,000 RPM (2-Pole motors)
– Temperature and overload warning
– Overall dimensions: 42 x 24 x 6 mm
– Weight without wires 11g, with wires 21g.
– Programming with the ProgCard II
