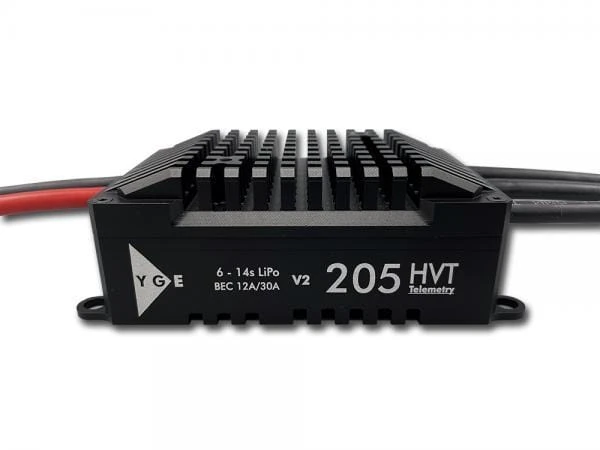

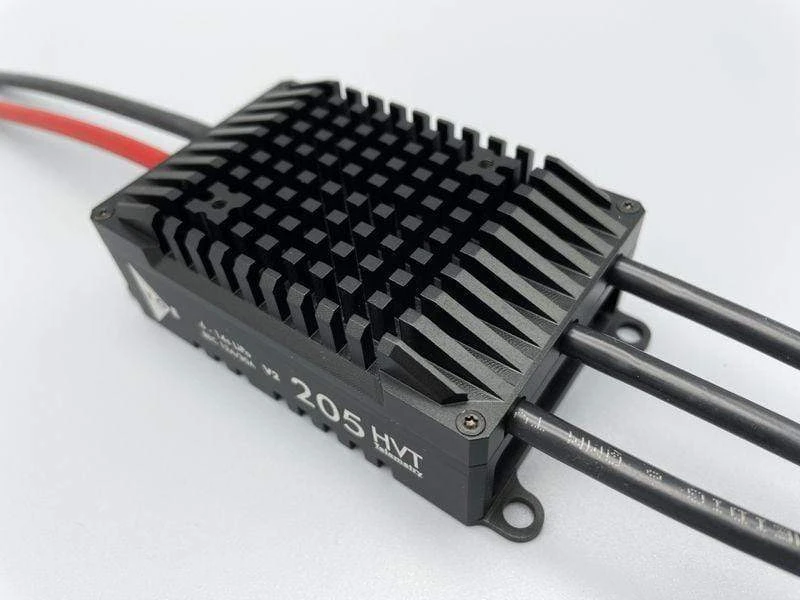

YGE 205 HVT W/ BEC 12-30A Black Edition

Specifications:

• BEC 5,0V – 8,4V
• BEC 12A continuous, 30A Peak
• “T” for Telemetry. following protocols are currently compatible: Mikado VBC, Graupner HoTT V4, Jeti ExBUS, Multiplex Sensor BUS V2, YGE-protocol for different telemetry-connections for example via YGE TexY (Futaba, Spektrum, FrSky, Core), MSH Brain 2 or Spirit FBL
• Update capable (optional USB-Adapter available)
• Entirely overhauled hard- and software (32-bit)
• The PWM-frequency will be set automatically to the requirements of the motor
• The specified current is the maximum continuous full power current
• 6 to 14s LiPo, incl under voltage protection by power reduction
• Current limiting
• Disconnectable under voltage detection
• Electronic speed control (Governor- mode)
• Soft start
• Super soft startup for scale-helicopters possible (60 sec.)
• Active free-wheel, allowing unlimited part load operation
• Automatic or 6 step adjustable timing
• Adjustable EMK brake
• F3A (Acro brake (brake force control infinitely adjustable)
• Frequency: 16 to 32 kHz
• Speed limit: 240.000 rpm (2- Poles)
• Temperature and overload warning
• Anti- flash: decreases the closing spark
• Basic -Programming with mode programming
• Fine adjustment and selection of telemetry log with the PC Setup
• Suitable USB-adapter optionally available
• Dimensions (mm): 84 x 54,5 x 33mm
• Weight without/with cables: 219g/287g
