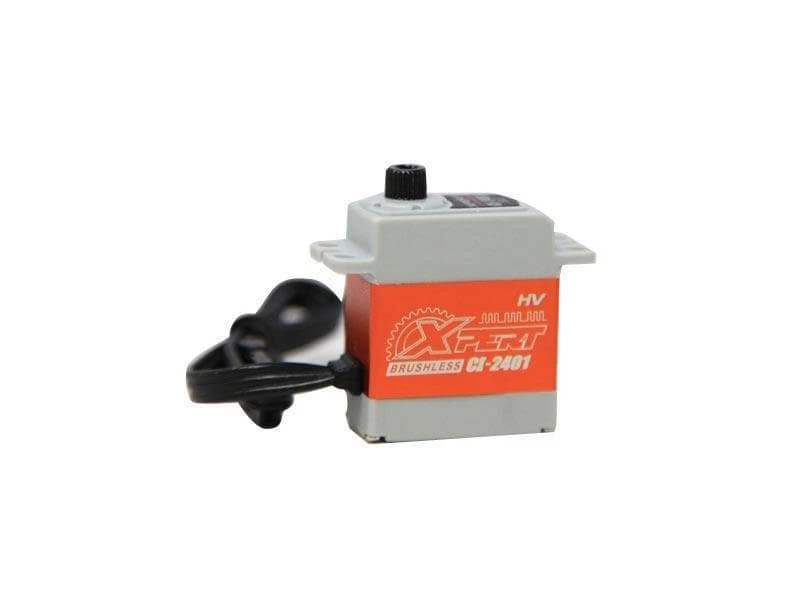

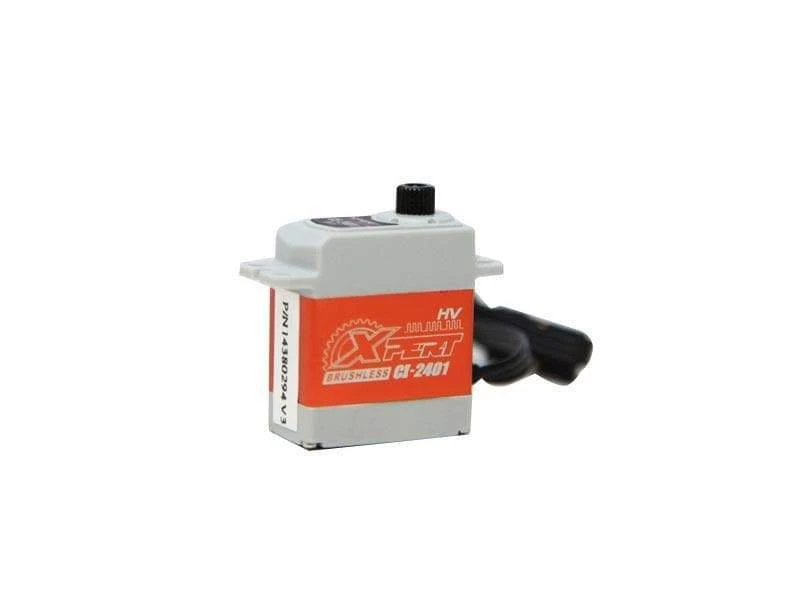

Xpert CI-2401-HV Micro Cyclic Servo

Product Description

This is the Xpert RC CI-2401-HV High Voltage (6.0V~8.4V), Micro Size, All Aluminum, One Piece Finish, High Strength Metal Gear, Digital Servo.

Features & Specifications



• Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
• 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
• Light weight design
• All Aluminum case for the best thermal dissipation and durability.
• Strong Metal Gear
• Glitch-free
• Sophisticated error correction
• High-Speed, High-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start sonorant

———————————————————————————————————————–

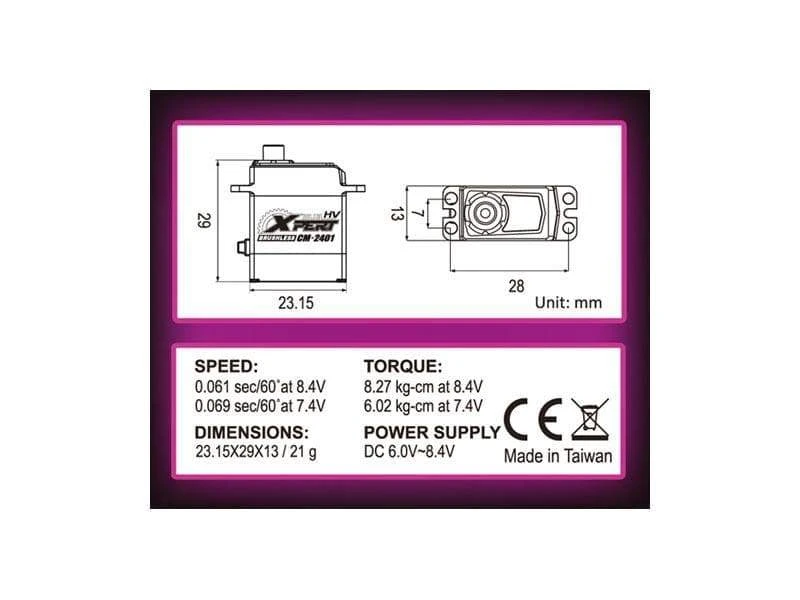

• Dimensions:23.15x29x13 mm
• Weight: 21g
• Speed:
  • @6.0V: .085sec/60
  • @7.4V: .069 sec/60
  • @8.4V: .061 sec/60
• Torque:
  • @6.0V: 6.02 kg-cm (83.56 oz-in)
  • @7.4V: 6.02 kg-cm (83.56 oz-in)
  • @8.4V: 8.27 kg-cm (114.79 oz-in)
