Sale!
Xnova OXY 3 2216-2600KV
Original price was: $85.00.$59.50Current price is: $59.50.
- Safe Payments, the Smart Choice
- Nature-friendly materials, 100%.
- Top-Notch Quality
- Safe Shopping Guaranteed

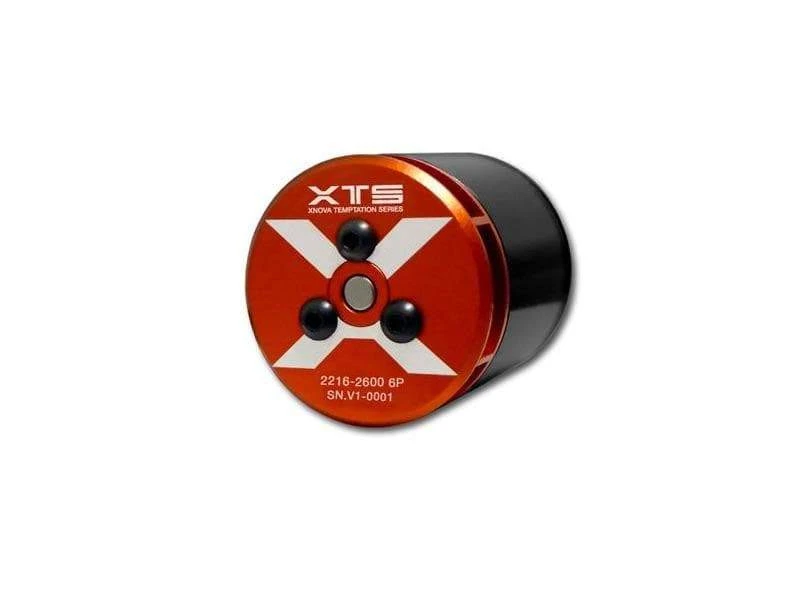

Xnova XTS 2216-2600kv 6P
Designed for extrem 3D , 220-285mm bladesize helicopter where highest power to weight ratio is important.
| Slots & Poles | 9n6p |
| Winding T | D |
| rpm/V | 2600 |
| Volt (V) | 15/ 25 |
| Io(A) | 2.7 / 3.5 |
| Rm (mohm) | 36 |
| Weight (without connector) (g) | 75 |
| Body Length (no shaft) mm | 33.8 |
| Diameter (mm) | 28.5 |
| Shaft Length (mm) (Details pictures) | 14.5 |
| Shaft Dia. (mm) | A=4mm to 3.17 on pinion side |
| Mounting Holes CTC Distance (mm) | 16*4 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 33.54 / 49.30 |
| Max Eff. | 83.90 / 85.80 |
| Kt (Nm/A | 0.0037 |
| Km (Nm/sqrt(w)) | 0.0194 |
| Max Continuous Power(Watts) | 720 |
| Peak Continuous Power(Watts) (2 sec) | not provided |
| Max Continuous Current(Amps) | 32 |
