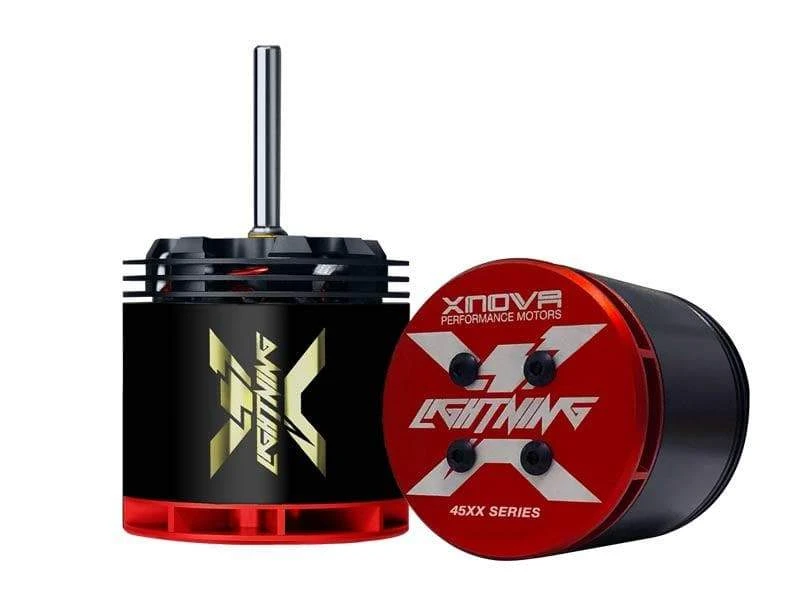

Xnova 4525-530kv

We have spent hours of testing to improve the very well established 4525 series. The result is an even better overall performing motor and increased efficiency. This all will provide you a cooler running motor and also more consistent power delivery over the full flight. The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.

Xnova brushless high performance outrunner motor designed for extrem 3D, 600-690mm bladesize helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the new Logo_700 helicopter. It is a insane powerhouse and also a very efficient and cool runnning option for any other 700 light setup competition machine.

Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
Increased power output by the use of thicker hand wound YY single strand copper wires, heat resistant up to 300 degrees C.
High-performance neodymium magnets, heat resistant up to 180 degrees C.
All other features same as XTS series.

Features:

Designed for extreme 3D flying
Developed for 630-700mm helicopters
Optimized for 12S applications
High quality Neo Magnets, heat resistant up to 150 degree C
Specialized wires, heat resistance up to 300 degree C
Precise balanced
High performance stator metal sheet
High quality NMB bearings
Marked leading high efficiency up to 94%
Cooler running
Superb quality and machining of CNC parts
Improved torque and power output
1.5mm thick wire

Specifications:
Slots & Poles: 12n10p
Winding T: YY with thick wire
rpm/V: 530
Weight (without connector): 500g
Body Length (no shaft): 56mm
Diameter: 55.7mm
Shaft Length: 61mm (Shaft C)
Shaft Dia.: 6mm
Mounting Holes CTC Distance: 30mm
Mounting Screw: 4×07
Max Continuous Power (Watts): 4500
Peak Continuous Power (Watts): 10000
Max Continuous Current (A): 95
