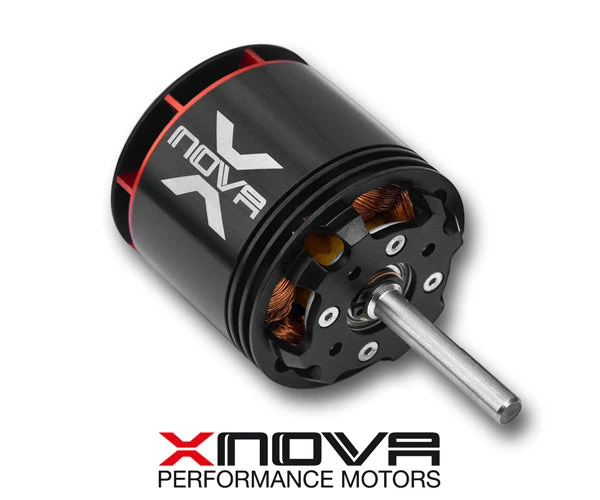

Xnova 4020-1200KV 2Y Brushless Motor With 5mm Shaft – Shaft D

Xnova brushless high performance outrunner motor for 480-600 helicopters on 6S up to 8S setups. Excellent choice for Goblin 500, Logo 480, Gaui X5 or Synergie E5. The choice for hard 3D flying.Best power to wheight setup.

1. High quality Neodym Magnets. Heat resistant up to 150 degrees C.
2. Specialized wires,heat resistant up to 250 degrees C.
3. Precisely balanced.
4. High performance sheet metal stator.
5. Optimized ventilation.
6. High quality NMB bearings.
7. Marked leading effiency up to 92%.
8. Superb quality and machining of CNC parts.

Xnova 4020-1200KV 2Y

Slots & Poles	24n8p
Winding T	2Y
rpm/V	1200
Volt (V)	10 | 20
Io(A)	2.1 | 3.2
Rm (mohm)	8 | 8
Weight (without connector) (g)	348
Body Length (no shaft) mm	50.75
Diameter (mm)	49.5
Shaft Length (mm) (Details pictures)	/ 36 / 22 / 25
Shaft Dia. (mm)	5 / 6
Mounting Holes CTC Distance (mm)	V3=4*25mm and 4*30mm
Mounting Screw	V3=4*M3 and 4*M4
Max Eff. Curr.	51.23 | 89.44
Max Eff.	91.80 | 92.84
Kt (Nm/A	0.008
Km (Nm/sqrt(w))	0.089
Max Continuous Power(Watts)	2400
Peak Continuous Power(Watts) (5 sec)	2900
Max cont. current (A)	105
