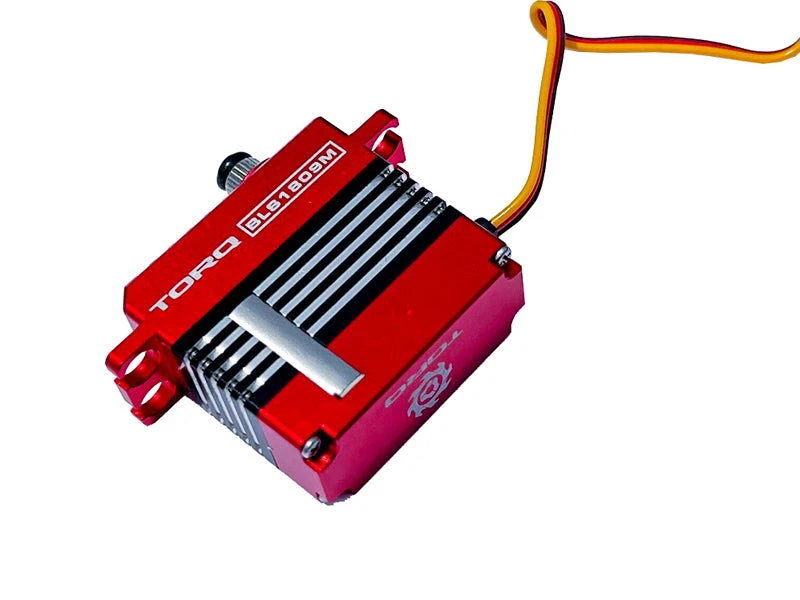

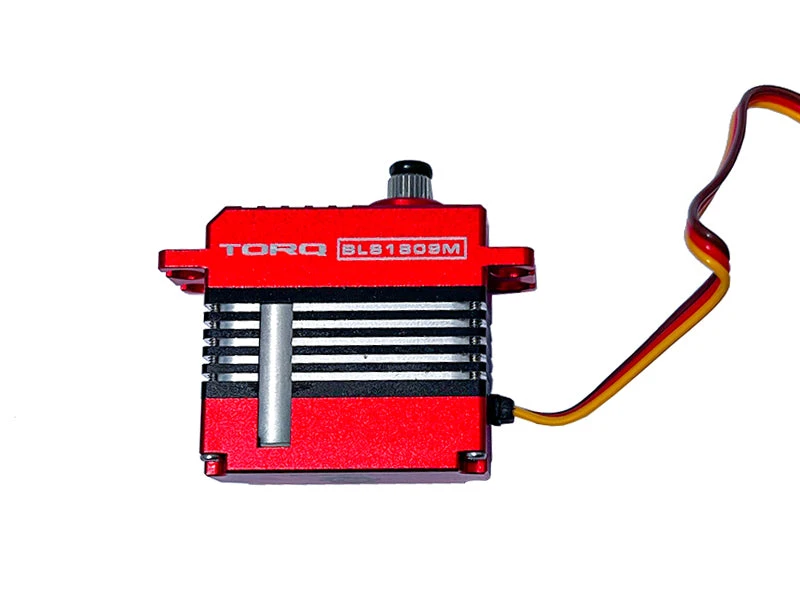

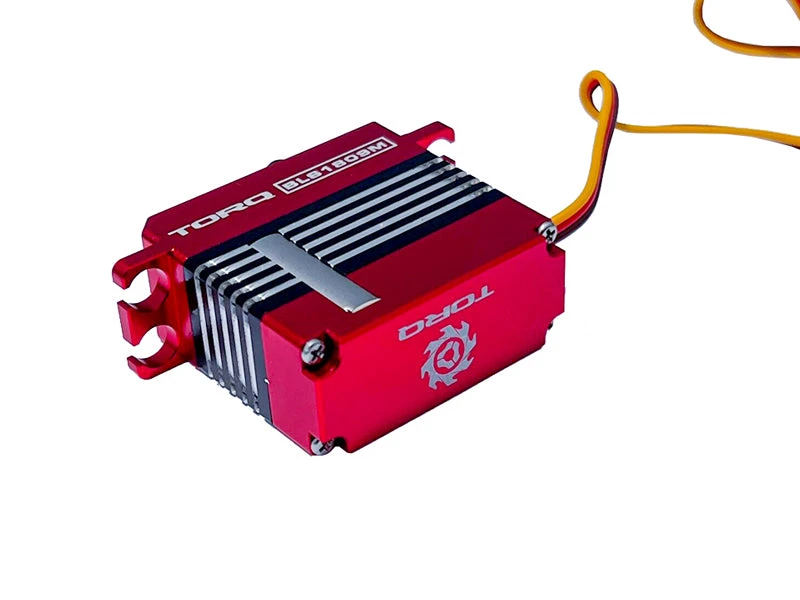

TORQ BLS1809M Mini HV Brushless Servo

Features:
– Brushless Motor Technology for the Ultimate Power & Control
– Incredible Levels of Speed & Performance
– Ultra Precise, High Resolution Control
– Fully Replaceable Steel Gear Train for Maximum Strength
– Excellent Thermal Dissipation via Finned 6061 Aluminum Case
– 8.4V High Voltage Ready
– Optimized for Heli, Airplane & Jet Aircraft
– Dual Ball Bearing Construction

Speed:
0.07 sec / 60° @ 8.4V
0.08 sec / 60° @ 7.4V
0.09 sec / 60° @ 6.0V

Torque:
24Kg.cm / 333.29 oz in. @ 8.4V
22Kg.cm / 305.52 oz in. @ 7.4V
18Kg.cm / 249.97 oz. in. @ 6.0V

Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
Weight: 45g
Dimensions: 35.5mm x 15mm x 35.5mm (LxWxH)
Voltage Range: 6.0V – 8.4V

Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.
