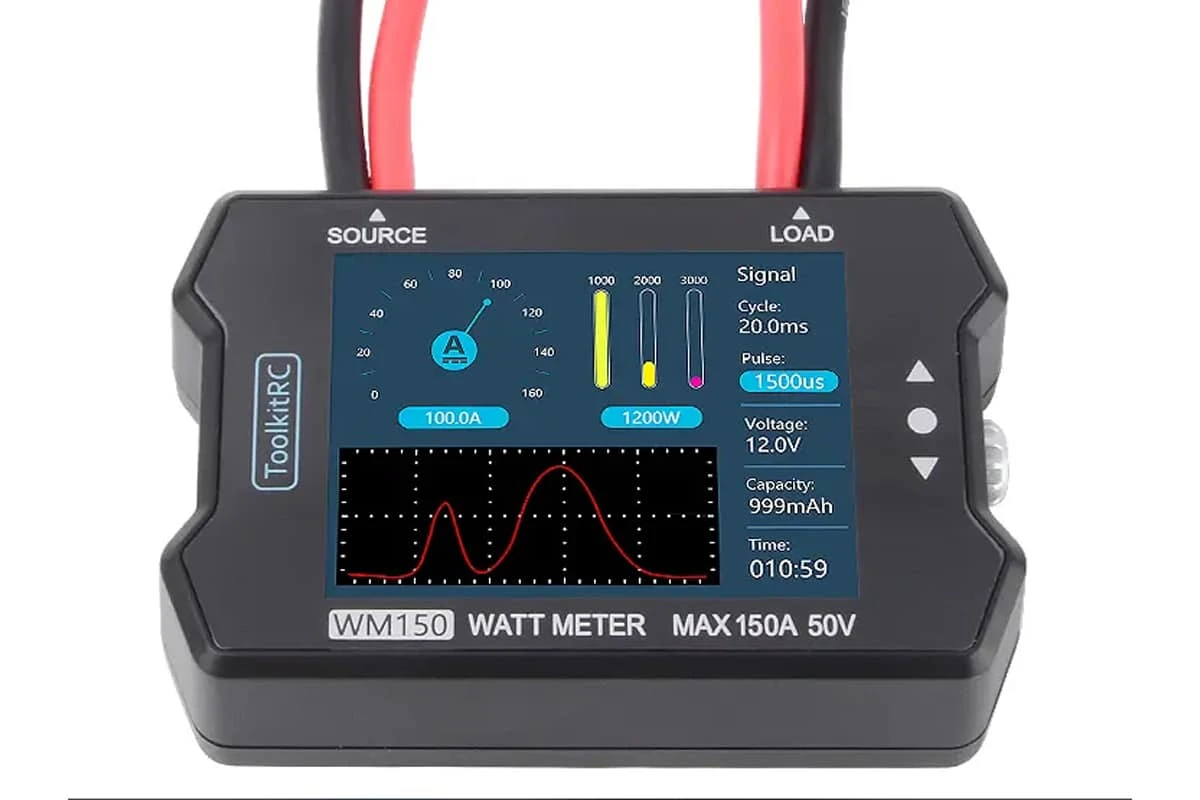

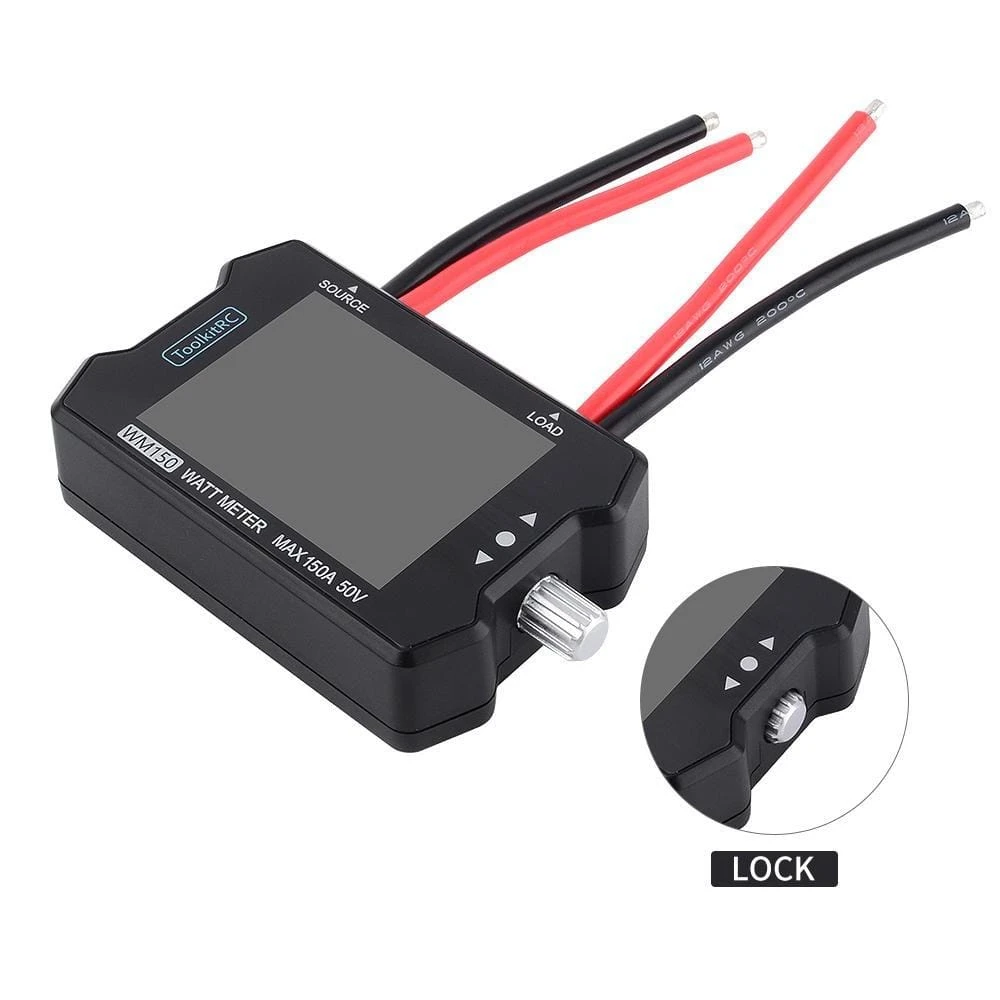

ToolkitRC WM150 Advanced Watt & Power Meter

Features

• ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like a servo, ESC, battery, etc.
• 1-50V power supply, the max current is up to 150A, the precision is accurate to 10mA.
• Support PWM signal, 1us precision, the pulse width is changeable by adjusting the button.
• Automatically to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-display is changed to A.
• The wattmeter is also supporting to display working hours.
• USB firmware update, easy to operate.

Specifications

• Brand: ToolkitRC
• Item: WM150 Watt Meter
• Input Voltage: 1-50V
• Current(Max): 150A (precision:10mA)
• USB: 5.0V@1A ( USB3.0 firmware update)
• Output: PWM 1000-2000us@50Hz
• Display: TFT 2.4″ LCD Screen(320*240 resolution)
• Product Size: 80*54*23mm Approx.
• Packing Size: 87*87*28mm Approx.
• Net Weight(Approx): 120g
• Gross Weight(Approx): 140g

Manual

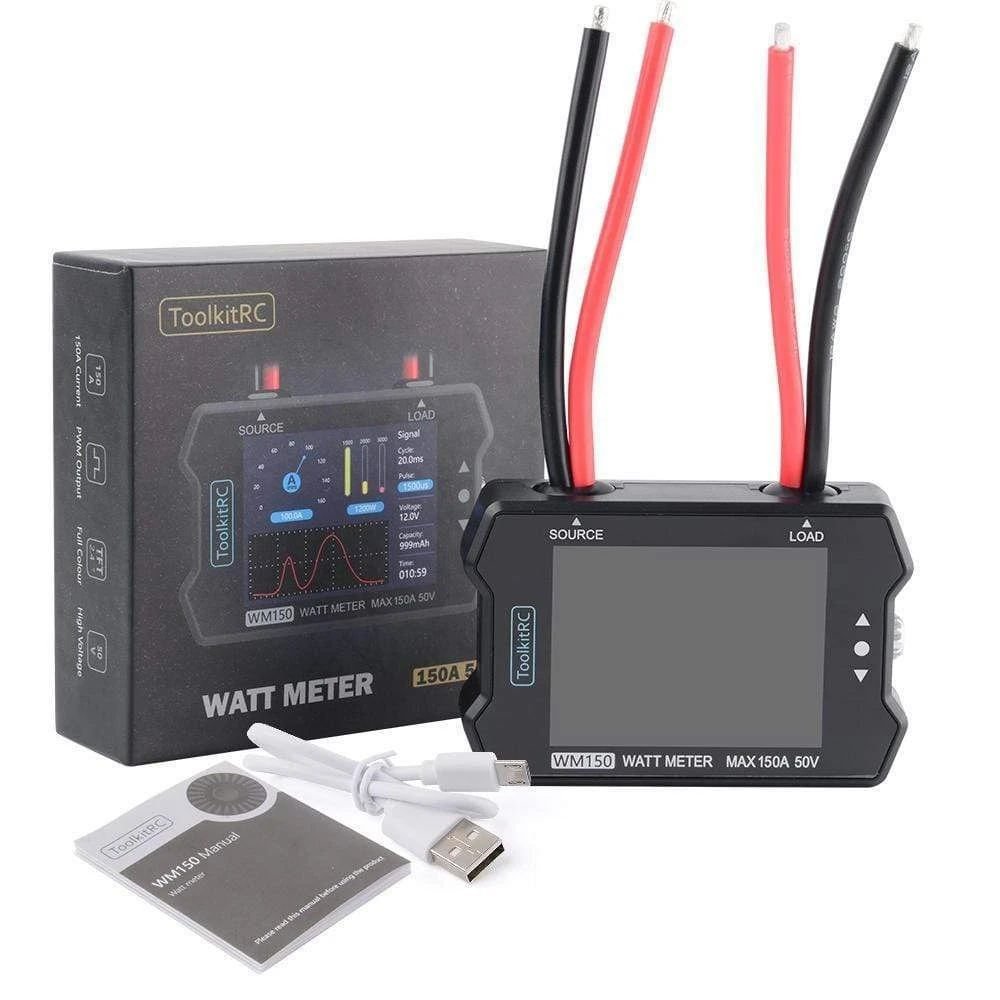

Includes

• 1 x ToolkitRC WM150 Watt Meter
• 1 x USB Wire
• 1 x Manual
