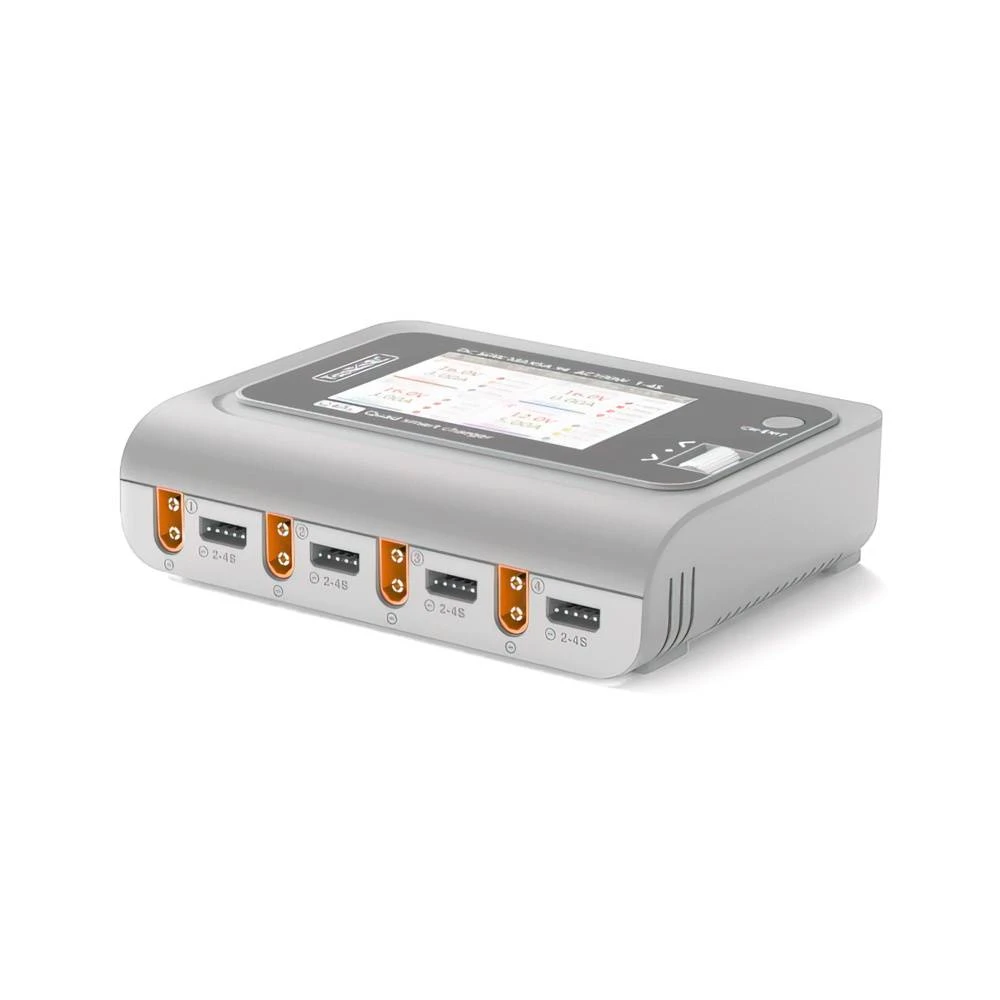

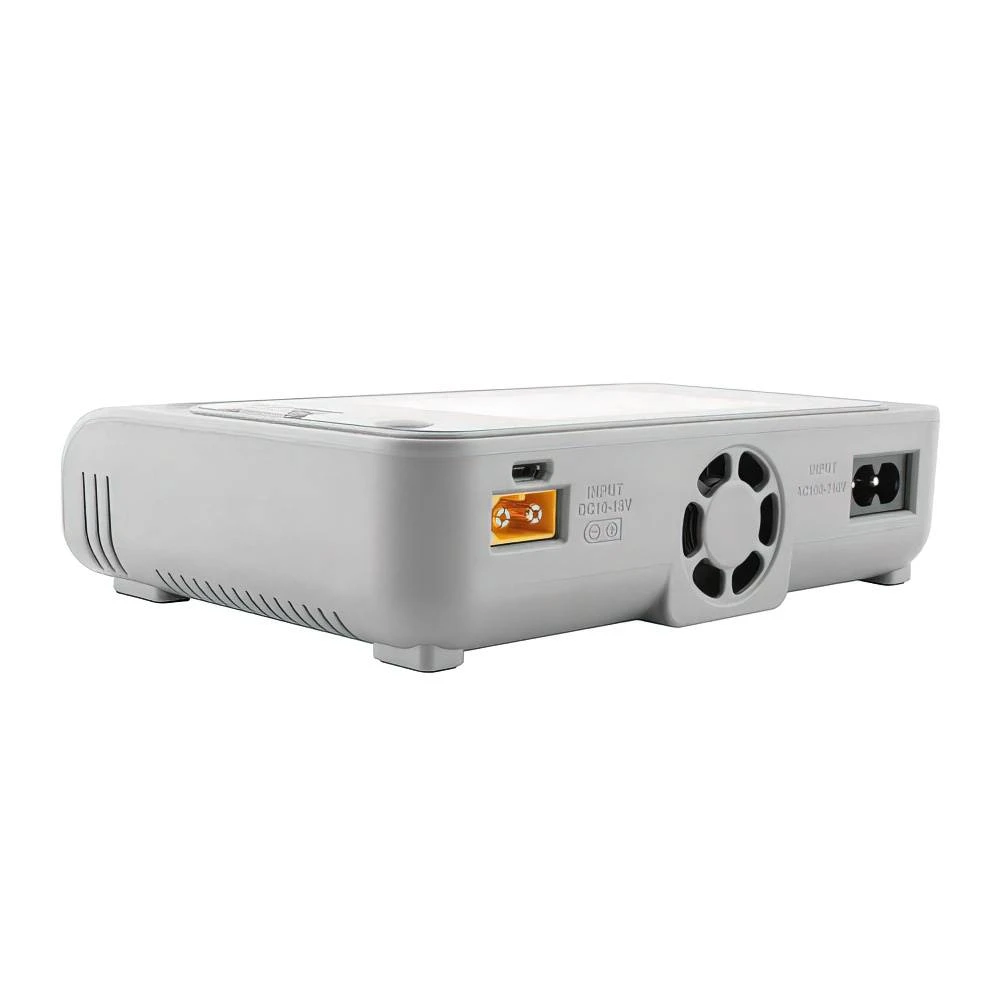

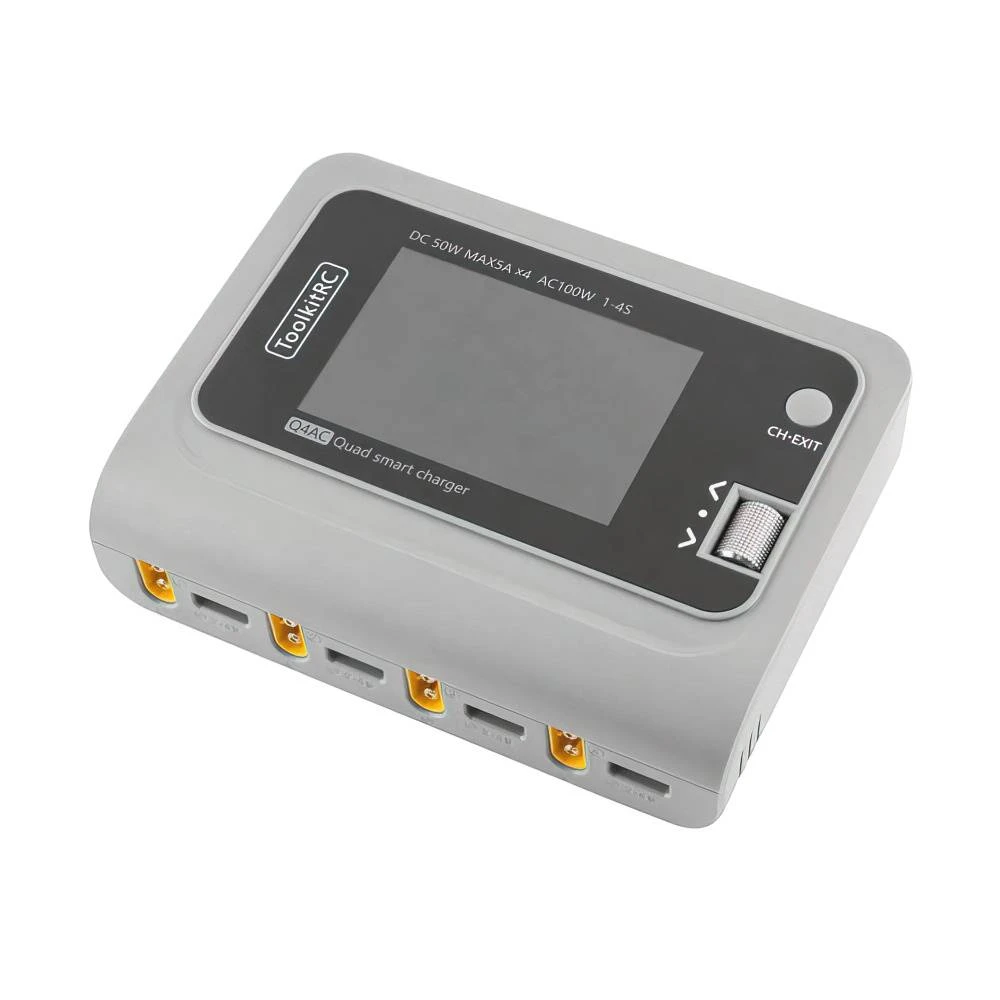

ToolkitRC Q4AC 1-4S 100W AC / 200W DC 4CH Smart Charger – XT60

The ToolkitRC Q4AC is an updated version of the M4Q with a faster processor, upgraded charging power, and a new casing. This is a Quad Channel AC/DC smart charger featuring four independently operated charging outputs. This charger comes with a 32-bit ARM Processor, IPS wide-angle display, XT60 ports, and 10 language options.

Features

• AC/DC Charging – Power Supply Modes: AC100-240Vmax 100W; DC 10-18V max 200W
• Record 3 Groups of Commonly Used Power
• Update Firmware by Connecting to PC
• Max 5A @MAX50W Charging Current
• Record 5 Commonly Used Batteries
• 3.5″ IPS 480x320p LCD Screen
• USB2.0 MicroUSB Upgrade
• 240mA Balancing Current
• IPS Wide-Angle Display
• 32-bit ARM Processor
• 10 Language Options
• 4 Output Channels





Specifications

• Internal resistance: 1-100mR @1-4S
• Type of Battery:
  • LiPo LiHV LiFe Lion@1-4S
  • NiMh @1-10S Pb @1-8S
• Voltage Range: 0.2V-5.0V @1-4S
• Input Voltage:
  • [email protected]
  • DC10-18V@MAX20A
• Balance Current: 240mA @2-4S
• LCD: IPS 3.5inch 480x320pixel
• Dimensions: 150x112x36.5mm
• MicroUSB: [email protected]
• Balance Accuracy: < 0.005V
• Charge Power:
  • 0.1-5A@50W*4 DC
  • 0.1-5A@50W*2 AC
• Weight: 460g (1.02lb)

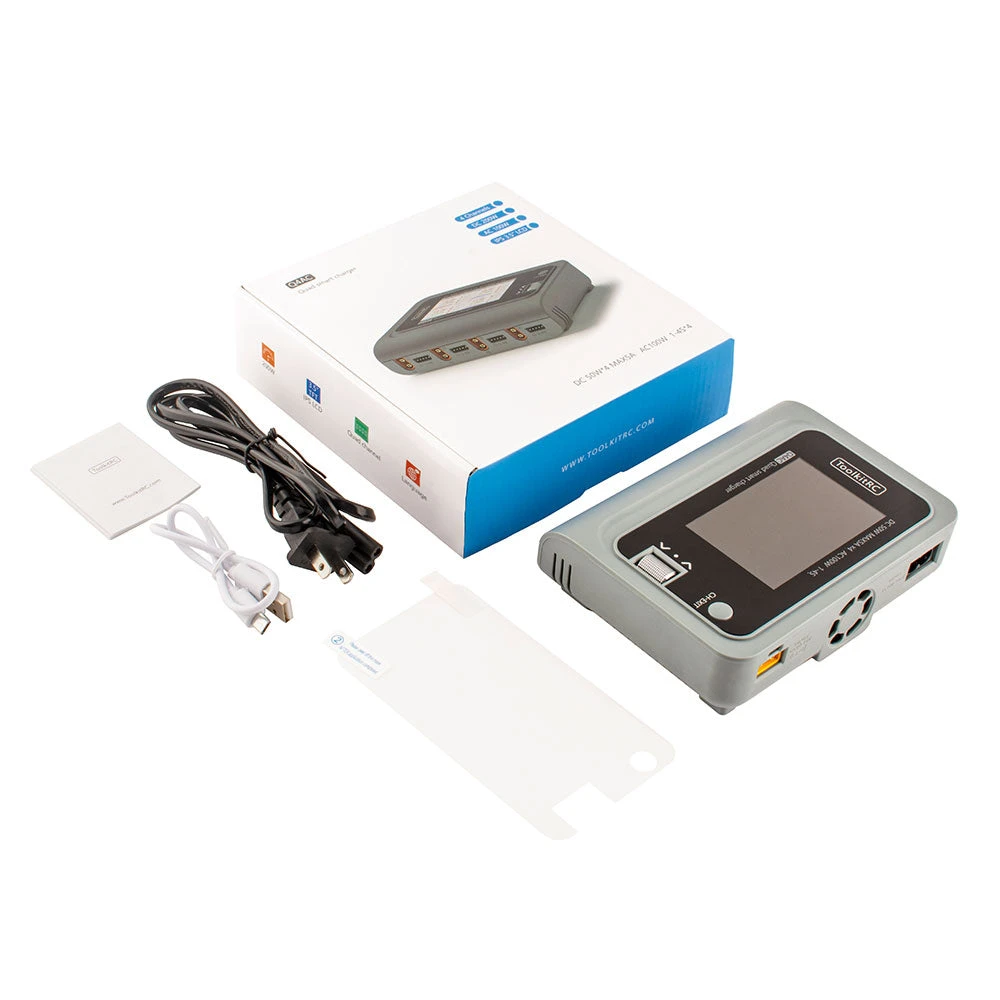

Includes

• 1x ToolkitRC Q4AC Quad Channel Charger
• 1x Screen Protector
• 1x USB-C Cable
• 1x AC Cable
