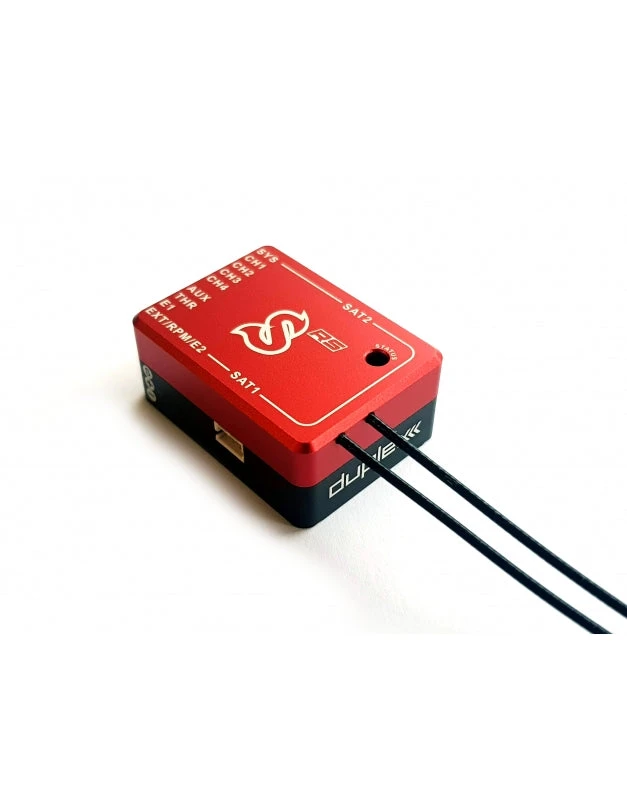

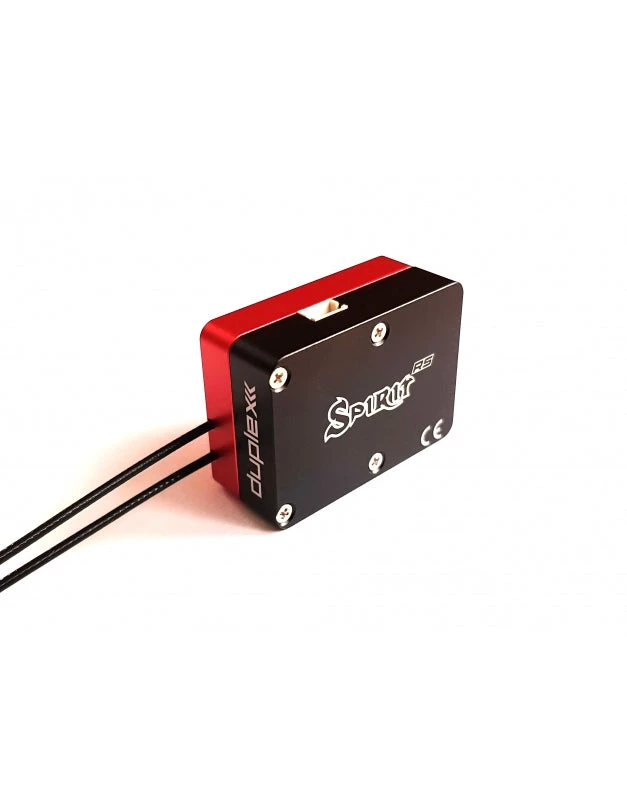

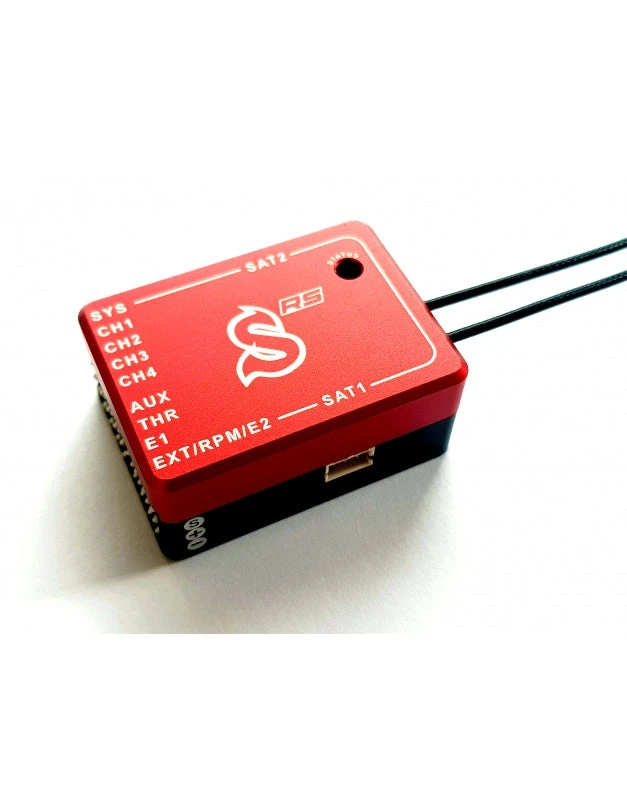

Spirit RS Flybarless System

Original price was: $234.99.Current price is: $99.99.

SKU: AGVSA 6877515612237 Categories: Flybarless Systems, Helicopter Electronics Tags: Flybarless Systems, Heli electronics, Heli_cate, Heli-flybarless-systems, Helicopter Electronics, Promotable, Spirit System, SpiritFBL

Safe Payments, the Smart Choice
Nature-friendly materials, 100%.
Top-Notch Quality
Safe Shopping Guaranteed

Description
Reviews (0)

Spirit RS is brand new stabilisation system for R/C aircrafts featuring control unit and receiver in one extraordinary packageǃ

It combines the best available technologies from both worlds to offer cutting edge experience. In other words, Spirit RS consists from Spirit 2 hardware and JETI Duplex receiver.

Manual available at the Wiki pages.

Hardware

Very rigid, CNC milled, anodized and sandblasted enclosure
Color: Red and Black, matt
Material: High quality AL6061-T6
Dimension: 36.8×27.15×15.8mm, weight: 22g
Power supply: 3.2 – 10V @ 55mA
Operating temperature: -10°C to 60°C
Latest generation, Ultra Fast
32bit ARM processor: 210 DMIPS
MEMS sensor with 12-Axis Sensor Fusion
(rotation to 2000°/s !)
Gold plated PCB with Pb-Free soldering
Laser Engraved labels for perfect visibility.
2x independent telemetry ports for JETI DUPLEX sensors
3x connector for power supply, 4x for servos
All-pin protection
Redundant internal power chain for maximum safety
Excessive tolerance for brown-outs
Embedded JETI DUPLEX 2.4 Ghz Telemetry Receiver
2x 20cm Full-range antennas
Max. output power: 15 dBm
Receiver sensitivity: -106 dBm

Package content

Spirit RS unit
USB interface
Bind plug
10cm 3M VHB doublesided adhesive tape

Warranty

2 year warranty for the original purchaser
50% discount for damage replacement of the unit

Features

Super-smooth flight control
Paddle simulation with inexpressible feeling
Classic flybar mechanics support
Extreme vibration immunity for all helicopter types
Spectrum analysis for model diagnostics
Flight log with recorded events
Easy configuration with setup wizard
Smartphone or tablet support via Bluetooth and WiFi
(Modules are sold separately)
Full integration and telemetry with JETI DUPLEX
Supported by all JETI DUPLEX radios
Support for all JETI DUPLEX sensors
Support for backup DUPLEX receiver
Support for JETIBOX
Support for ESC Telemetry – HobbyWing, Kontronik,
Castle, YGE, Scorpion
Revolutionary GeoLink support (GPS/GNSS, vario, logger)
Available for Windows, OSX, Linux, Android, iOS,
WP, SailfishOS, FreeBSD, Raspberry Pi and more
Stabilisation for scale pilots and beginners
Reliable, full-featured rescue system
Integrated Bank Switching
Governor for Electric, Nitro and Gasser Helicopters
BEC tester with load verification
Spirit Aero support (from 1.5.0 Aero firmware)
Support for all servo types:
1520/960/760us @ 50 – 560Hz
Support for CCPM 90/120/135/140°
