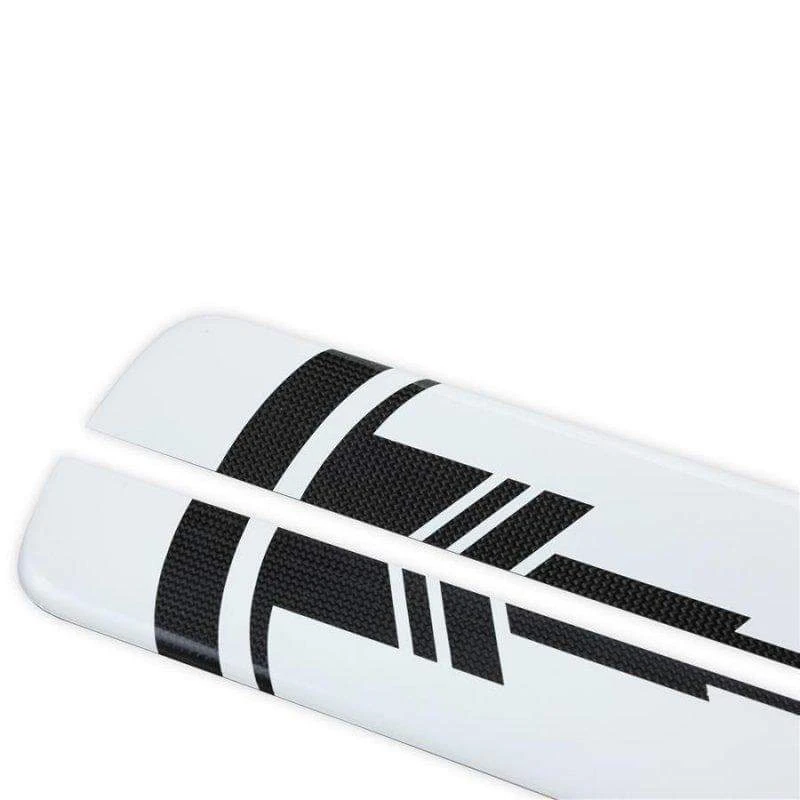

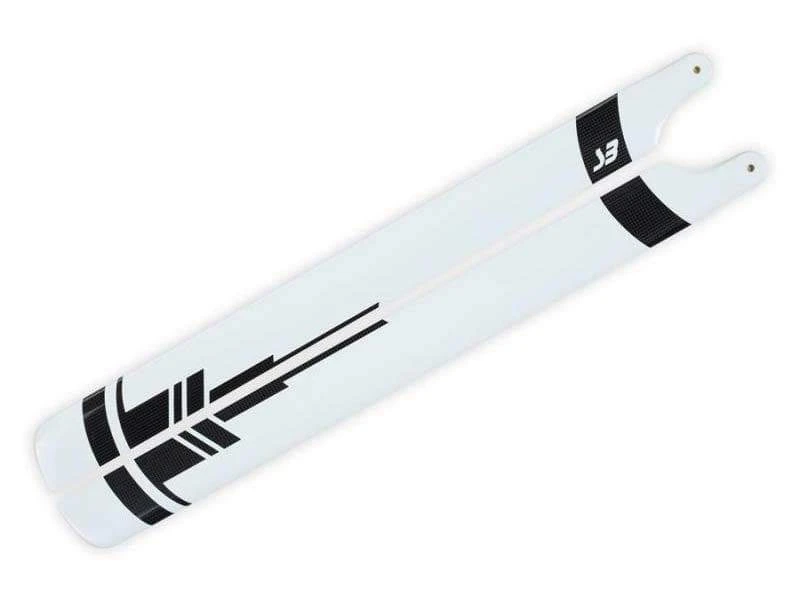

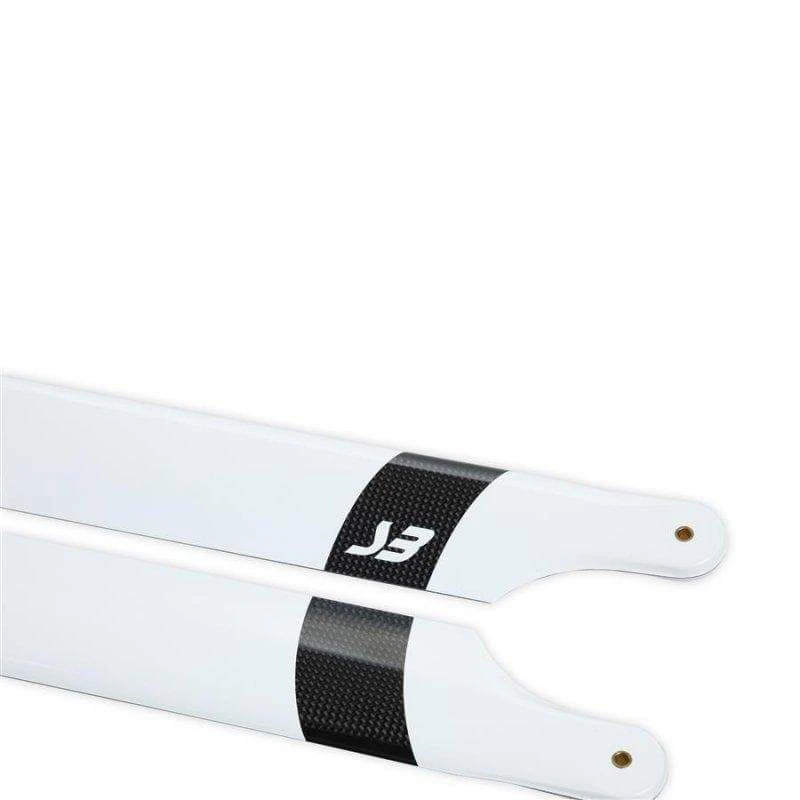

SpinBlades Black Belt 605

As already announced, we are proud to introduce an evolution in blade design and this is our new Black Belt range of performance blades.Listening to the requirements and wishes of our customers, utilizing the combined expertise of our team pilots, the knowhow of the designer and the technicians in our production department we are certain that this new design and production method will set new boundaries and help pilots create ever more demanding and breathtaking performances.
This unique airfoil has been selected to compliment the ever demanding needs of modern machines both Nitro and electric. We have created a blade which has optimum aerodynamic capability by having a constant drag factor over the entire blade length which by design has increased efficiency dramatically (test runs in the wind tunnel have proved a drag reduction of 30% has been achieved). Therefore cyclic reaction times are sharper and faster than previous Spin designs with greater acceleration and deceleration compared to the other conventional blade on the market.
Weâ??ve also improved the blade production process. The bolt hole will no longer be drilled but is now constructed during the layering process in our factory. By doing this, the fibers will not be cut or destroyed resulting in a higher breaking strain without adding any additional raw material or weight. We have also chosen a new carbon fiber product that has improved the overall strength of the blade and for safety reasons we have reinforced the Kevlar taking into account the constantly increasing rpm requirements that pilots demand. In the design of our blades we have for several years believed in the benefit of Kevlar compared to wire, why? This is because Kevlar forms a compact bond to carbon however wire cannot bond successfully to epoxy and given our design criteria this is simply not good enough so why should we settle for less?
Our pilots have paid special attention to the visual presence in the air and the new design maximizes the detection of flight attitudes enabling you to concentrate on your manoeuvre and less time focusing on airspace position.
As always the new Black Belt blade will be instantly recognizable retaining our unique image and unforgettable sound that will forever be associated with Spin Blades.

These Blades fit perfekt on a Gaui R5, Trex 600 or simular Helis in that Size.

The Price is allways per matching Set (2 balanced blades with less than 0,05g tolleranz)





root:	bolt hole:	Gewicht/pro Blatt:	weight/ per blade:	width:	forward:	profile:	direction of rod:
12mm	4mm	ca. 150 g	3200	56mm	1-2mm	Sym.	clockwise
