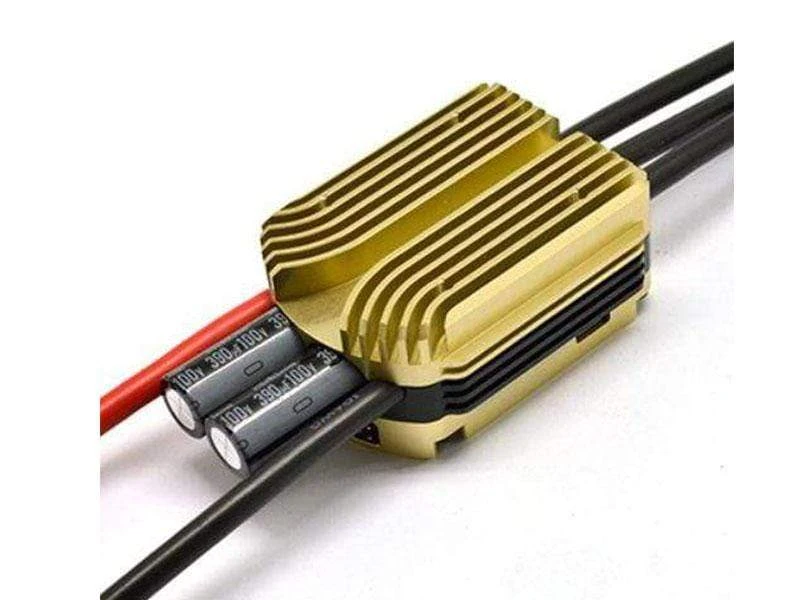

Scorpion Tribunus II 14-300A ESC SBEC - Image 2

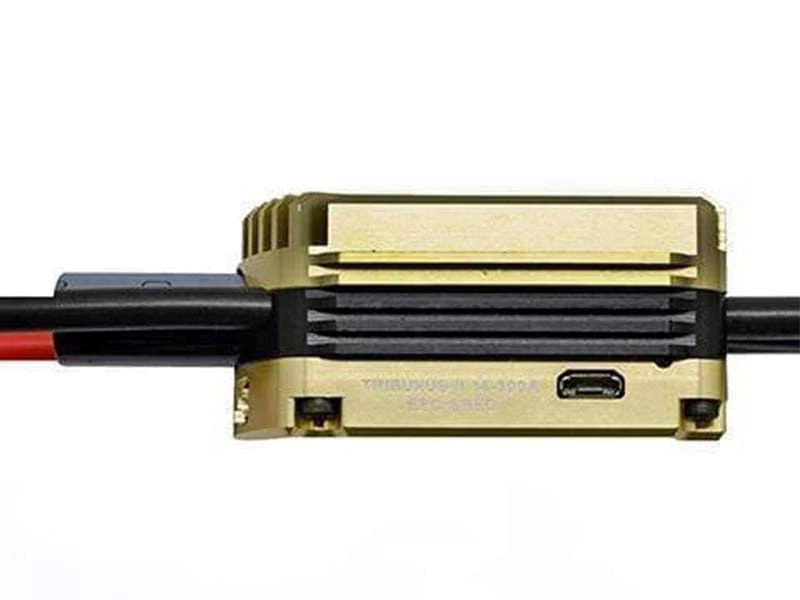

Scorpion Tribunus II 14-300A ESC SBEC - Image 3

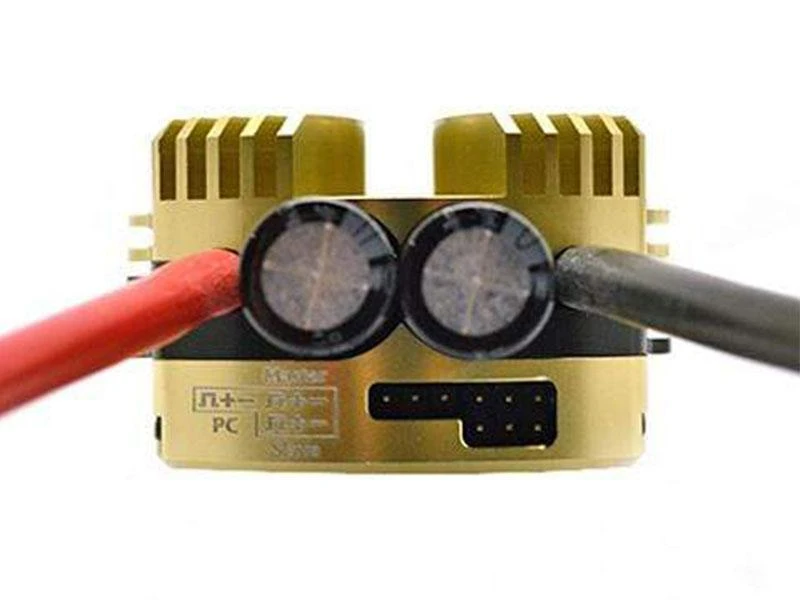

Scorpion Tribunus II 14-300A ESC SBEC - Image 4

Scorpion Tribunus II 14-300A ESC SBEC -RC Helicopter Shop scorpion power systems scorpion tribunus ii 14 300a esc sbec 28636165537869

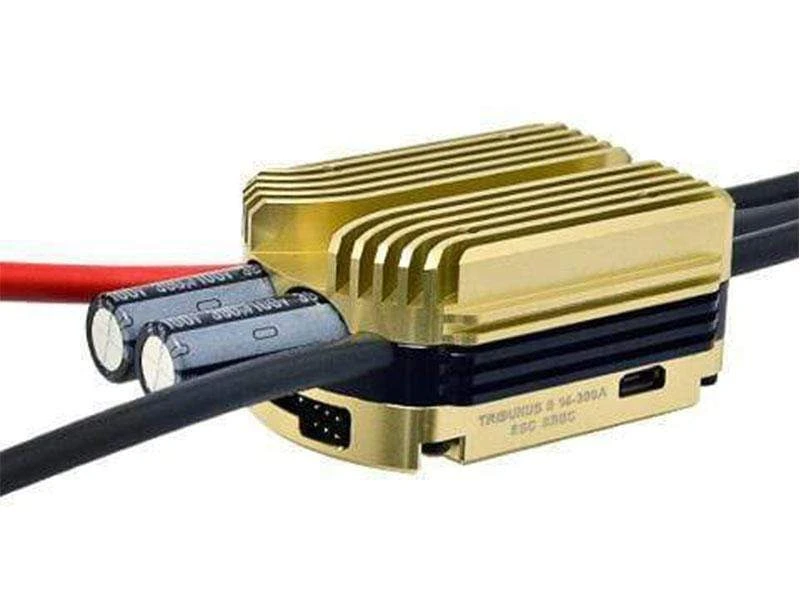

Scorpion Tribunus II 14-300A ESC SBEC

Original price was: $305.00.Current price is: $98.99.

SKU: AGVSA 3528619589709 Categories: Heli ESCs, Helicopter Electronics Tags: 14S, 251-300A, 650-700 Electronics, AmazonSeller2, BF22 10, Easter2021, Heli electronics, Heli_cate, Heli-escs, Helicopter Electronics, New year 2022, Outofstock, Promotable, Scorpion-power-systems

Safe Payments, the Smart Choice
Nature-friendly materials, 100%.
Top-Notch Quality
Safe Shopping Guaranteed

Description
Reviews (0)

Product Description

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3.

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.

Supported HvLi battery 14S total 61V **.

Size: 90.7mm x 50mm x 31.9mm

Weight: 238 Grams.

**Using up to16s HV Lipo will not void the warranty.

Scorpion Tribunus ESC {Tutorial} – Connecting to PC Downloading SProto + Firmware Updates. Produced by Kyle Dahl

Mikado Proving Ground Produced by Kyle Dahl

Scorpion Tribunus 14-300A – User Manual

Scorpion Tribunus Heli Program Sproto

Scorpion V Link II Cable CH340 Driver (For all ESC use)

How to update Tribunus firmware

How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO

How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti

DIY your spark suppressor system on a ESC

Specifications

Max Continuous Current	300 Amps
Peak Current	400Amps
Operating Voltage Range	14-61 Volts **
BEC Output voltage:	5.1V to 8.3V adjustable.
Max Continuous BEC Output	10 Amps @ 8.3 V
Peak BEC Output	30 Amps/1s @ 8.3 V
On Resistance	0.75 mOhms *2
Size	90.7mm x 50mm x 31.9mm (3.57 x 1.97 x 1.26 in)
Weight (Without Connectors)	244g (8.61 oz)
Drive frequency	8kHz – 32kHz
