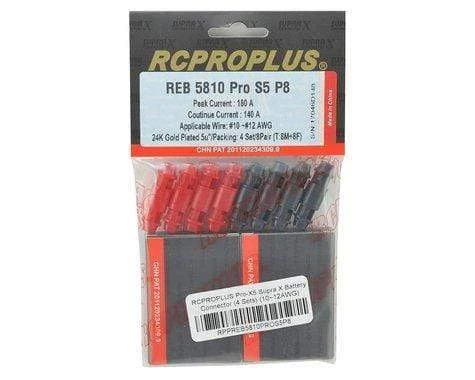

RCPROPLUS Pro-S5 Supra X Battery Connectors 10-12AWG (4 Sets)

Supra X Pro S5 Battery Connectors 4Set 10-12AWG REB5810PROS5P8

Featuring a unique patented banana plug lock design, these Pro-S5 connectors securely lock in place handling quick movements and vibrations, commonly found during extreme 3D flights, without coming apart. The stronger jacket and snaps extends the advantages of the previous generation of Supra X Connectors and makes them better.

These connectors are a great solution for your high current and high voltage demands offering a large, low resistance surface patch for efficient power transfer. The 24K Gold Plated bullet plugs feature a recessed wire cavity and solder windows making assembly hassle free, while the sheath uses high temperature capable, impact-resistant plastic imported from Japan.

Features

• Patented lock design eliminates separation
• Use with batteries, speed controllers and chargers
• Recessed plug cavity and solder windows
• Large, low resistance contact patch
• Hassle free assembly



Specification	Unit / Data
Products No.	REB5810 Pro S5 P8
Applicable Wire	10~12AWG
Peak Current	160A
Continue Current	120A
Max.Volt Rating D/AC	100V
Contact resistance	0.38m Ohm
Temp.Rating
Dimension
Weight(g)
Raw Material	C36 Series
Standrad Packing	P8 (4 Set 8Pair)
