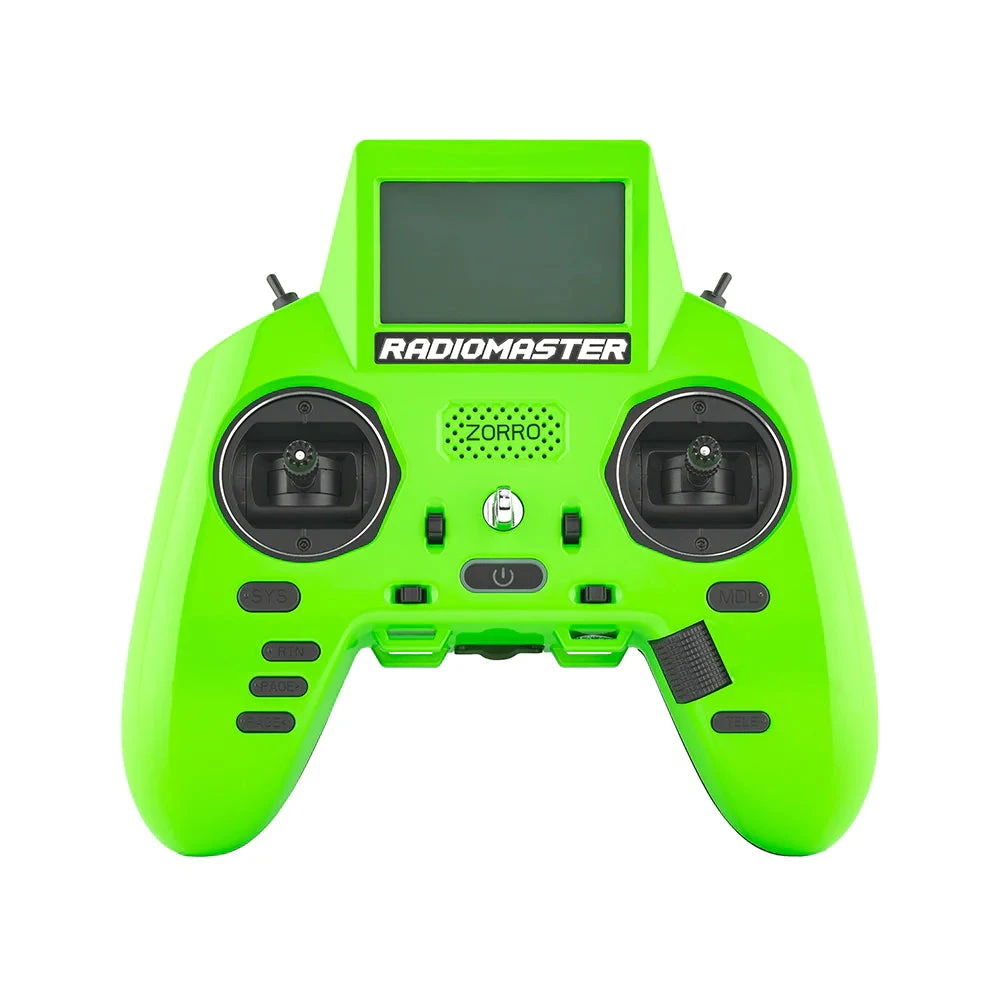

RadioMaster Zorro Limited Edition ELRS – Green

Features

• Optional 5 colors – Carmine Red / Python Green / Lemon Yellow / Sakura Pink / Crystal Transparent
• External Module Bay for use with Crossfire / ELRS and other compatible modules
• Available in 4in1 and ExpressLRS Versions
• Supports OPENTX & EDGETX
• 18350 Battery Compartments
• Oversized LCD with adjustable brightness for any environment

Specification

• Item: Zorro Limited Edition Radio
• Color: Carmine Red / Python Green / Lemon Yellow / Sakura Pink / Crystal Transparent
• Gimbals: Hall-effect
• Physical Dimensions: 170*159*108mm
• Weight: 350 grams
• Operating Frequency: 2.400GHz-2.480GHz
• Internal RF Options: 4-in-1 multi-protocol / ELRS
• Supported Protocols: Module dependent / ELRS
• RF Power: 4-in-1: 20dBm max. ELRS: Up to 250mw ( CE & FCC Versions will be available)
• Antenna Gain: Folding 2db
• Operational Current: [email protected]
• Operational Voltage: 6.6-8.4v DC
• Control Distance: 4-in-1:> 2km @ 20dbm / ELRS: Receiver and Power Output dependant
• Operating system: OpenTX / EdgeTX Compatible
• Control channels: Maximum 16 (Rx dependent)
• Display: 128*64 Monochrome LCD
• Battery: 2 x 18350 (Not included)
• Charging: Built in USB-C Charging
• Module Bay: Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
• Firmware Upgrade Method: Via USB or SD card (SD Not included)

User Manuals & Firmware

• ZORRO User Manual
• ZORRO Quick Start Guide 1.1
• Zorro SD Contents and Firmware

Package Includes

• 1 * Zorro Limited Edition Radio
• 1 * Screen Protector
• 1 * USB-C Cable
• 1 * Stickers
• 1 * Manual
