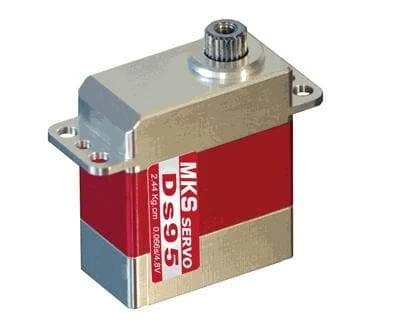

MKS DS95 Micro Coreless Digital Servo

INCLUDES
– MKS DS95 Servo ID#S0013010
– Servo Horn Package, x1

Specifications:
• Dead band: 0.001ms (Default)
• Control System: +Pulse Width Control
• Working frequence: 1520μs / 333hz
• (RX) Required Pulse: 3.0 ~5.0 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8 ~6.0 V DC Volts
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed (4.8V): 0.066 sec/60° degrees at no load
• Operating Speed (6.0V): 0.053 sec/60° degrees at no load
• Stall Torque (4.8V): 2.44 kg-cm (33.9oz/in)
• Stall Torque (6.0V): 3.05 kg-cm (42.3oz/in)
• 360° Modifiable: YES
• Motor Type: 12mm Coreless Motor
• Potentiometer Drive: Direct Drive
• Driver Type: FET
• Bearing Type: Dual Ball Bearings
• Gear Type: Chrome Gear
• Case: All Alumimnum Outer Case
• Programmable: No

– Weight: 21.21g (0.75 oz)
– Dimensions: 23X12X27.25 mm (0.9X0.47X1.07 in)
– Connector Wire Length: 20.0cm (7.8 in)

Bringing you the latest all-metal gear servos that provide high speed, high torque and cooling ability never seen before.





Micro Servo	(4.8v)sec/60°	(6.0v)sec/60°	(4.8v) kg/cm	(6.0v)kg/cm
MKS DS95	0.066	0.053	2.44	3.05
HS-5065MG	0.14	0.11	1.8	2.2
