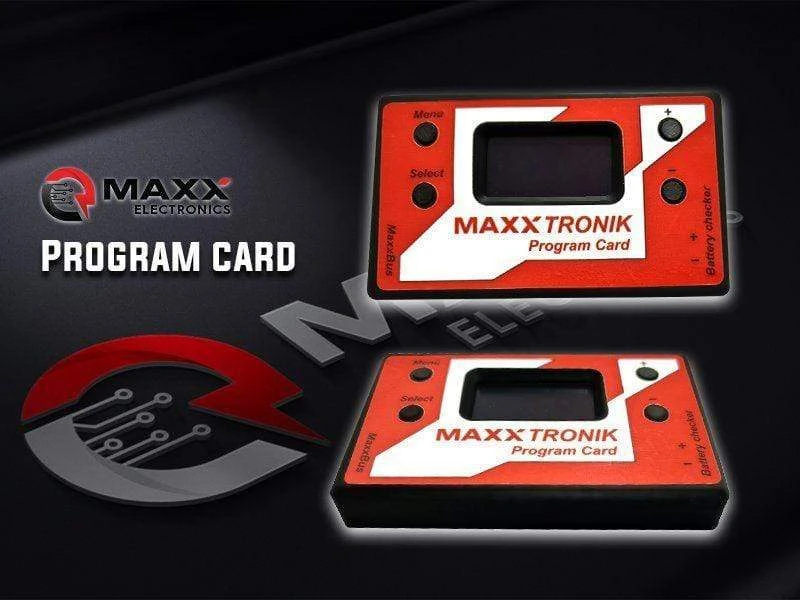

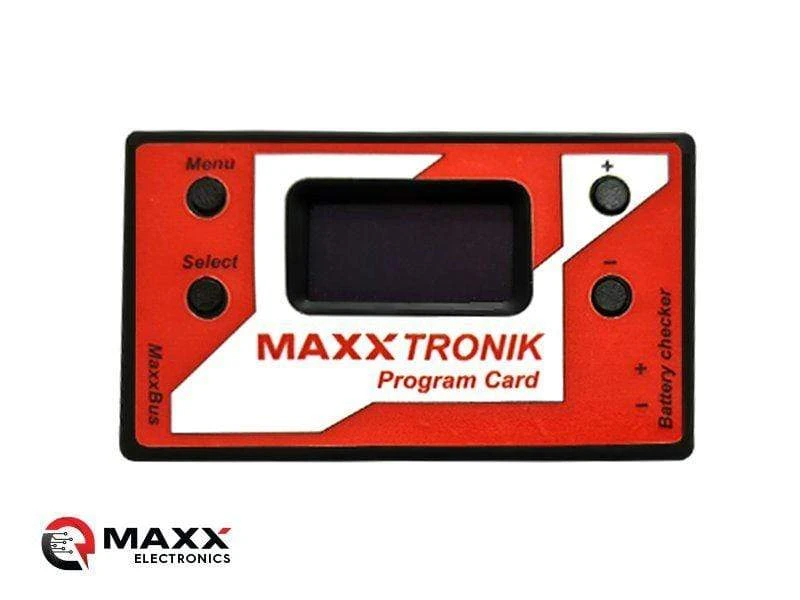

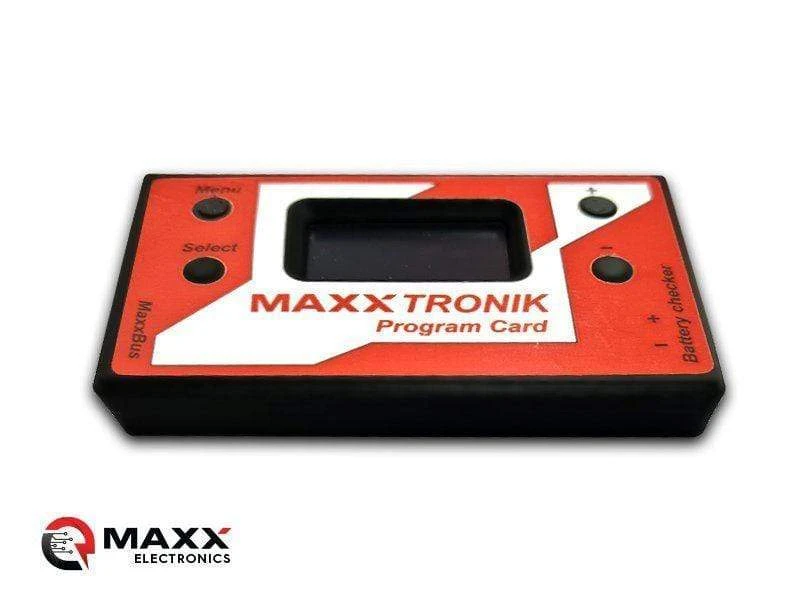

MAXX Flybarless Program Card/Battery Voltage Checker

MAXX Flybarless Program Card v2.4 Features:

Full configuration for MAXX Flybarless without a computer
1. Battery meter:
2 -6s battery voltage meter of the cell and total voltage.
2. Rx signal monitor:
Checking Rc channel value of the 7 channels, checking the center of transmitter.
3. Heli configuration:
Heli size, flying style, receiver type, DSM satellite Bind, resuce function, safety threshold of the BEC, sensor mount type…
4. Cyclic configuration:
Swashplate type config, swashplate Trim, servo type, servo Trim, servo reverse,
5. Cyclic tunning:
Limit, cyclic gain, separate aileron gain and elevator gain setting, agiity, roll/flip rate, advance PID gain, RC deadbank, Eleprecom, paddleSim, expo, change value of three banks..
6. Collective configuration: Pitch travel +/-, direction, pitch pump
7. Tail configuration:
Servo type, servo reverse, tail travel, tai servo Trim, tai balancer for 2-ways tail rotation brake, tail rotation rate, tail acceleration , tail stop, show the tail gain from Tx, tail precom ( by collective pitch, cyclic), tail PID advacne gain tunning.
8. Governor configuration:
Governor enable/disable, governor type (Gas nitro/ electrics), 10-step gain, Max-min of Throttle, start throttle for Maxx softstarter, scrollup speed for softstarter, gear ratio configuration, poles, Bailout, Idling bailout, set Rpm value of three banks.

Extensive functionality: Ability to configurate 760us swashplate type servos
