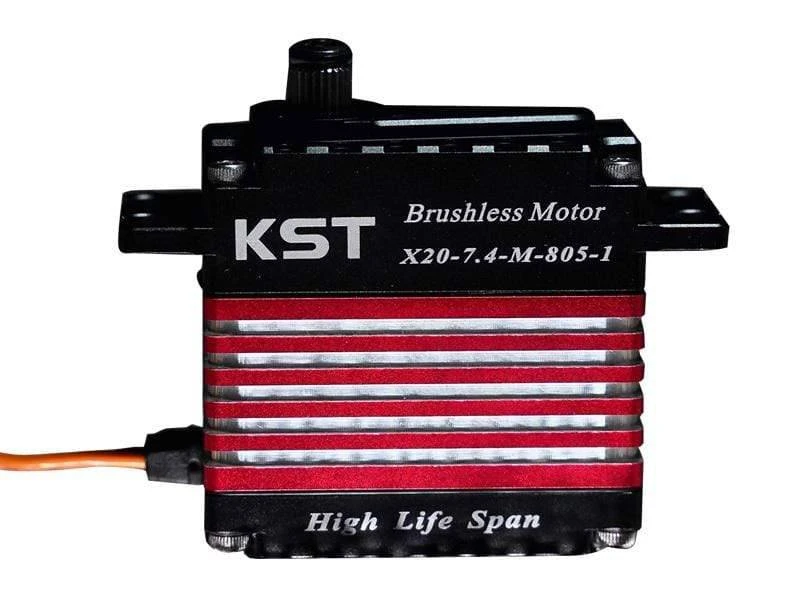

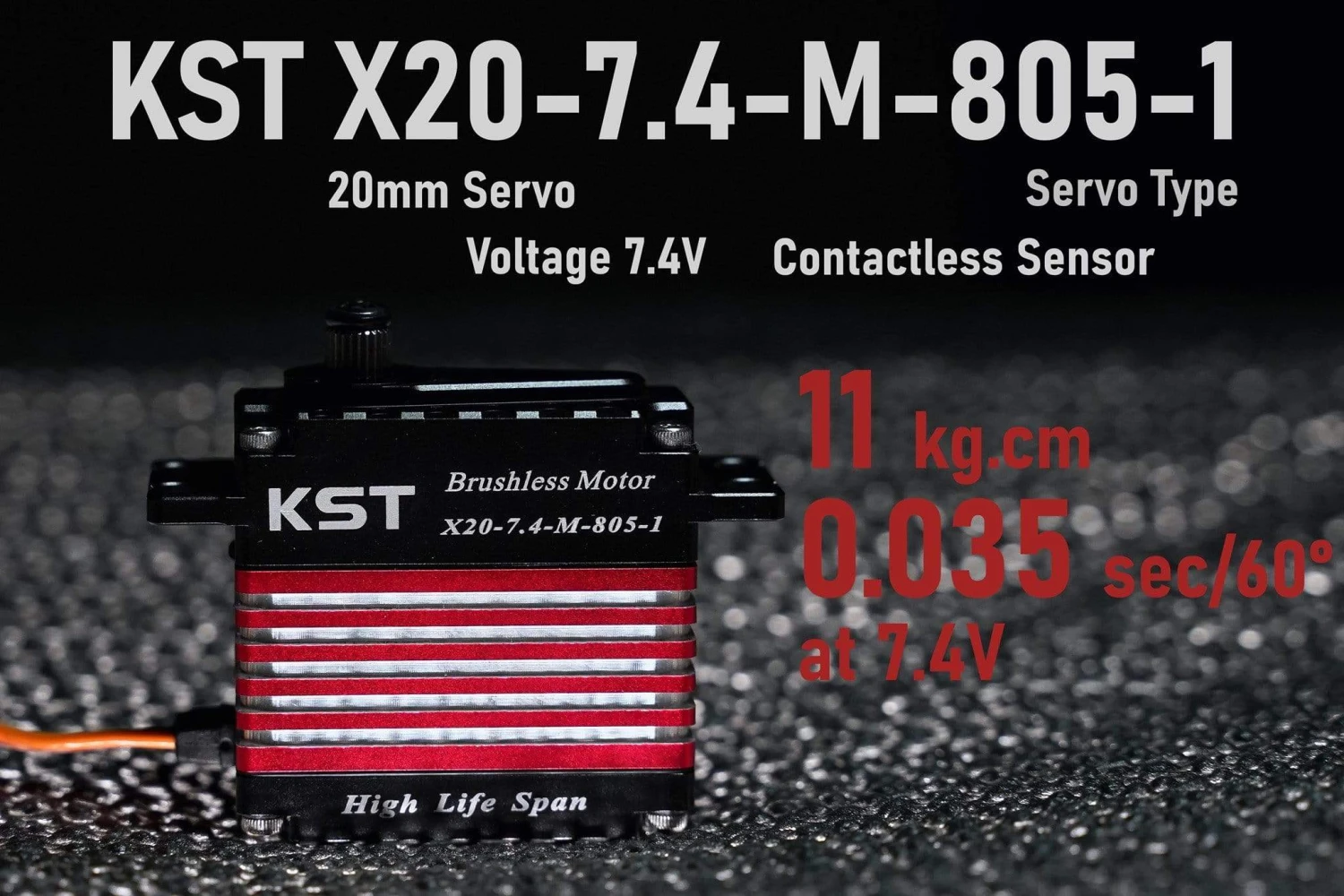

KST X20-7.4-M-805 HV Brushless HLS (High Life Span Servo)

X20 M805 – Tail Servo, 12.2 Kg.cm, 0.03 sec/60°

Technical data:

Operation Voltage(Rated): DC7.40V

Operation Voltage Range: DC6.0V-8.4V

Torque: [email protected]

             [email protected]

             [email protected]

Speed: 0.040sec/60°@6.0V

            0.035sec/60°@7.4V

            0.030sec/60°@8.4V

Operating Temperature Range: -10℃……+65℃

Signal Voltage: TTL-Level: HIGH:min.3.3V,max.5.0V

                         TTL-Level: Low:min.0.0V,max.1.5V

Pulse Lengths: 450us – 1050us

Working Frequence: Narrow band 760us/560Hz

Gear backlash: ≤0.5°

Case Material: Aluminum Alloy

Motor Type: Brushless

Gear Set Material: Hardened Steel

Position Sensor: Contactless

Connecting Cable: 22AWG
