KST X08 V6.0 HV Servo
Original price was: $45.00.$31.50Current price is: $31.50.
- Safe Payments, the Smart Choice
- Nature-friendly materials, 100%.
- Top-Notch Quality
- Safe Shopping Guaranteed

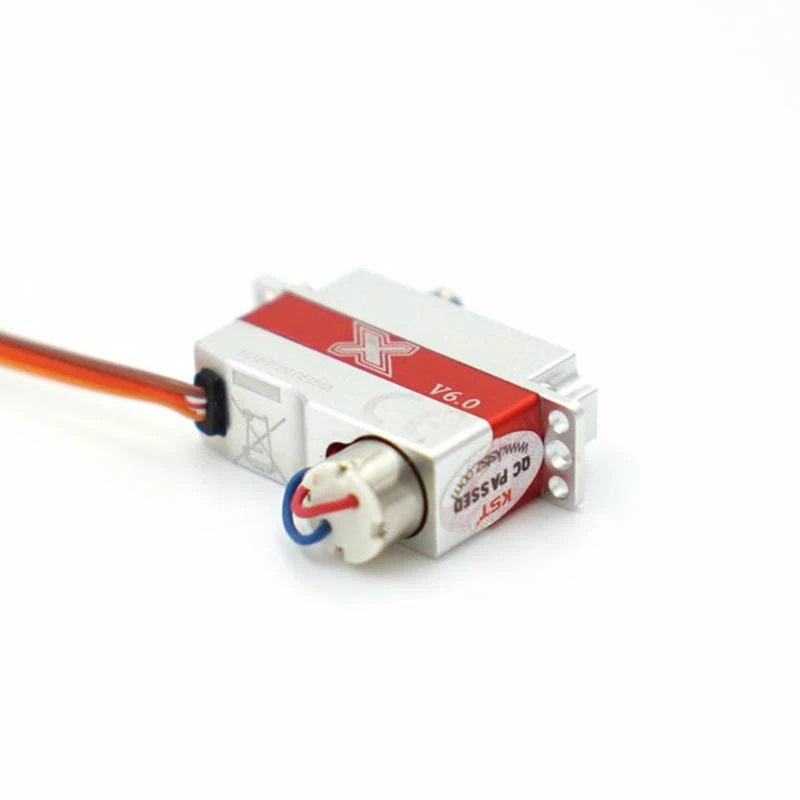

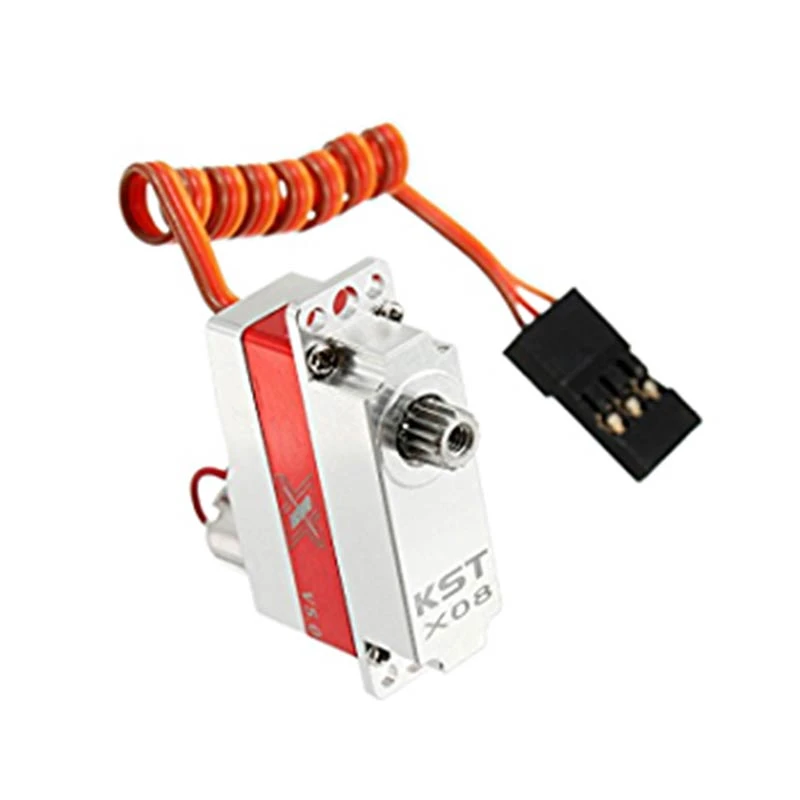

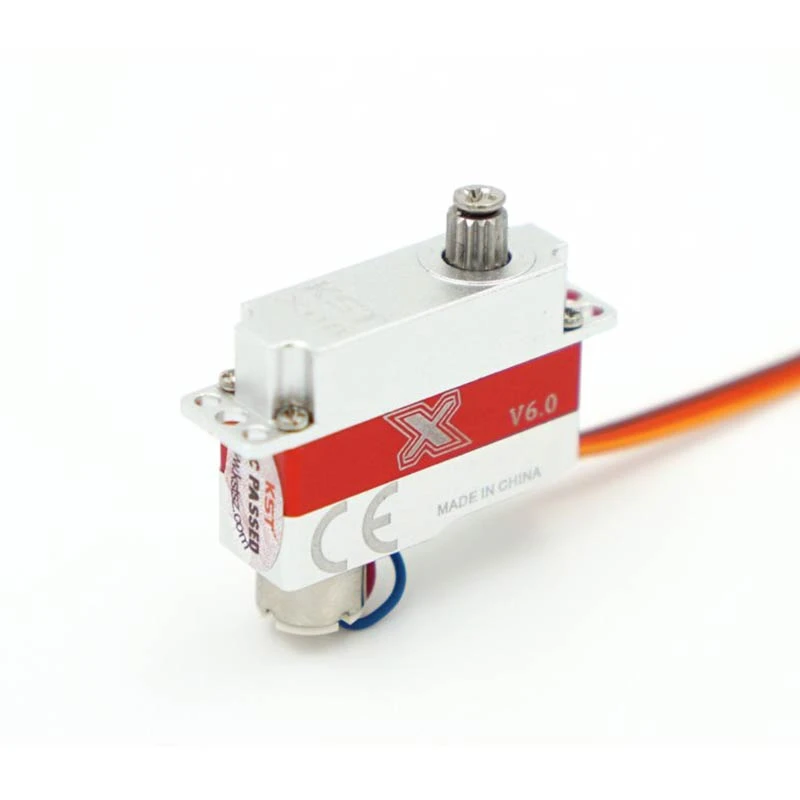

KST X08-V6 reinforced (gear output gear made of steel; now with programmed soft start) from KST in an aluminum housing with a robust metal gear . The KST-X08-V6 is characterized by its robustness, high resetting accuracy and a positioning force of up to 28 Ncm at a good positioning speed.
The KST X08 / H / “reinforced” servos are recommended for models up to 1.5 kg take-off weight.
Due to the low height of 8 mm, the KST-X08-V6 is ideally suited for HLG, DLG, F5B and F5D models. The X08 servo can be operated with a 1-cell or 2-cell Lipo. The high-quality full aluminum housing can be fitted precisely and ensures good heat dissipation. Please note the servo recommendation of the respective model manufacturer when selecting your servos
Accessories included: 3 plastic servo arms, 1 servo arm screw, 4 fastening screws
Technical specifications:
| Operating voltage: | 3.8 – 8.4 volts (HV) |
| Case Thickness: | 8 mm |
| Housing width: | 23.5 mm |
| Housing height: | 16.6 mm |
| Weight: | 8 g |
| Housing material: | CNC-milled aluminum |
| Servo motor: | Coreless bell anchor |
| Position sensor: | Potentiometer |
| Positioning force at 3.8 volts: | 14 Ncm |
| Actuating force at 6.0 volts: | 22 Ncm |
| Positioning force at 8.4 volts: | 28 Ncm |
| Adjustment time at 3.8 volts: | 0.18 sec / 60 ° |
| Adjustment time at 6.0 volts: | 0.15 sec. / 60 ° |
| Positioning time at 8.4 volts: | 0.09 sec. / 60 ° |
| Fastening straps: | default |
| Servo gear: | Phosphor bronze + steel |
| Camp: | ball-bearing |
| Connection cable plug system: | approx. 15 cm Graupner connector |
