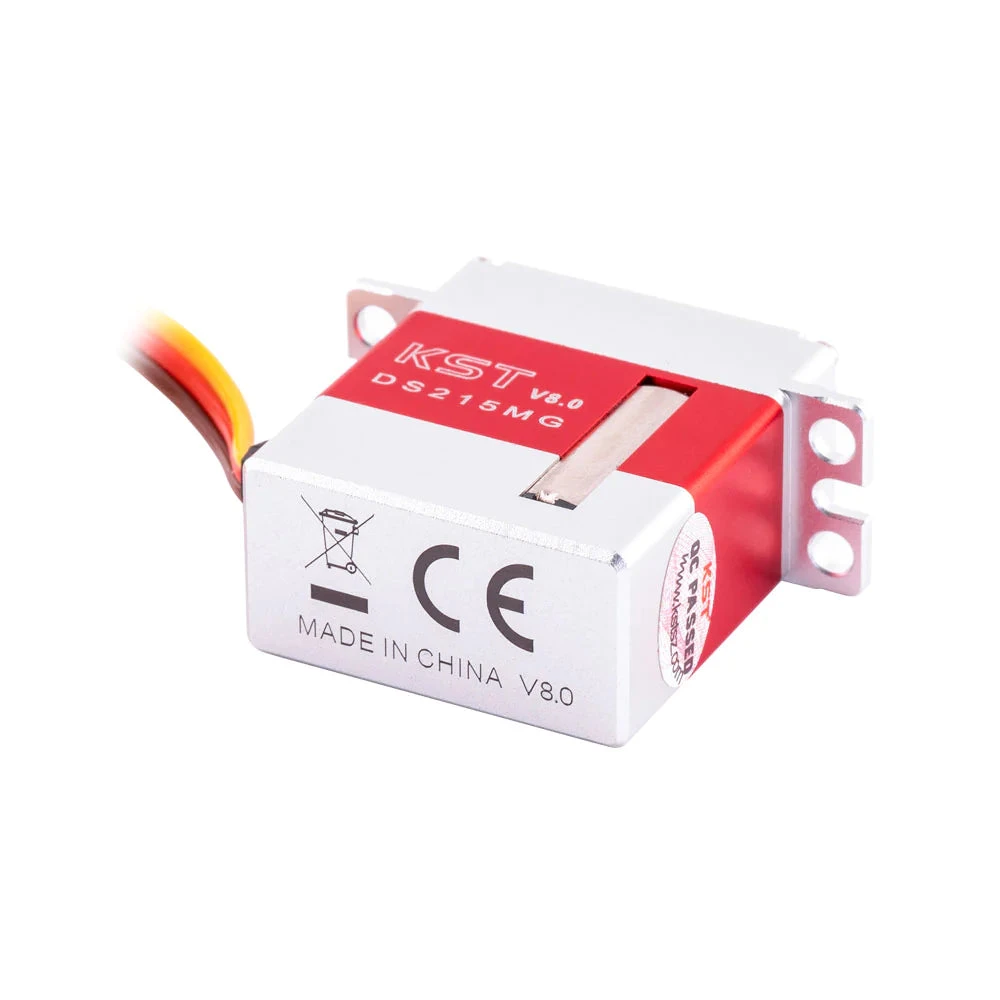

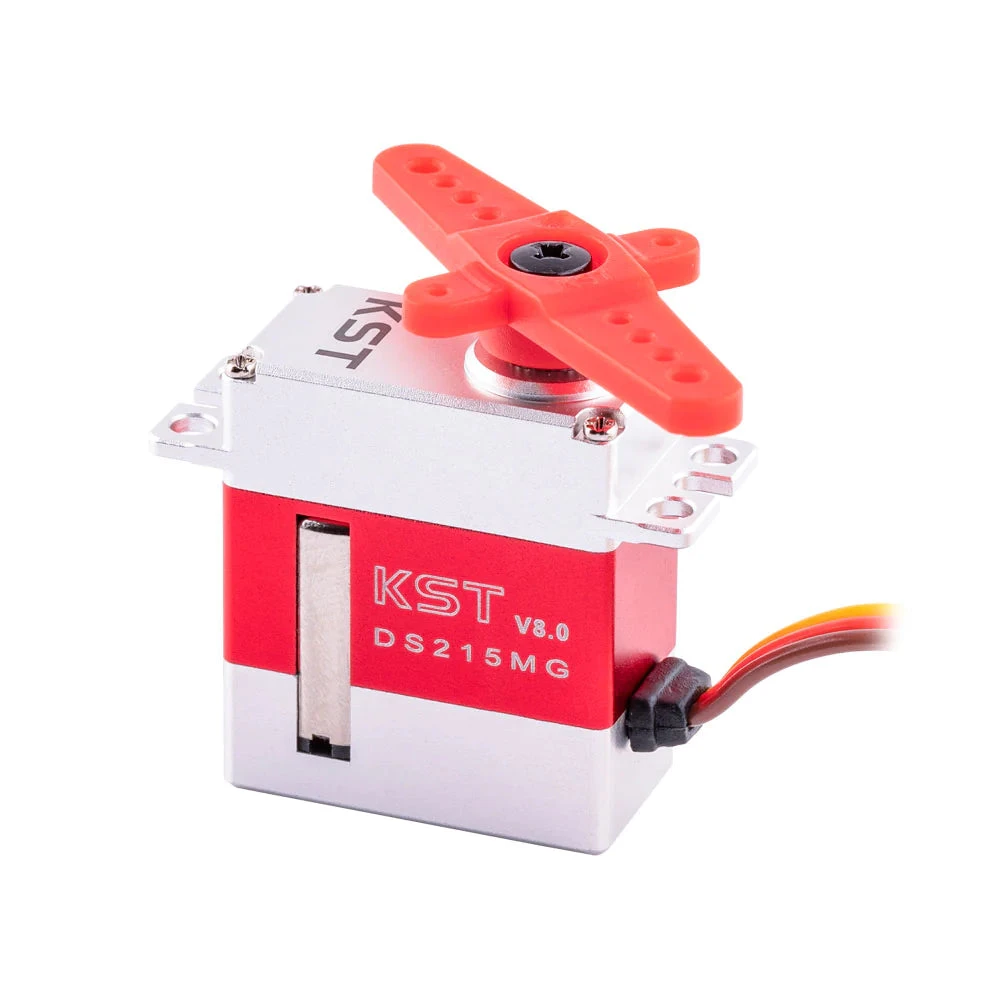

KST DS215MG V8.0 Digital Metal Gear Micro Servo

DS215MG HV servo is an amazingly powerful and fast metal cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 3.7 kg.cm of torque and a rotational velocity of 0.05 sec/60° it combines exceptional power with great precision and market leading speed.

Weighing only 20 g it is a great servo for glider elevator & rudder and heli cyclic & tail rotor. Also popular on RC EDF jets. The KST DS215MG HV is designed for use with a 2S LiFe or 2S LiPo battery. Do not use on a 5V supply. It is the high voltage replacement of the acclaimed KST DS115MG servo.

Features

• Compact and lightweight design
• Excellent torque and speed
• Designed for high-performance RC Gliders
• Excellent heat dissipation

Specifications

• Item: DS215MG Micro Servo
• Operating Voltage: DC6.0V-7.4V
• Size: 23*12*27.50mm
• Torque: [email protected] / [email protected]

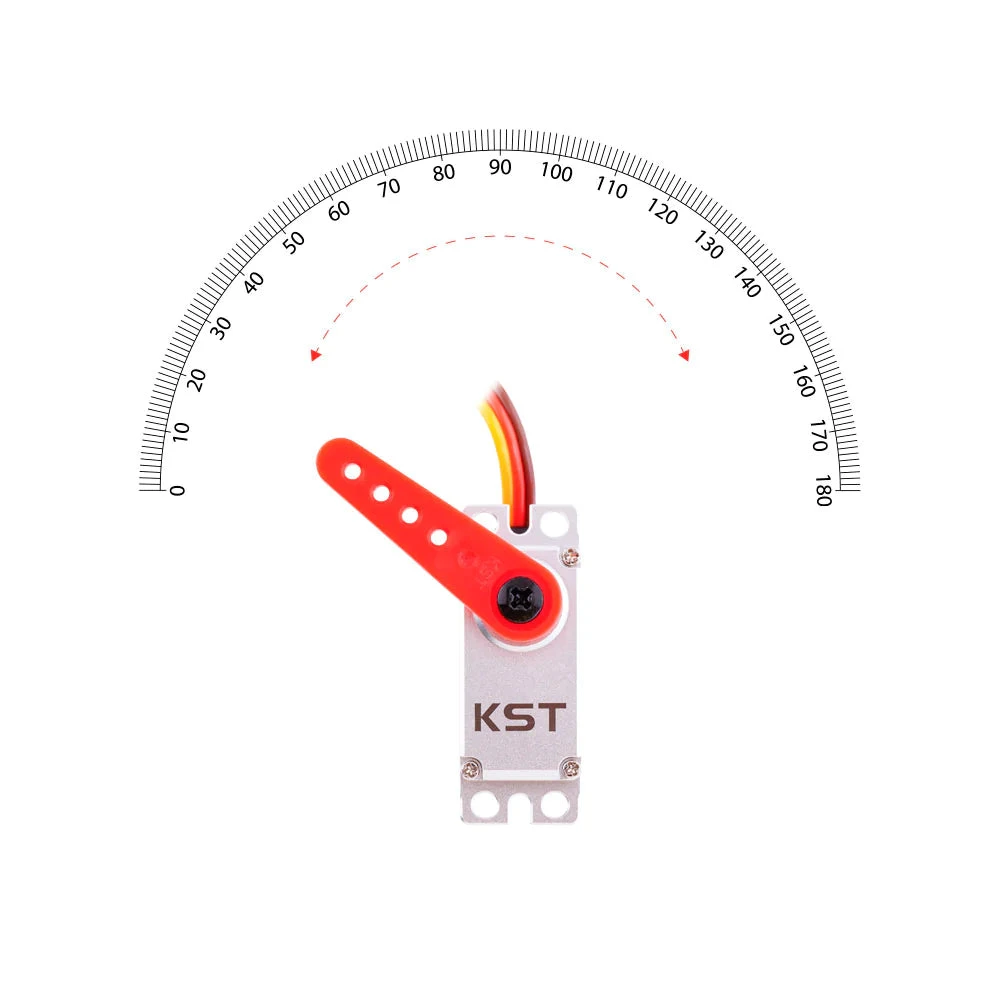

• Speed: 0.05sec/60°@7.4V / 0.06sec/60°@6.0V
• Weight: 20g
• Working Frequency: 1520us/333Hz, 800us-2200us
• Motor: Φ12mm Coreless
• Ball Bearing: 2BB
• Accessories: Metal Gear Set

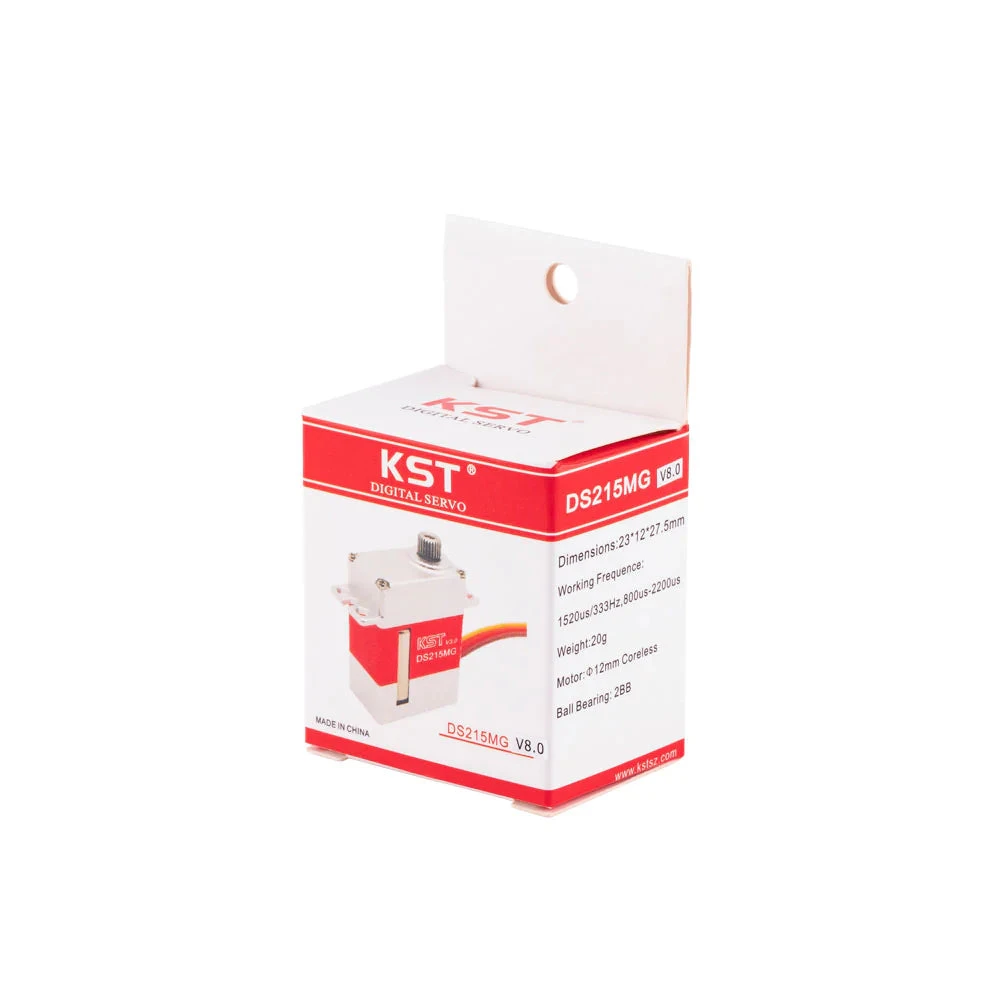

Package Including

• 1 * DS215MG V8.0 Digital Metal Gear Mini Servo Motor
• 1 Pack of Accessories

Download

• DS215MG Servos Technical Specification
