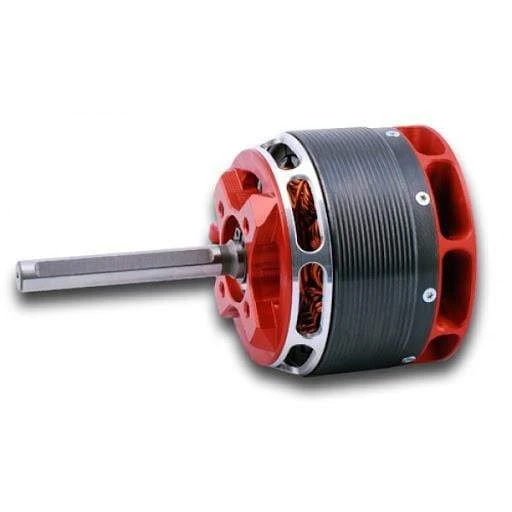

Kontronik Pyro 800-40 Brushless Motor

Special Order: Process 3 – 5 business days

Kontronik PYRO 800-40 Brushless motor is more than impressive: with an outside diameter of 63mm and a shaft diameter of 8mm, it suggests the enormous power of this KONTRONIK motor.

The PYRO 800 convince with a sophisticated design, bigger bearings and a screw-fixed motor can. This allows power transition of more than 5 kW continuous power. Together with the 8 mm shaft the PYRO 800 fits perfect for the big helicopters of the 770 / 800 class, and also for Scale and 3D helicopters.

Features:

• Neodym magnets, heat resistent up to 150 degree C
• Dedicated enameled wire, heat resistent up to 300 degree C
• Optimized metal sheets
• Optimized ventilation
• Radial fan
• Optimized magnet circuit

Specifications:

• RPM/V: 400
• RPM max: 25.000
• Continuous Power: 5.5kW
• Weight: around 500gr
• Shaft diameter: 8mm
• Poles: 14
• Inner resist.: 18mΩ
