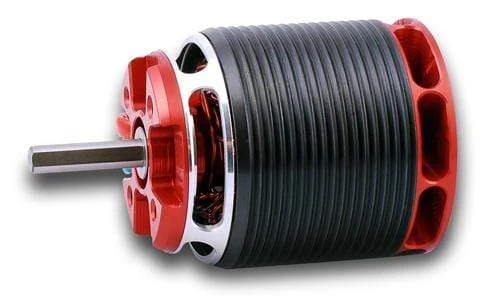

Kontronik Pyro 700-56 Brushless Motor

Special Order: Process 3 – 5 business days

If you need one of the best motors for your 600 or 700-size 3D RC helicopter, the Pyro 700-56 from Kontronik is for you.  The RPM in this outrunner motor suits 10S or 12S drives.  Given that the Pyro 700 is best used with a counter bearing, the motor is available with a 15mm longer shaft.  Astonishingly, this outrunner motor offers more than 3kW of continuous power.

The Pyro 700-56 has neodym magnets which are heat-resistant up to 150°C.  This motor also has a specialised wire which is heat-resistant up to 300°C.  The Pyro motor is well balanced and has optimised metal sheets and ventilation.

Features:

• Designed for 600 and 700-class RC helis
• RPMs adjusted to suit 10S and 12S drives
• 3kW of continuous power
• Neodym magnets heat-resistant up to 150°C
• Specialised wire heat-resistant up to 300°C
• Well-balanced
• Metal sheets and ventilation optimised

Specifications:

• Mounting bolt spacing is 30mm
• Mounting bolt holes are 4mm
• Motor Shaft: 6mm
• Motor Diameter: 50.8mm
• Motor Length: 61.5mm
• Weight: 375g
• Motor KV: 560
• Wattage: 300-4500W
• Max Continuous Current: 100A
• Rm: 0.024 Ohm
• Max RPM: 30,000
• Pole Count: 10
• Max. Efficiency: 91%
