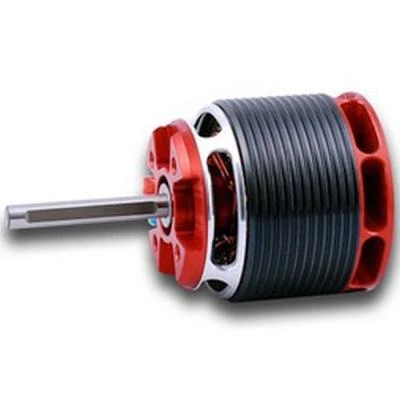

Kontronik Pyro 650-103L Brushless Motor Long Shaft

Special Order: Process 3 – 5 business days

Kontronik Pyro 650-103L Brushless Motor is an excellent choice for 550-600 class helicopters, offering incredible power output inside a lightweight package. With input voltage of up to 12s, the Pyro transmits up to 3kW of power during 3D flight.

Note: Alternate kV options are available, please inquire if you’d like to know more about ordering specific kV values.

Kontronik products offer some of the highest quality design and product finish available on the market, which is due to the engineering team being located in Germany. Prideful in their work, Kontronik motors include this trait in every single item manufactured.

Features at a Glance:

• Neodymium Magnets – Heat resistant up to 150 degrees Celcius
• Enameled Wire – Heat resistant up to 300 degrees Calcius
• Optimized Metal Sheets
• Optimized ventilation
• Radial Fan
• Optimized Magnetic Circuit

Specifications:
kV: 1030
RPM: 30,000 max
Output Power: 2kW
Weight: 300g
Shaft Diameter: 6mm
Shaft Length: 40mm
Pole Count: 10
Resistance: 12 mΩ Ri
