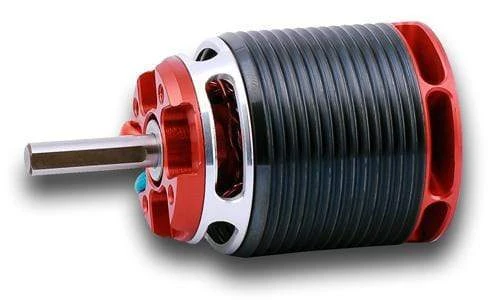

Kontronik Pyro 600-11 Brushless Motor

Special Order: Process 3 – 5 business days

Kontronik PYRO 600-11 Brushless Motor is specially designed for use in high performance models and was developed for the popular 500 sized helicopters. In this application the motor can unfold his full power and performance. The RPMs are suitable for applications up to 8S. To transmit its enormous power in each assembly situation the PYRO 600 comes with a 6mm shaft diameter. 2 kW continuous power in these helicopters allow 3D acrobatic flight you always have been dreaming of.

Features:

• Neodym magnets, heat resistent up to 150 degree C
• Dedicated enameled wire, heat resistent up to 300 degree C
• Optimized metal sheets
• Optimized ventilation
• Radial fan
• Optimized magnet circuit

Specifications:

• RPM/V: 1100
• RPM max: 28.000
• Continuous Power: 2kW
• Weight: around 220gr
• Shaft diameter 6mm
• Poles: 10
• Inner resist.: 12.5mΩ
