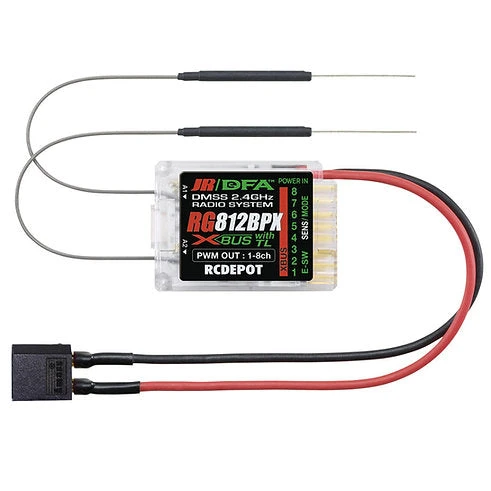

JR Deeforce RG812BPX 8 Channel Xbus RX W/ XT60

XBus compatible Diversity 8channel DMSS receiver w/Hybrid output port available
All output terminal to share both PWM & XBus.
XT60 connector equipped for 16AWG power cable out put from receiver voltage input.

2K servos compatible


DMSS 2.4GHz 8ch Power Receiver “RG812BPX” with E switch & XBus

• Dimension :14 x 31 x 42.5㎜
• Weight : 15g
• Receiving System : 8channel DMSS System with XBus
• PWM Output ch : 1ch – 8ch
• Operating Voltage : 4.5-8.5V
• Bidirectional communication : Xbus compatible
• Telemetry Module integrated
• Comply with E-switch
• Capabel to adopt one additonal remote antenna as an option.
• Fullrange receiver
• Full range telemetry capability.
• Instruction Video 1
• Instruction Video 2
• Instruction Video 3
• Instruction Video 4 (8AIL 4ELE 4RUD 4FLAP 3THRO)
