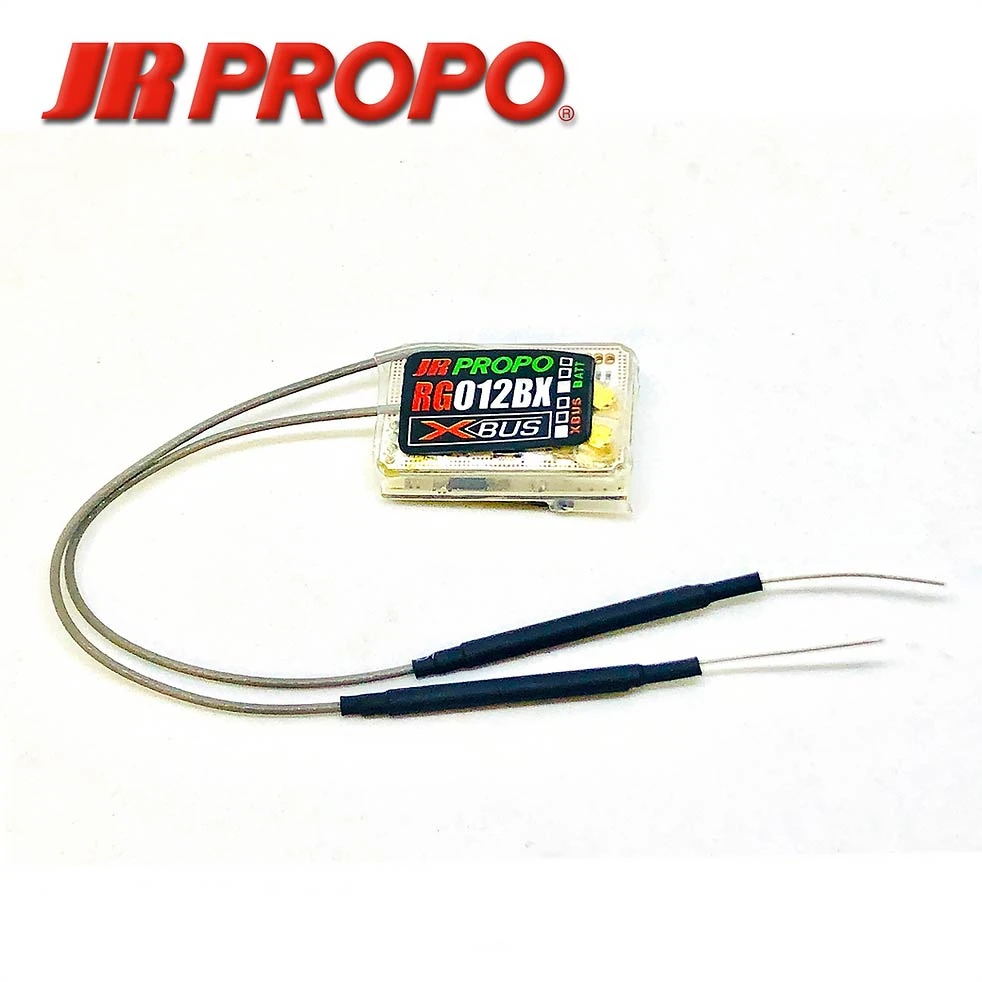

JR Deeforce RG012BX Xbus Receiver

A full-range receiver that is only a little larger than a postage stamp!





• With DMSS, cross modulation is restricted. This high sensitivity receiver is not easily affected by inter-modulationinterference.
• The telemetry system is capable of feeding back information such as receiver battery voltage.
• Brand new receiver diversity antenna system gives bullet proof signal reception like never before. These antennas are also used for synchronized transmission of telemetry data, providing improved signal back to your transmitter.
• The optional remote antenna adds an even greater layer of security.
• It is possible to confirm receiver operation by way of LED’s.
• EZ BIND System is integrated.



<Specification >

Poduct Name：RG012BX　
Receiving System：DMSS 2.4GHz
Weight：0.22oz / 6.3 g
Dimensions：：0.7 x 1.14 x 0.45 in / 18 ｘ12ｘ28.5 mm
Operation Voltage：4.5 – 8.5 V
Note：Full range・Diversity system
Coaxial antenna (Antenna : 25 mm / Coaxial : 105mm)



[ Manual ]
