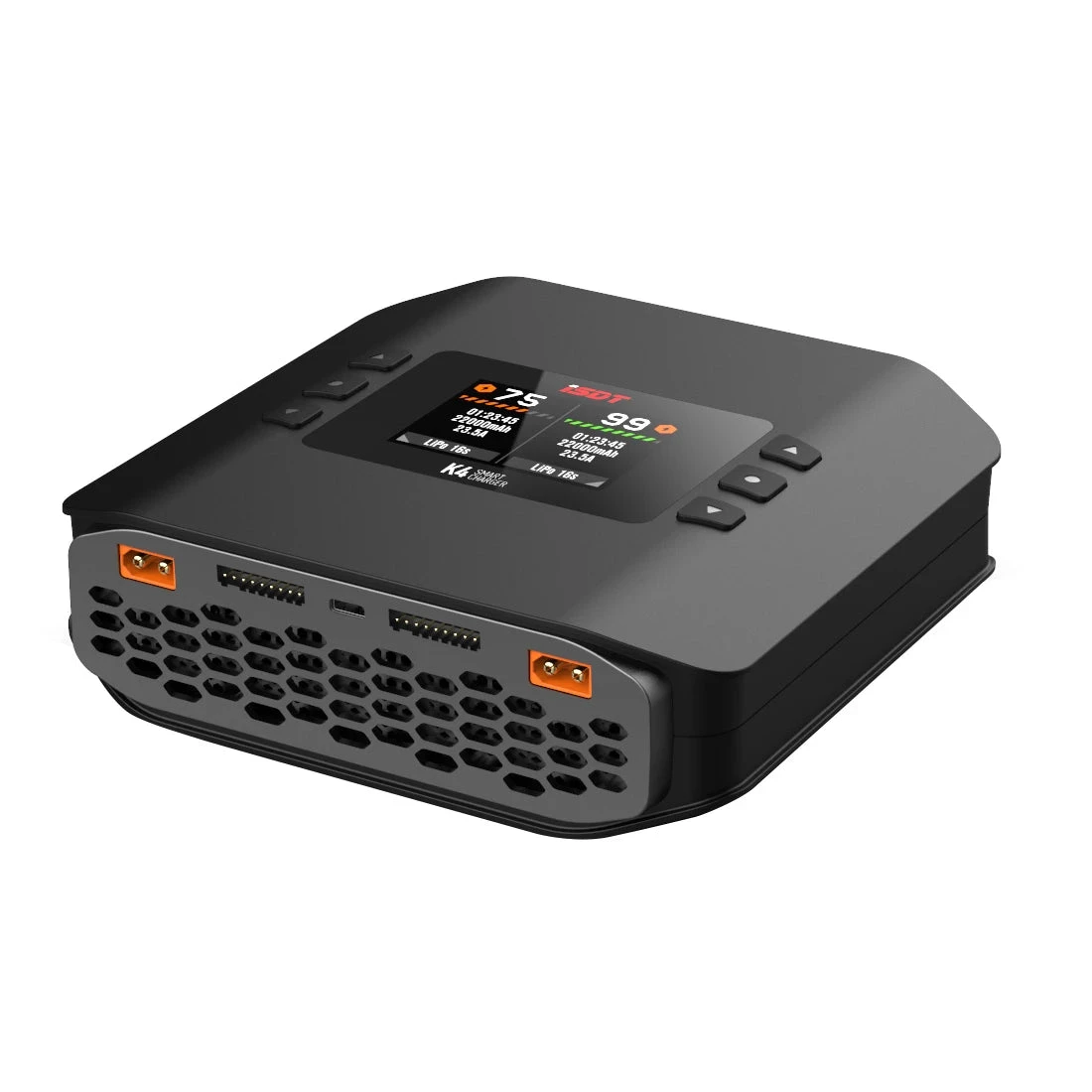

ISDT K4 Dual Channel AC/DC Smart Charger 2-8S 20A 600Wx2

AC/DC dual mode dual channel Smart charger

• Independent dual channel｜Support 1~8S lithium battery｜20A ×2｜600W ×2
• You can choose AC input or DC input to meet the needs of different scenarios. The output power in AC mode is 400W, and the output power in DC mode is 600W x2. All-round, continuous high-energy.
• Support 1~8S LiFe, Li Ion, LiPo battery, 1~7S LiHv, ULiHv battery, 1~14S Pb battery and 1~18S NiMH/Cd battery
• The maximum output power is 1200W, continuous, high-energy output.
• Both channels can independently support 1~8S batteries
• High Power Synchronous. Dual Channel, with Smart Charging.
• Smart High Speed Processor delivers parameter interfere to each port.
• Hassle Free with Maximum charging power up to 600W for single port.
• Intelligent battery information interconnection technology
• Fully compatible with BattAir’s innovative information interconnection technology, connects the battery through the XT60 interface, automatically recognizes the batterytype, and automatically obtains battery information parameters. Automatically matchsafe working parameters and optimize the charging algorithm.

Specification

• Model No: K4
• Input voltage: AC 100~240V / DC 10~34V
• Output voltage: DC 1~34V
• Max. input current: DC 45A
• Max. charging power: AC 400W / DC 600W ×2
• Max. Discharging power: 30W ×2
• Parallel charging power/current: 800W/35A
• Parallel discharging power/current: 60W/3A
• Supported battery types and cell count: LiFe,LiIon,LiPo 1~8S；LiHv,ULiHv 1~7S;
• Pb 1~14S；NiMH/Cd 1~18S
• Charging current: 0.2~20.0A ×2
• Discharging current: 0.2~3.0A ×2
• Balance current: 1.5A/Cell Max
• Abnormal voltage alarm: Support
• Incorrect cell count setting alarm: Support
• Support Working temperature: 0~40℃
• Storage temperature: -20~60℃
• Dimension: 176×183×57mm
• Weight: About 1230g



Note: Balance Boards NOT included or required. Batteries can plug directly into the (2) balance ports on the front of the charger. Looking at the front of the charger, the NEGATIVE pin is on the left hand side of each balance port. Simply align the negative balance wire on the battery with the left side of each balance port.
