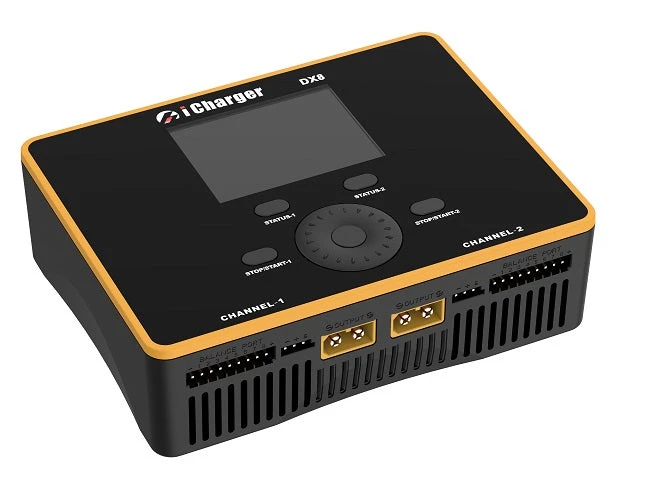

ICharger DX8

Manual download : HERE

Special Features

• The DX8 uses advanced Synchronous buck-boost DC/DC converter technology, high power, a high current and high-performance power conversion circuit. The maximum charge power capacity is up to 1600W, the maximum charge/discharge current of a channel is up to 30A, and two channels in Synchronous Mode are up to 50A.

• Each channel supports 8s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-25s NiMH/NiCd batteries and 1-15s Pb batteries.
• With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, and etc.)
• With type-c PD charging port, convenient for the user to charge mobile phones and PCs.
• Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.
• Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.
• This charger can save 64 parameters sets and support the data import/export to SD card.
• A 2.4” IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.
• Multi-discharge features: self-discharge, regenerative to input or discharge to another channel, and lithium battery extra expanding discharge.
• Supports measurement for internal resistance of battery offline and online. Measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
• DX8 has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
• Supports upgrading the hardware program by USB port or SD card. DX8 also supports the “Junsi Console” software and can display, plot and analyze the charge and discharge data by it.

Specifications:

Input voltage range: Maximum input current limit: Maximum charge/discharge current: Maximum charge power capacity: Maximum discharge power capacity: Maximum regenerative discharge power capacity: Maximum extra discharge power capacity: Maximum current drain for balancing: Type-C PD port: Support Battery type： Net weight: Dimension:

9—49VDC 65A(Channel 45A) 50A(Channel 30Ax2) 1600W(Channel 1100Wx2) 70W(Channel 45Wx2) 1600W(Channel 1100Wx2) 2100W (Channel 1050W@35V/30A) 4A(Channel 2Ax2) 5V/3A， 9V/2A， 12V/1.5A LiPo, Lilo, LiFe, LiVH, LTO, NiZn, NiMH, NiCd, Pb 440g 97.5×128.5×40mm

Package Includes:

– iCharger DX8 x 1pc

– Drive Disc x 1pc

No any hardware includes
