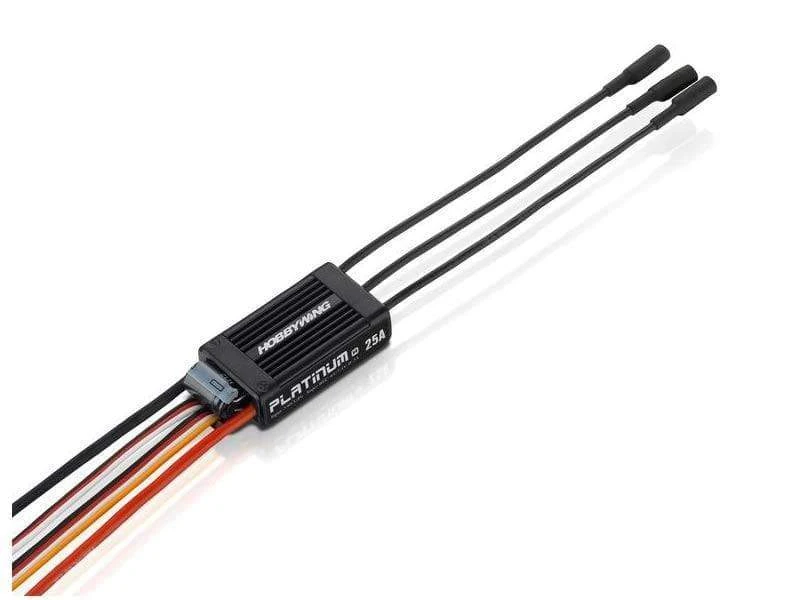

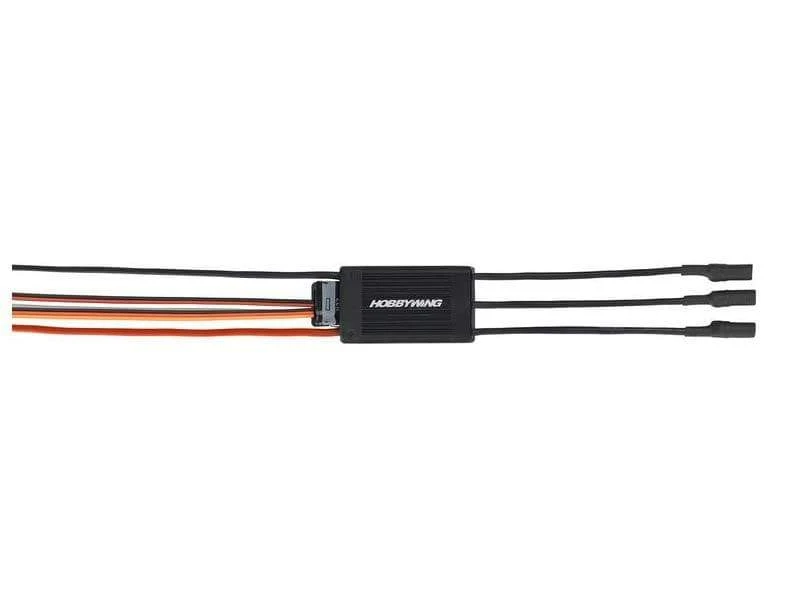

HobbyWing Platinum 25A V4 ESC
Original price was: $29.99.$20.99Current price is: $20.99.
- Safe Payments, the Smart Choice
- Nature-friendly materials, 100%.
- Top-Notch Quality
- Safe Shopping Guaranteed
Perfect for Oxy heli 2 upgrade
- 3-6S LiPo
- Built-in BEC 5V-8V (default 5V)
- Firmware upgrade and programming via WiFi Express module or LCD program box (purchase separately)
| Model | Platinum 25A ESC V4 |
| Input Voltage | 3-6S LiPo |
| Cont./Peak Current (10s) | 25A/40A |
| Application | > 450 heli or a small fixed wings aircraft |
| (Switch-mode) BEC | Switch Mode:6V/7.4V,3A |
| Separate Programming Port | For connecting LCD Program Box/WIFI Express |
| Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) | White Throttle Signal Wire/Red & Black BEC Output Wires/ Yellow RPM Signal Transmission Wire |
| Input Wires | Red-16AWG-100mm*1/Black-16AWG-100mm*1 |
| output wires | Black-18AWG-75mm*3 |
| Output connectors | 3.5mm Gold Connectors (Female) |
| Weight/Size | 27g / 47x22x10mm |
Download
Users_manual_Platinum25A.pdf HOBBYWING Governor function explained (PDF)
