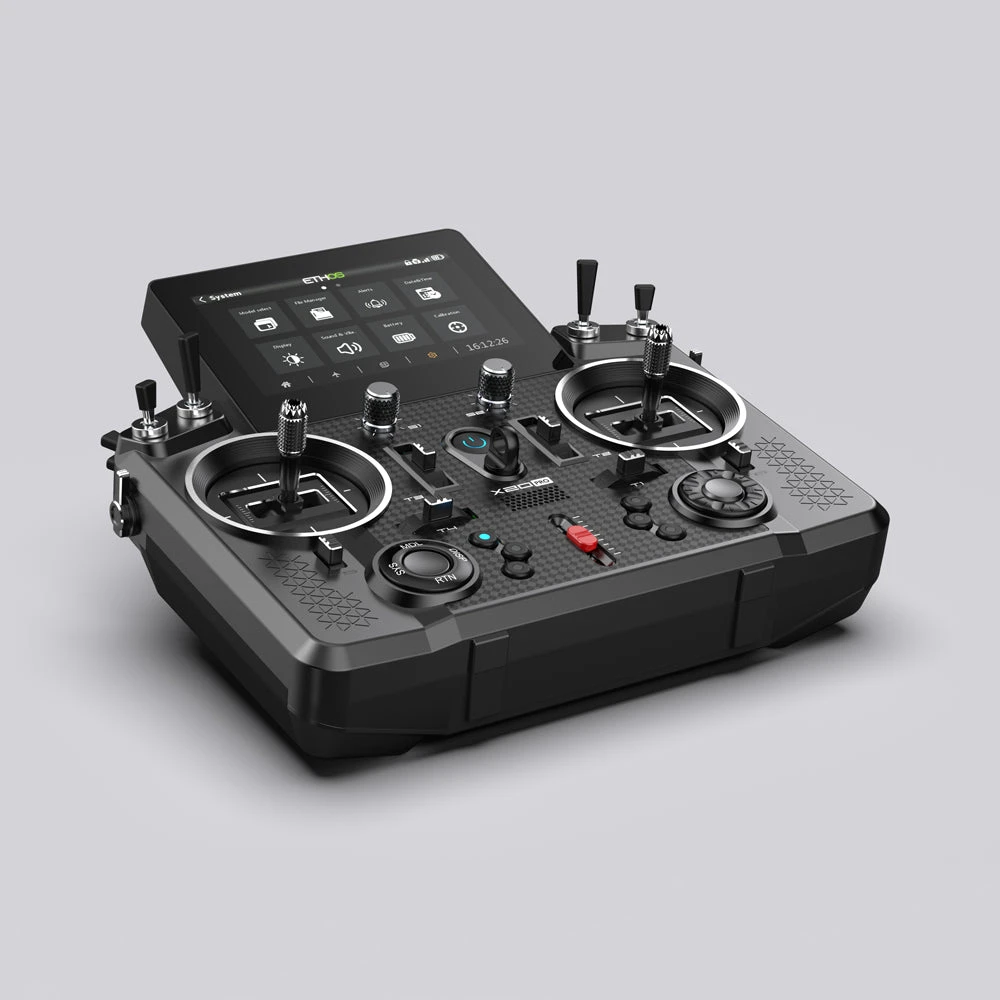

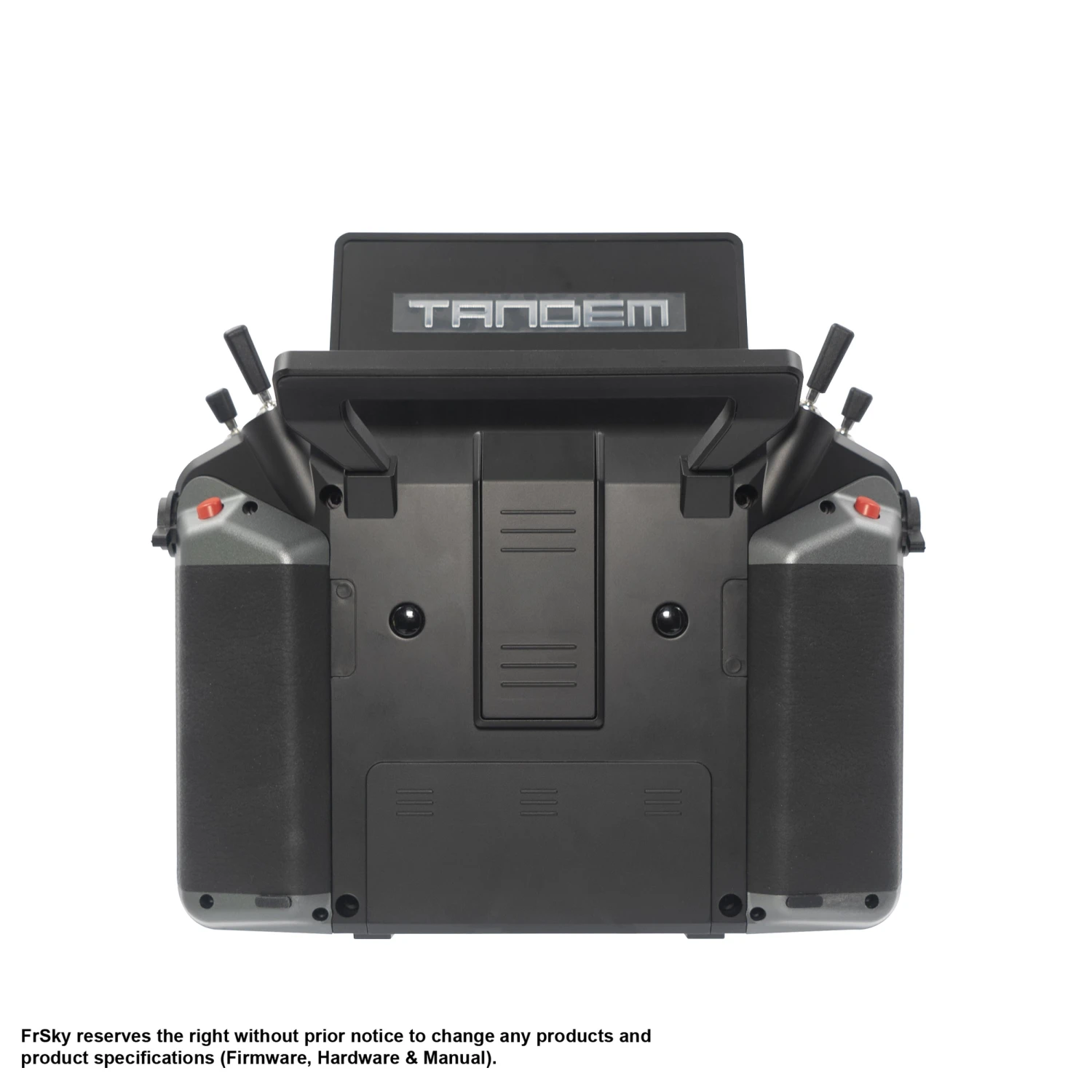

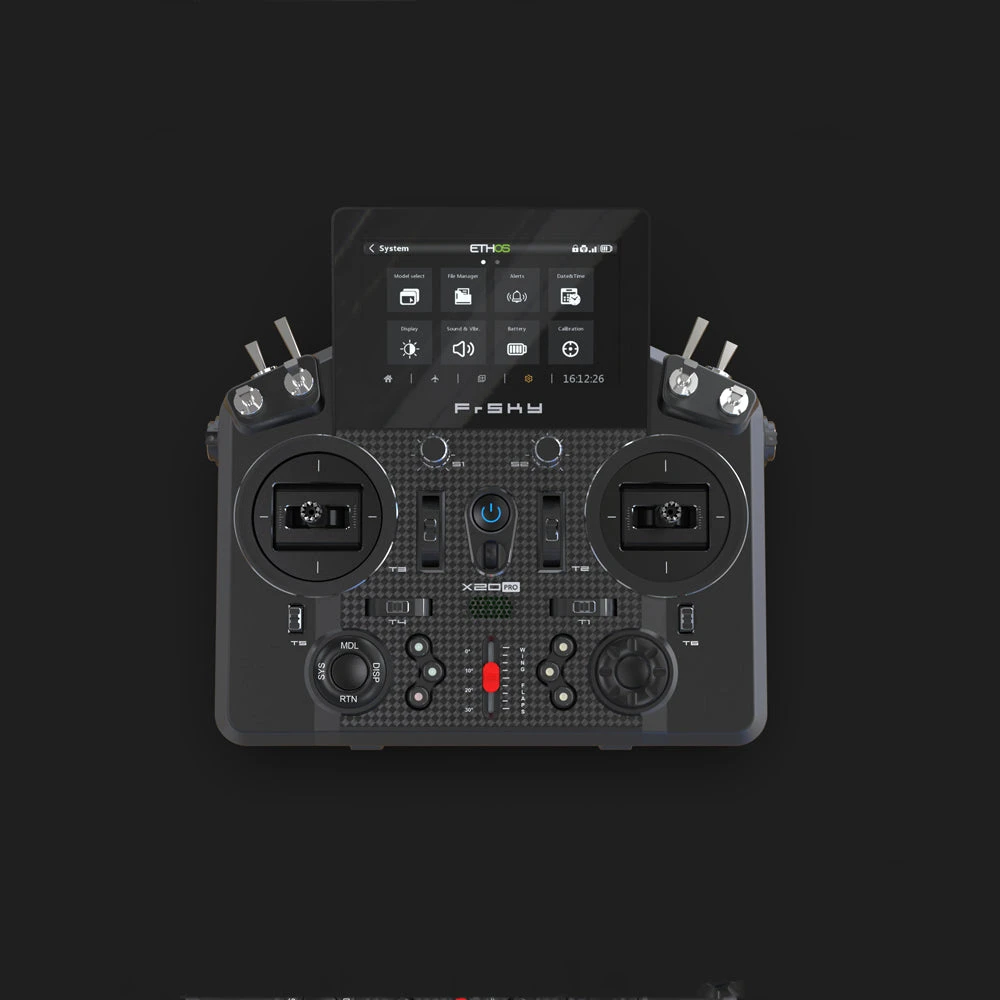

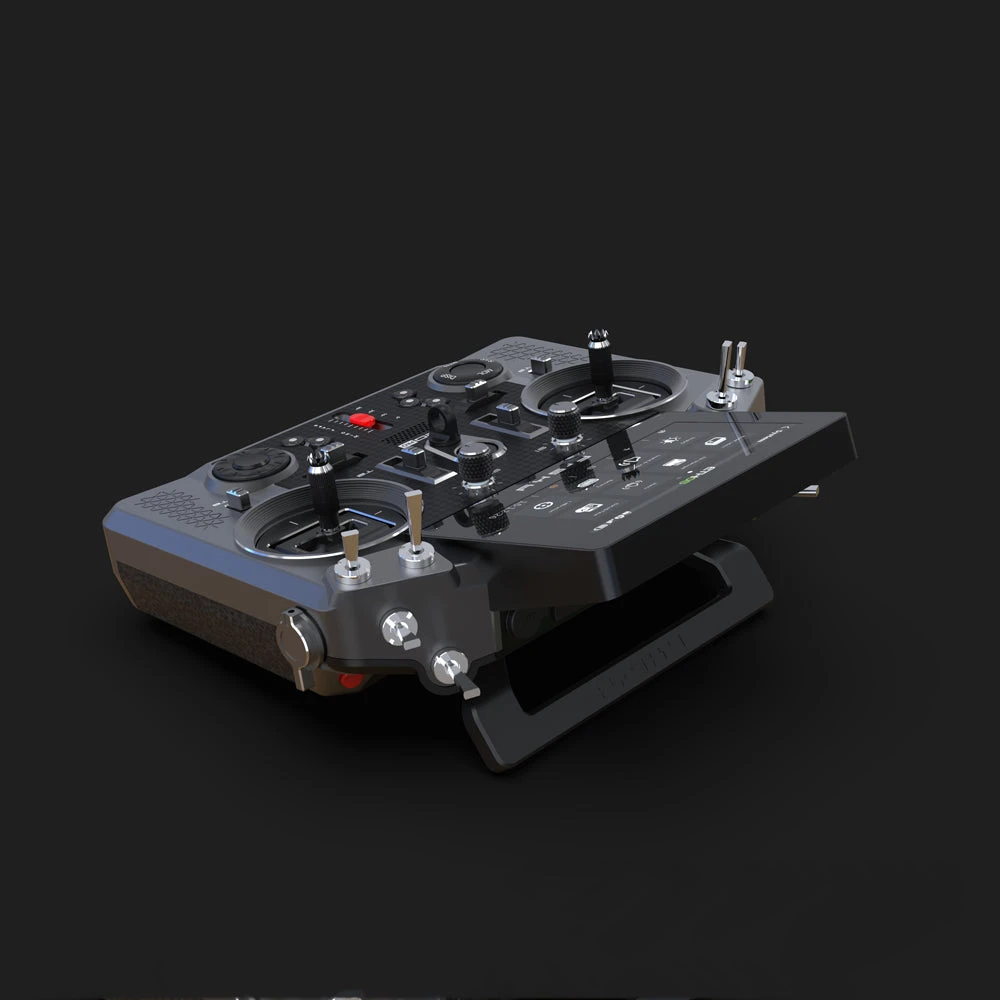

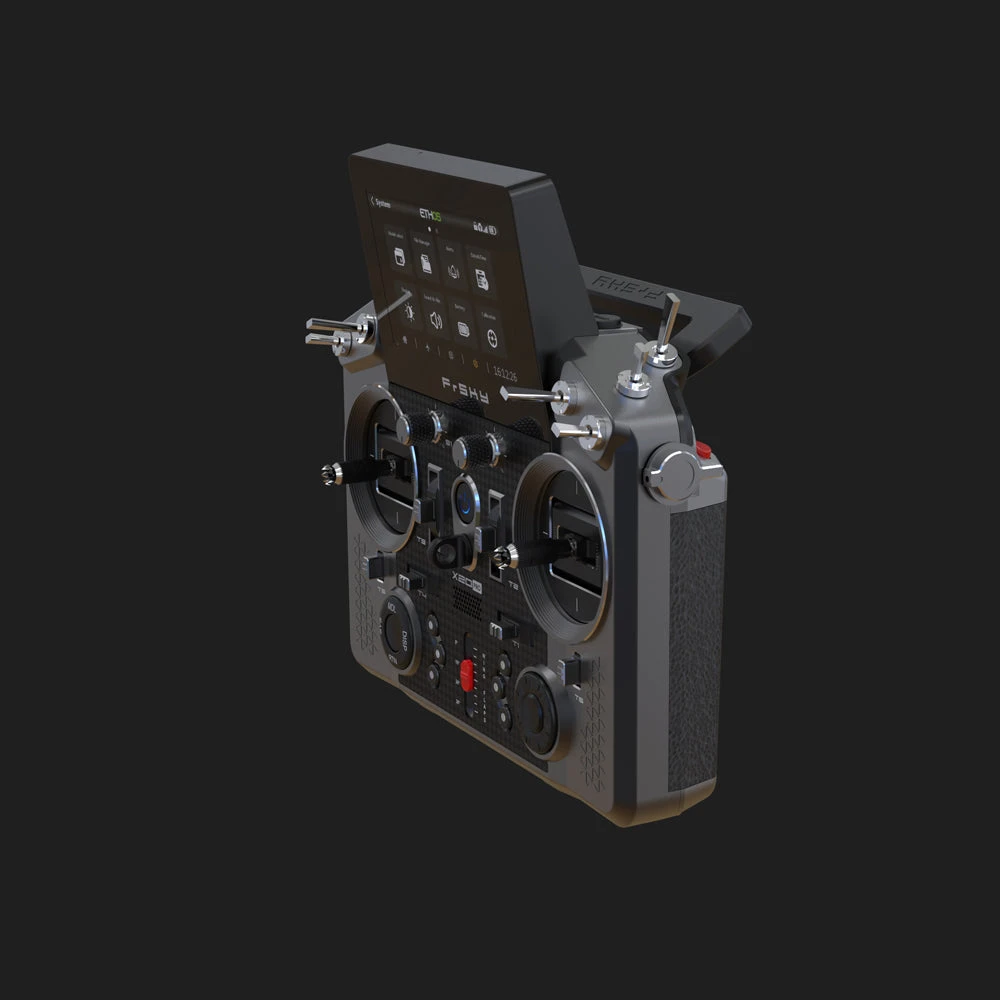

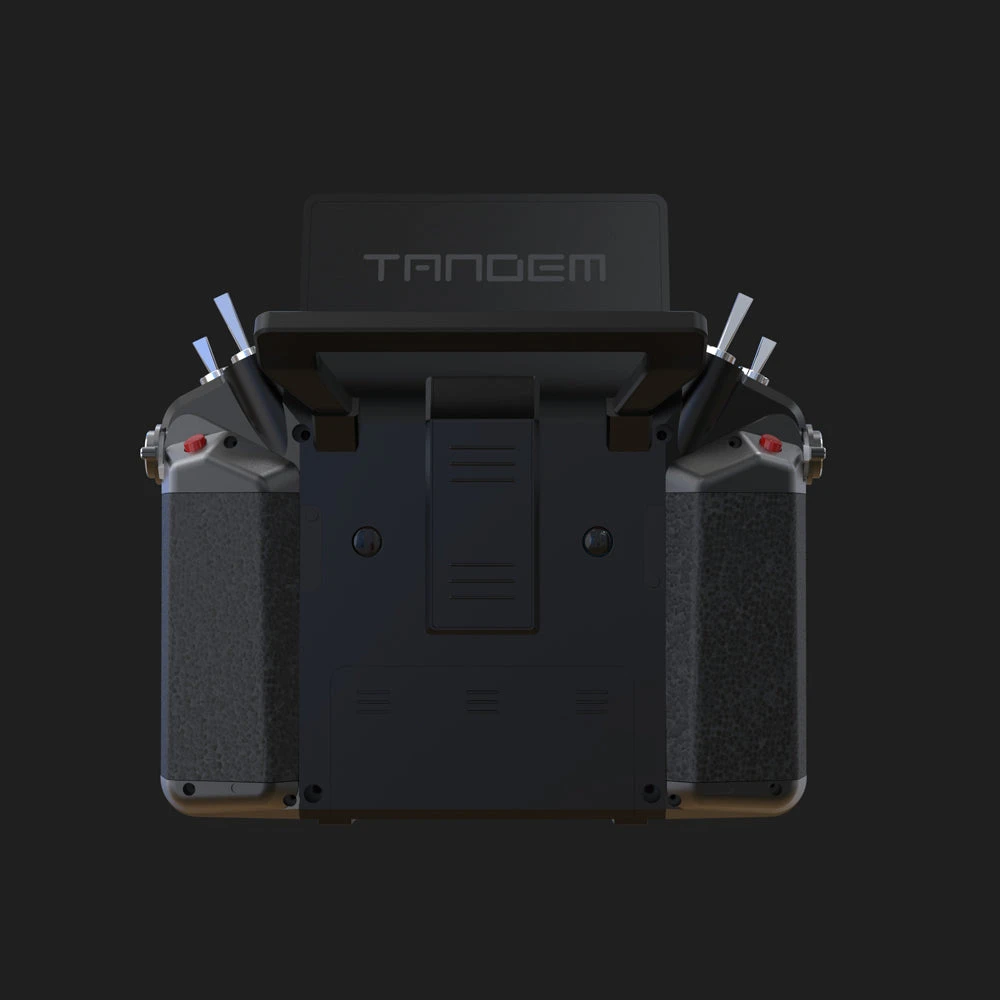

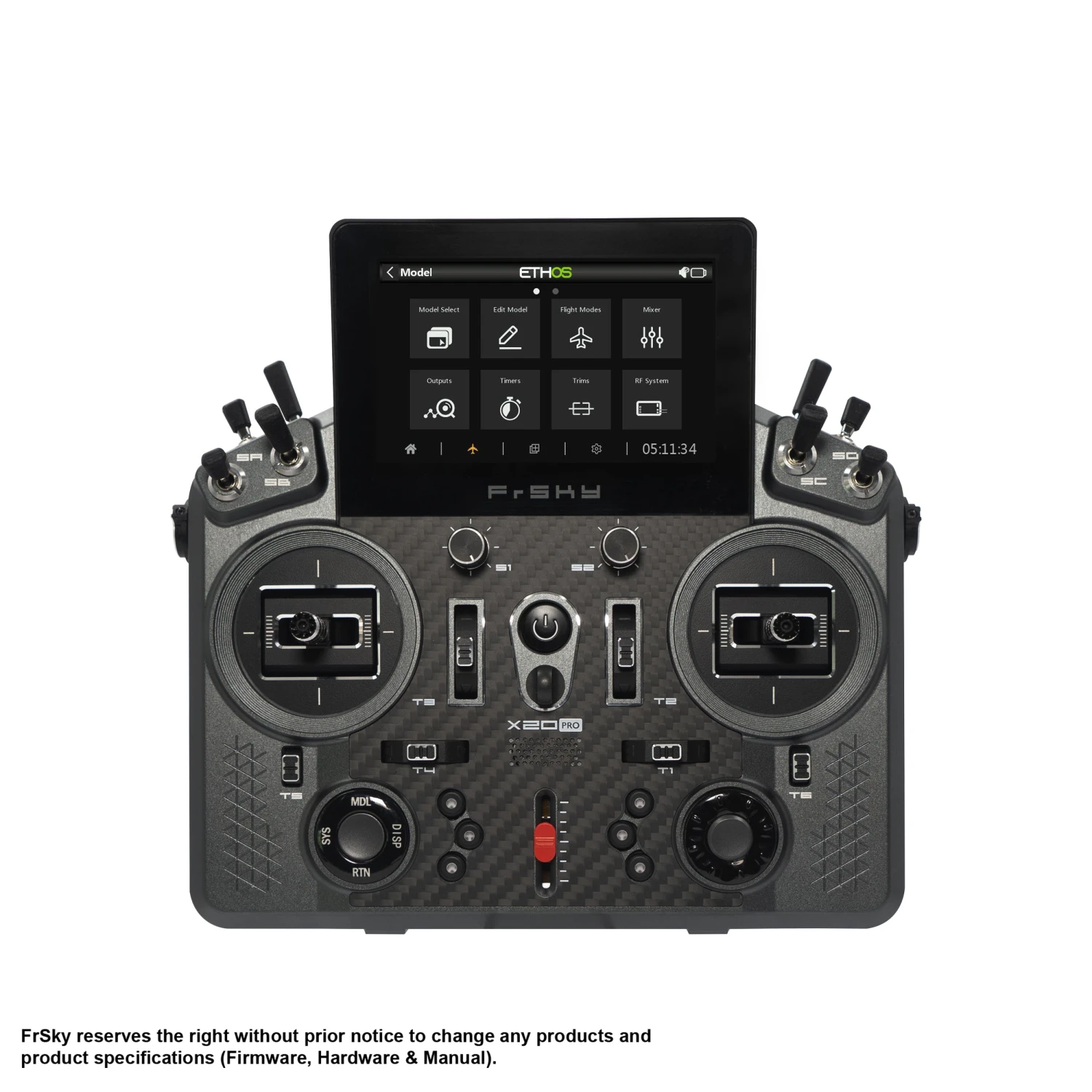

FrSky Tandem X20PRO Transmitter – Combo



TD-ISRM PRO RF PERFORMANCE

With solid performance based on the dual-band 900M/2.4G RF signal link with multiple operating combinations of RF modes, the TANDEM PRO continues to break new ground in RF performance. The X20 PRO added the dual 2.4G TW RF mode and supports simultaneous activation of both TW and ACCESS R9 modes. In this configuration, TW receiver and ACCESS R9 receiver can be connected via the SBUS IN/OUT ports to achieve redundant backup. This RF signal connection method allows for the simultaneous use of three different RF links in RC applications. This further enhances the RF signal’s reliability, particularly in scenarios involving long-dis-tance RC operations.

COMPREHENSIVE FUNCTIONAL INPUTS & SOLID-QUALITY METAL PARTS

The X20 PRO optimizes and integrates the functional inputs of the TANDEM series models. Building on the foundation of X20/X20S, it adds 2 extra trims, allowing for more precise tunings during the operations. The levers on both sides of the transmitter’s slider support customizable positioning of the center toward, catering to different users’ habits and preferences. Additionally, at the index finger position on the left and right sides of the handle top of the X20 PRO, one self-locking button is set on each side for users to flexibly do application settings for various scenarios.
The main body of the X20 PRO is constructed with a all CNC-machined metal material, and the central panel incorporates genuine carbon fiber material. The primary input components, including trim caps, slider levers, and knobs, are all made from metal, offering rugged quality and enhanced durability for outdoor use.

BUILT-IN MASS STORAGE & TEXT TO SPEECH FUNCTION

In order to save the user the trouble of deciding the storage capacity, X20 PRO comes with a built-in 8GB flash storage that offers plenty of file storage to meet all of your radio’s storage needs, along with high data transmis-sion speed.
Thanks to the upgraded storage feature, the TTS (Text-to-Speech) function of X20 PRO can quickly and conveniently convert typed input English words into spoken speech. This enables the ETHOS system to more flexibly match the triggered operational status using generated speech file when specific functions are activated, and to alert clearly outdoors with the digital power amplifier module.

Features:

• Built-in TD-ISRM Pro Dual-Band Internal RF Module
  • 900M/2.4G Dual Band TD Mode
  • Dual 2.4G TW Mode
  • ACCESS 2.4G & ACCESS R9 Modes
  • 2.4G ACCST D16 Mode
• Super Low-Latency and Long-Range Control with Telemetry
• (*Up to 50 to 100KM range and down to 4ms end-to-end latency)
• 800×480 Resolution Outdoor High Brightness Touchscreen
• 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
• CNC Machined Metal Shell & Carbon Fiber Center Panel
• 2 Self-Locking Shoulder Buttons
• 2 Knobs & 6 Trims with All-CNC Metal Caps
• 2 Angle Adjustable All-CNC Metal Slider Levers
• All CNC High-Precision Hall-Sensor MC11 Gimbals with 10 Ball-Bearing
  • Adjustable 45° / 60° stick travel (Additional Travel Limiter Tool is required)
  • 8° rotatable panel
• Built-in 8GB Flash Storage
• Text to Speech (TTS) Function
• Digital Audio Power Amplifier
• Built-in 6-axis Gyroscope Sensor
• High-Speed PARA Wireless Training System
• Built-in Audio Wireless Module (Compatible with Bluetooth Audio Device)
• Haptic Vibration Alerts and Voice Speech Outputs

Specifications:

• Dimension: 200.5*213*84mm (L*W*H)
• Weight: 949g (Battery Excl.) / 1080g (Battery Incl.)
• Operating System: ETHOS
• Internal RF module: TD-ISRM PRO
• Number of Channels: Up to 24
• Built-in Flash Storage: 8GB
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
• Operating Temperature: -10°C~60°C (14°F~140°F)
• Operating Current: [email protected] (typ.)
• Charging Current: ≤1A ±200mA
• Recharge System for 2S Li-ion Battery (USB Type-C Interface)
• USB Adaptor Voltage: 5V+0.2V
• USB Adaptor Current: >2.0A
• Backlit Touchable LCD Resolution: 800*480
• Compatibility: ACCST D16 & ACCESS & TD & TW receivers
• Lite Type External Module Bay

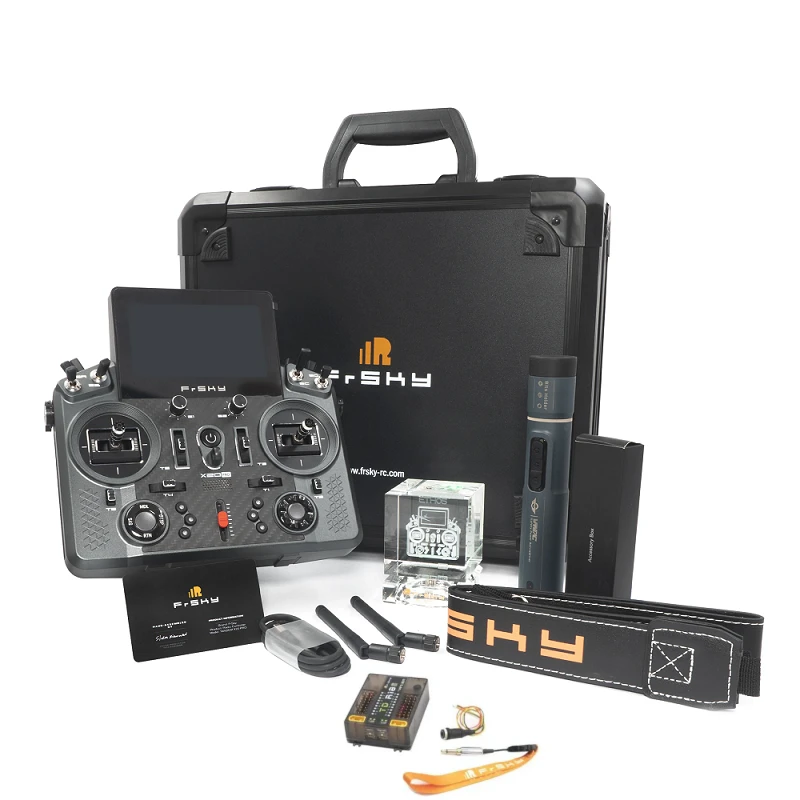

The TANDEM X20 PRO initial release combo includes 1pc of each:

• Tandem X20 PRO Transmitter with Unique Serial Number Card（Qualified and Signed by QA Senior Engineer ）
• TD R18 Dual-Band Receiver
• Audio Jack Pin Type Switch
• VANTAC Electric Screwdriver Set
• Aluminum Carrying Case (Black)
• Extra Gift (Laser Etched X20 PRO Acrylic Cube)
