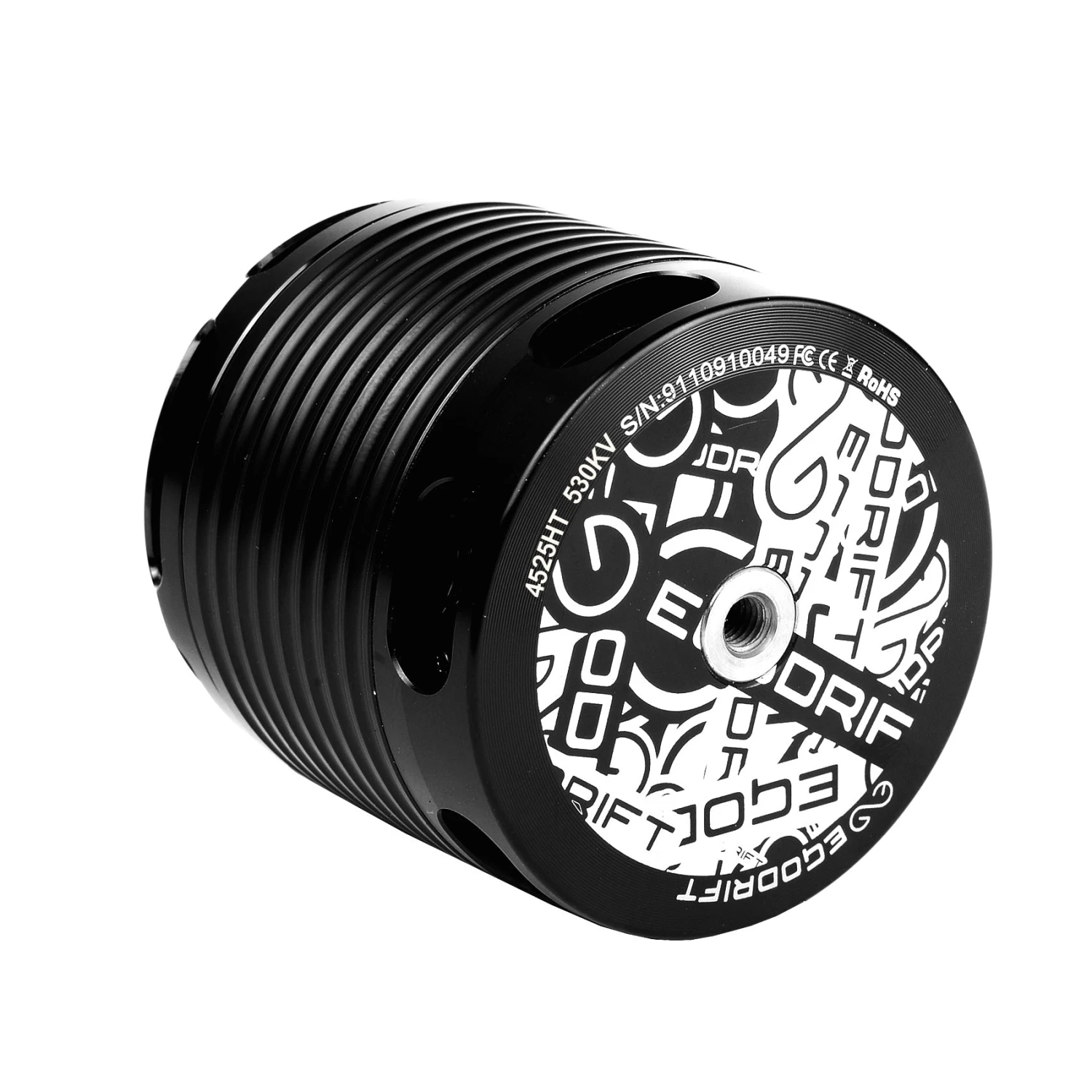

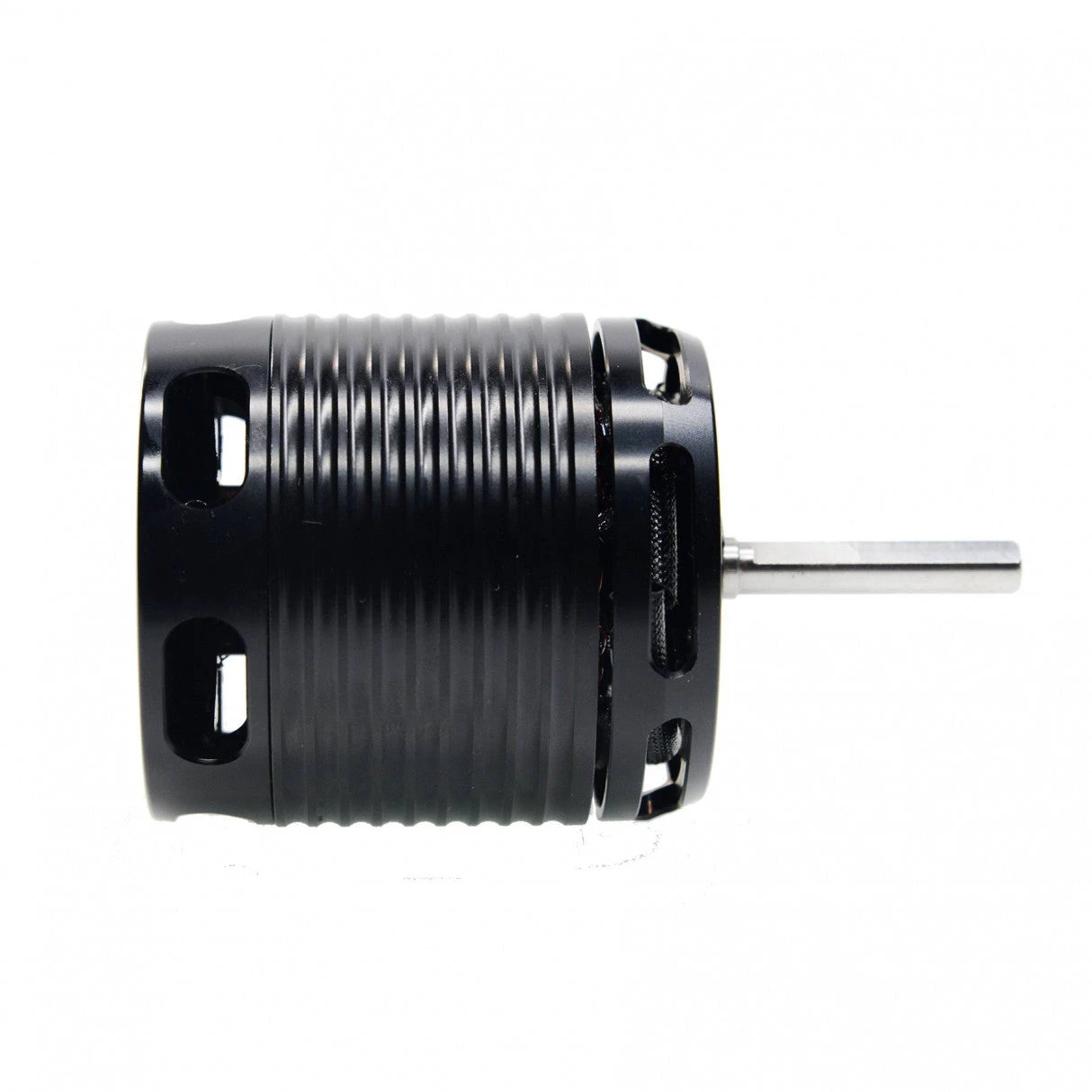

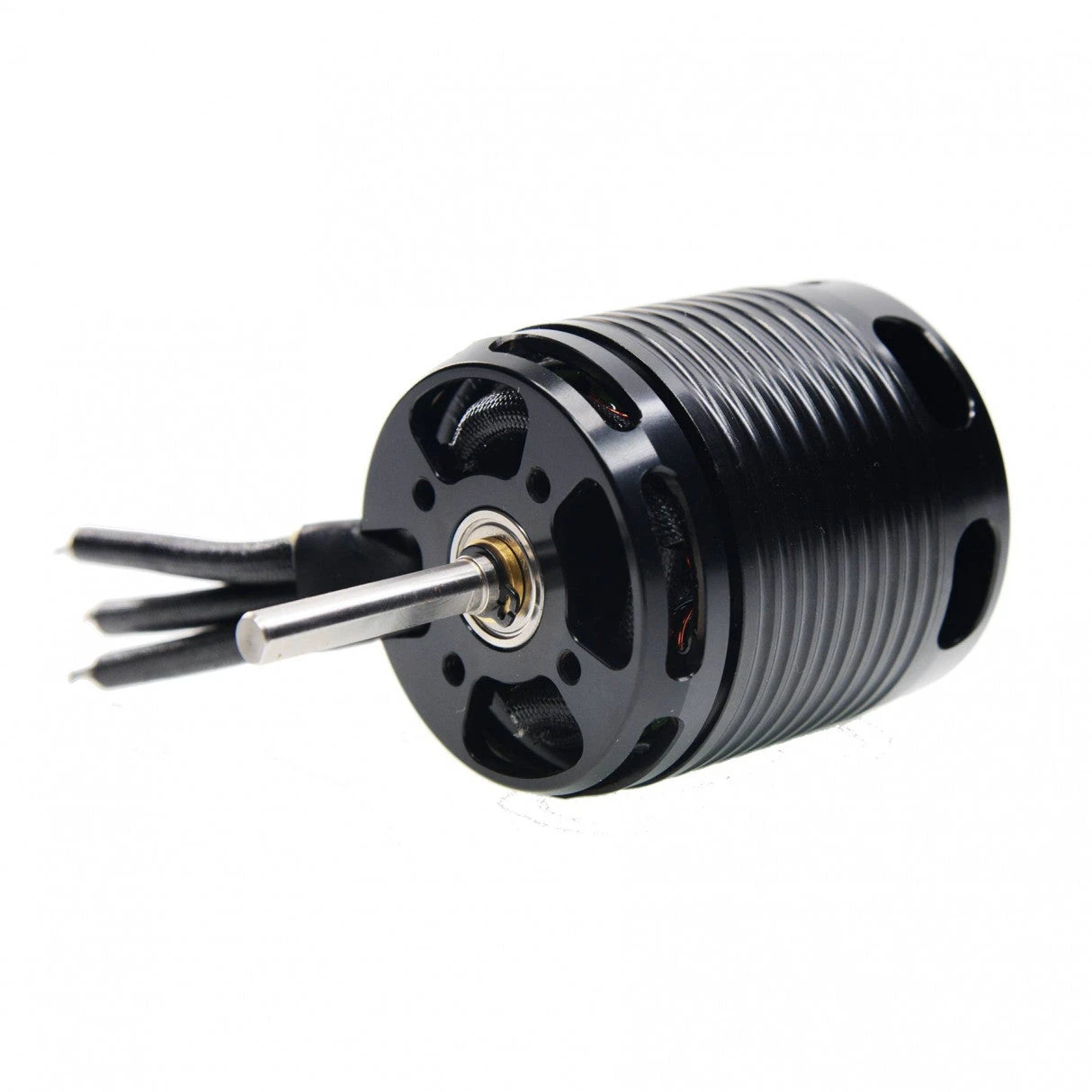

Egodrift Tengu 4525HT / 530kV Motor (6x35mm Shaft) – Jason Russell Edition

EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4525HT Tengu comes with a kV rating of 530kV and fits all 700-800mm class helicopters, such as the XLPower Spectre 700, Goblin 700, T-Rex 700, Align 700, Mikado 700 or Gaui 700 (and various other models).

All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.

External length of the shaft: 35mm

• Manufacturer: EGODRIFT
• Stator size: 4525
• Motor configuration: 12N10P
• Motor weight: 467g (16.47oz)
• Wire colour: Copper
• Motor wire type: High temperature copper wire
• Motor wire: 1.3mm
• Motor kV: 530 kV
• Motor shaft: Hardened Steel
• Shaft diameter: 6.0 mm
• Mounting hole pattern: 4xM4(30)
• Laser Design: EGODRIFT Stickerbomb
• LiPo cells: 12S, 14S
• Stator diameter: 45 mm
• Stator height: 25 mm
• Stator lamination: 0.15 mm (+)
• Body Length: 55.58mm (2.19 inch)
• Diameter: 56.40 mm (2.22 inch)
• Idle current: 3.8A
• Maximum Current: 140A (Peak: 250A / 2 seconds)
• Maximum Power: 6720W (Peak: 12000W / 2 seconds)
• Internal resistance: 11.5 mOhm
• Connection: Wire / Gold plated plugs
• Designer: Yutao Zou
