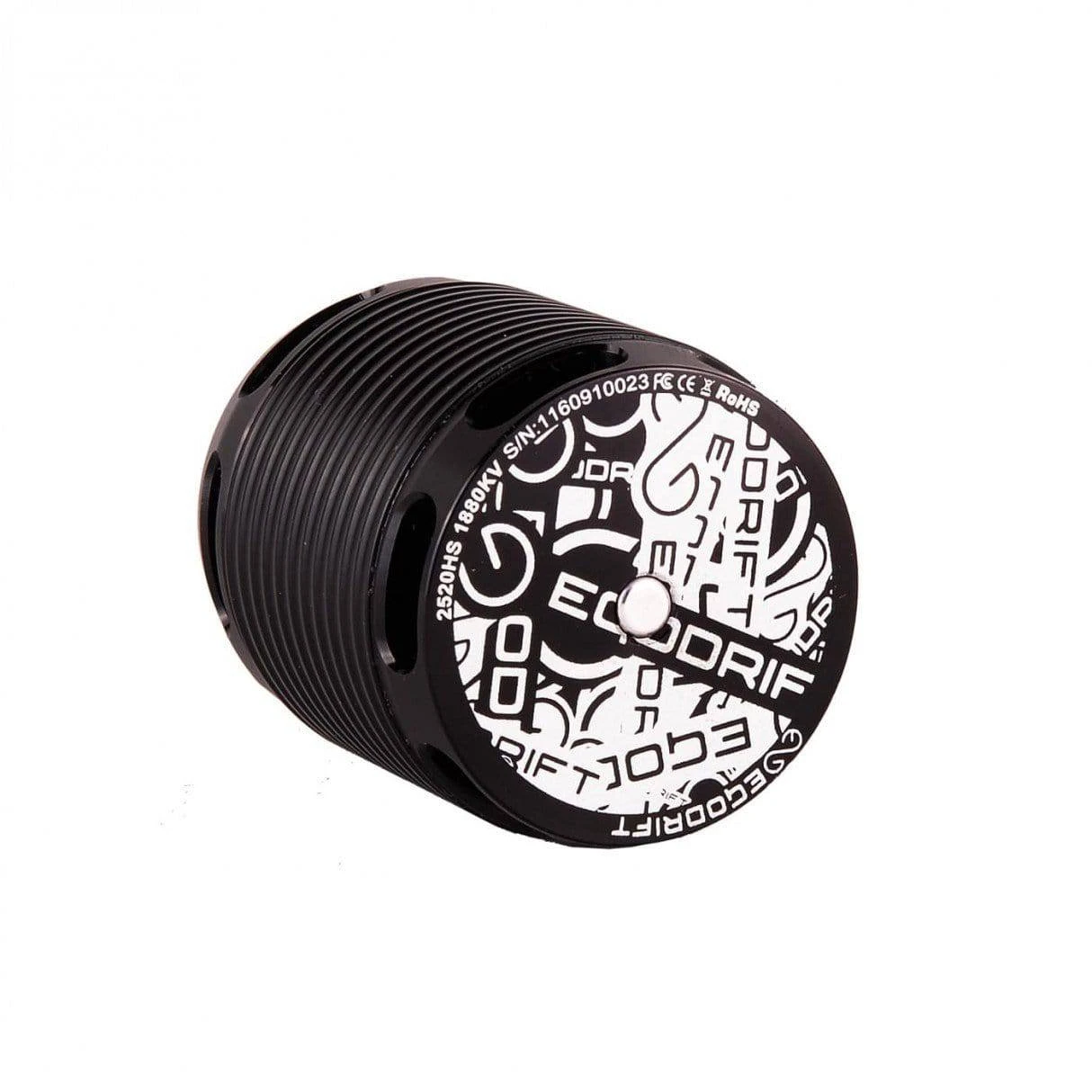

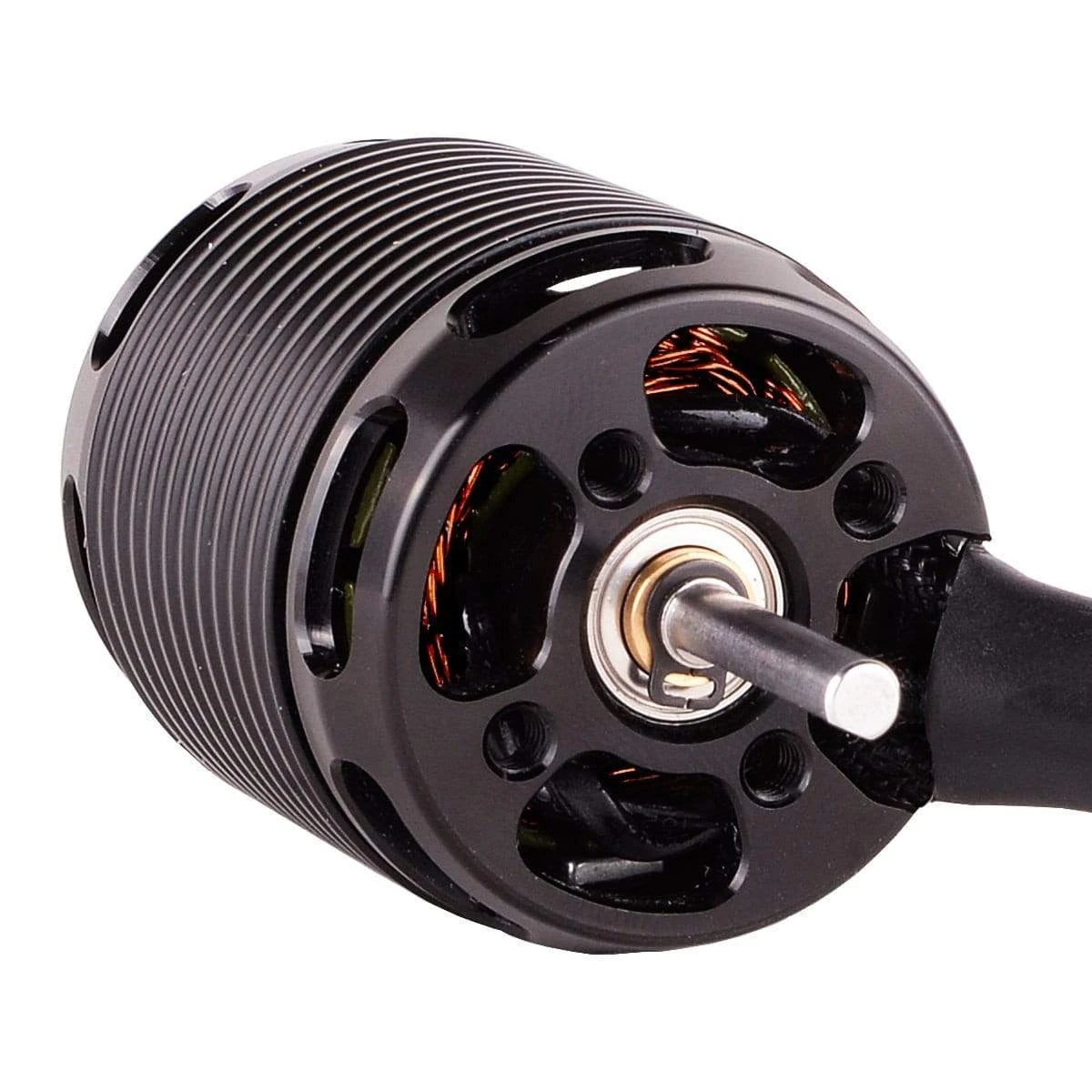

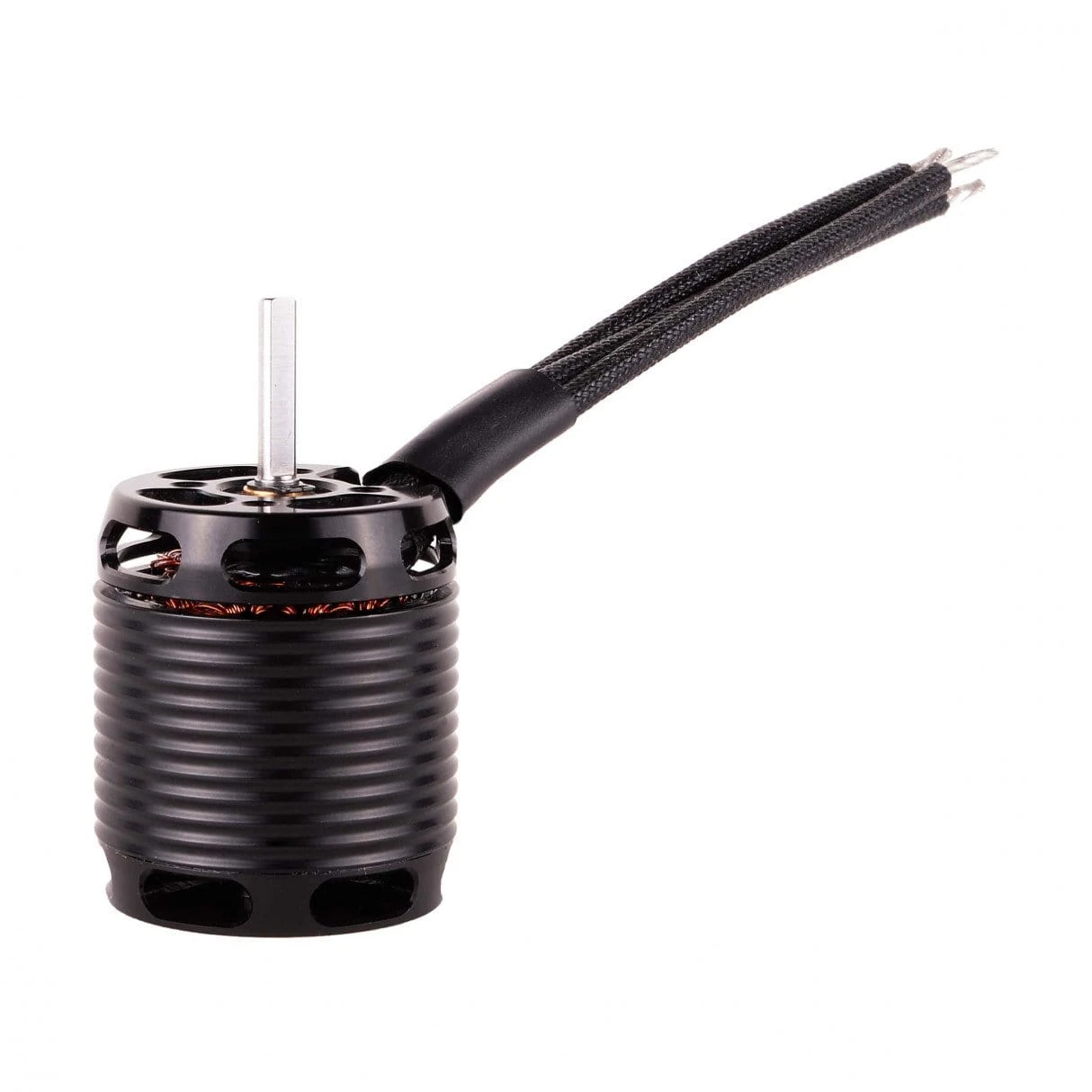

Egodrift Tengu 2520HS / 1880kV Motor
Original price was: $89.99.$62.99Current price is: $62.99.
- Safe Payments, the Smart Choice
- Nature-friendly materials, 100%.
- Top-Notch Quality
- Safe Shopping Guaranteed
EGODRIFT Tengu high-performance brushless motors for RC heli are the result of one year of testing and development. The 2520HS comes with a kV rating of 1880kV for 6S LiPo batteries and is the perfect choice for your 450 sized helicopter model.
Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb print, to add the finishing touch to your 450 class heli build.
Each motor comes with mounting screws and 3 pairs of gold bullet connectors.
SPECIFICATIONS
- Manufacturer: EGODRIFT
- Stator size: 2520
- Motor configuration: 12N10P
- Motor weight: 107g
- Base Colour: Black
- Wire colour: Copper
- Motor wire type: High temperature copper wire
- Motor wire: 0.38mm
- Motor shaft: Hardened Steel
- Shaft diameter: 3.5 mm
- External shaft length (mm): 17 mm
- LiPo cells: 6S
- Motor kV: 1880 kV
- Stator diameter: 25 mm
- Stator height: 20 mm
- Stator lamination: 0.15 mm (+)
- Body Length: 37.30mm (1.45 inch)
- Diameter: 32.70mm (1.45 inch)
- Screw hole diameter: 3,0 mm
- Motor hole pattern: 16 mm, 19 mm
- Idle current: 2.3A
- Maximum Current: 44.2A (Peak: 58.2A / 2 seconds)
- Maximum Power: 928W (Peak: 1222W / 2 seconds)
- Internal resistance: 21.3 mOhm
- Connection: Wire / Gold plated plugs
- Designer: Yutao Zou
