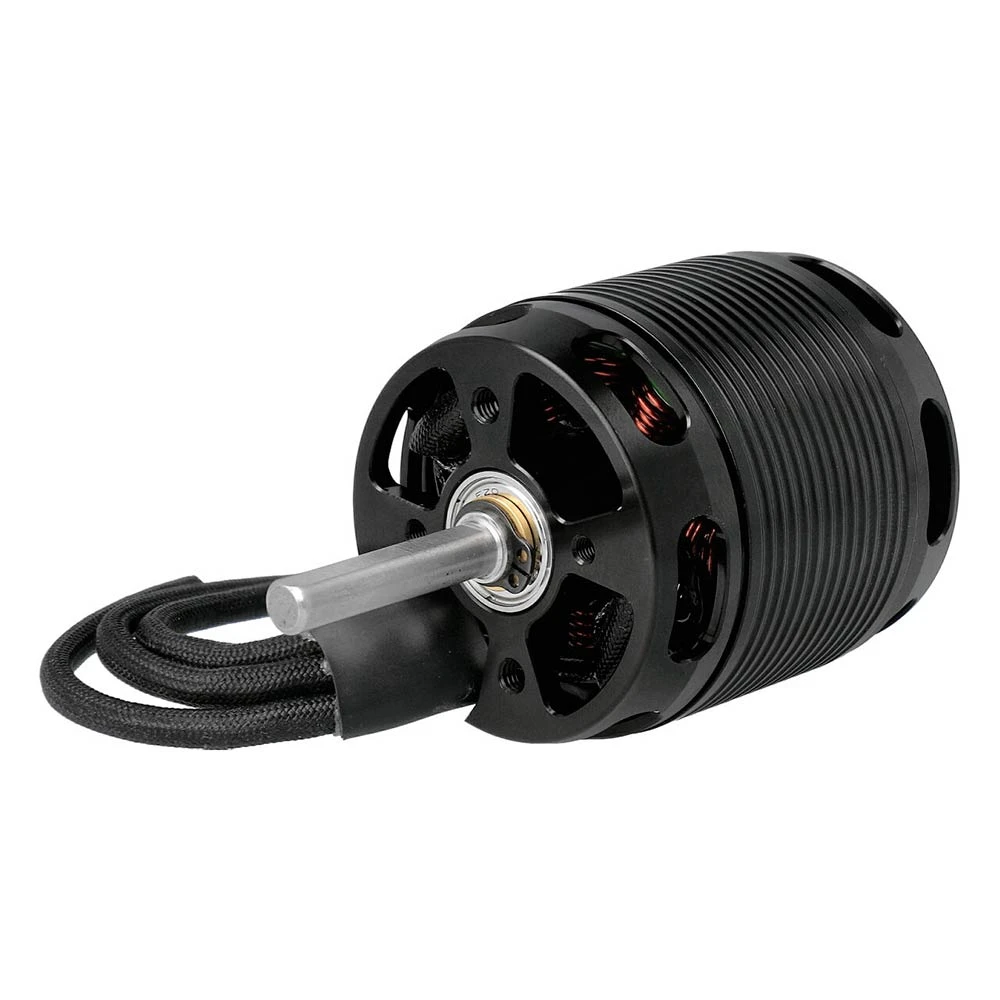

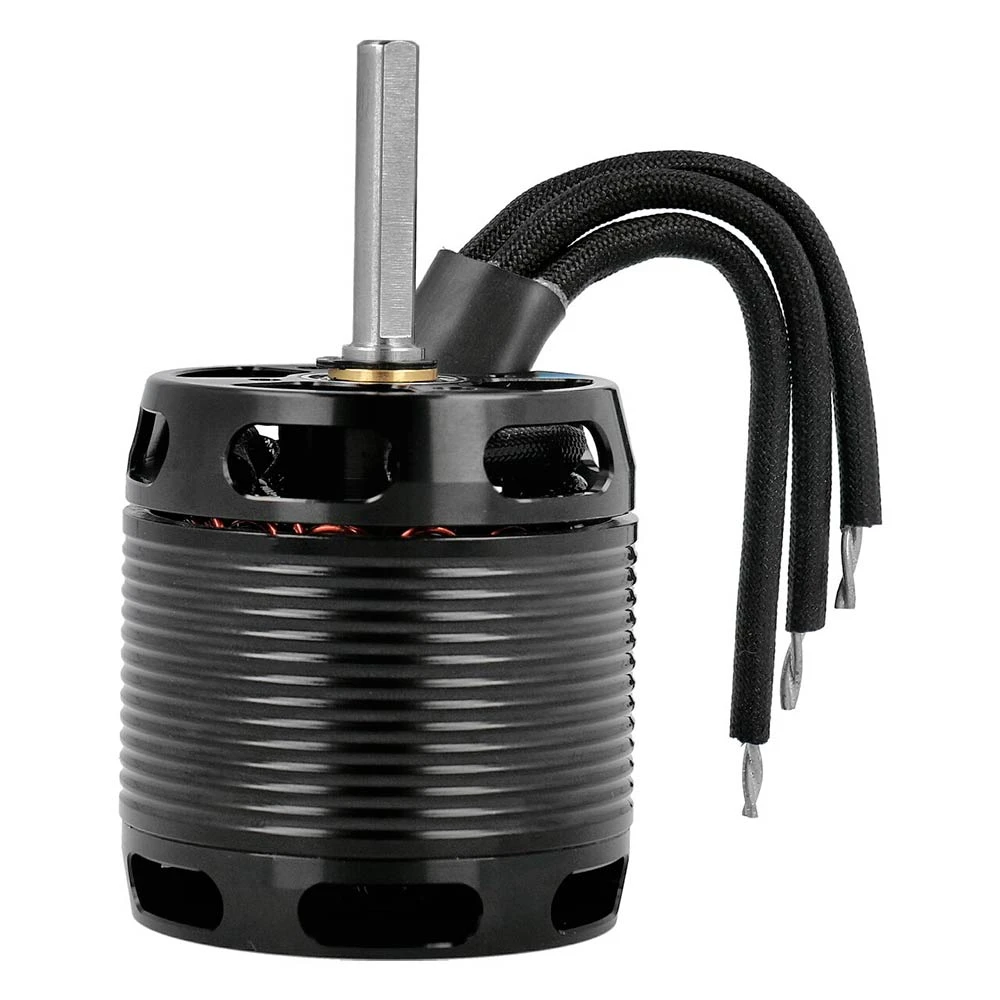

Egodrift BETA Tengu 4025HT / 550kV Motor (6×32)

EGODRIFT BETA Series 4025HT motor with a kV rating of 550kV for 500-600 size helis on 12S battery setups.

Our EGODRIFT BETA Series is your chance to fly our latest rc helicopter motor creations first and before they’re officially released.

The 4025 HT motors offer yet faster reaction speed, increased power and efficiency and come with a 2.5mm higher base improved cooling.

Please note that the shafts available for the 40xx HS models will for this reason NOT fit the 40xx HT models. Shaft kits for the HT models are of course available as well.

SPECIFICATIONS

• Manufacturer: EGODRIFT
• Stator size: 4025
• Motor configuration: 12N10P
• Motor weight: TBA
• Base Colour: Black
• Wire colour: Copper
• Motor wire type: High temperature copper wire
• Motor wire: 1.12mm
• Motor shaft: Hardened Steel
• LiPo cells: 12S
• Motor kV: 550 kV
• Stator diameter: 40 mm
• Stator height: 25 mm
• Body Length: 52.5mm (2.067 inch)
• Diameter: 49.6mm (1.95 inch)
• Motor hole pattern: 25mm, 30mm
• Idle current: TBA
• Maximum Current: TBA
• Maximum Power: TBA
• Internal resistance: TBA

What’s in the box

• 1 x BETA Tengu 4025HT / 550kV Motor
• 3 x Gold Plated Amass Connector, Male
• 3 x Gold Plated Amass Connector, Female
• 4 x Mounting Screws
• 1x Bell securing screw
