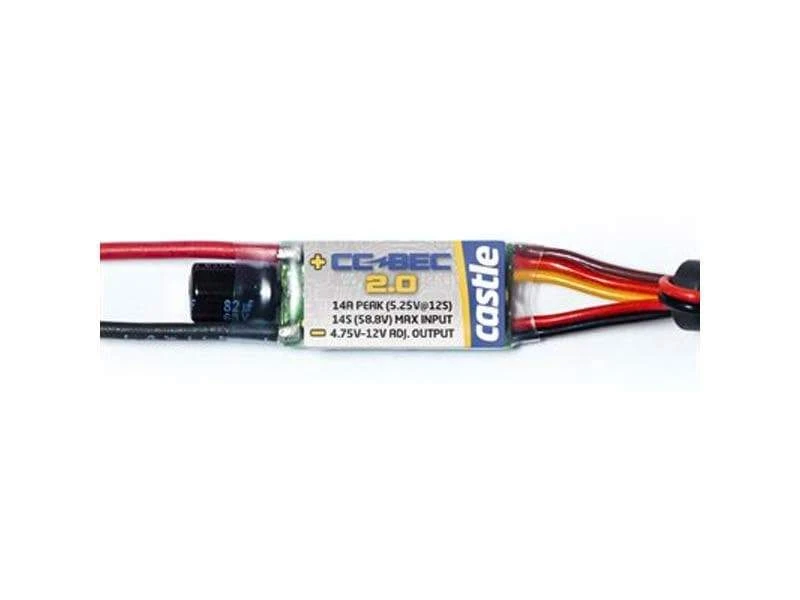

Castle Creations BEC 2.0 Voltage Regulator
Original price was: $39.95.$27.97Current price is: $27.97.
- Safe Payments, the Smart Choice
- Nature-friendly materials, 100%.
- Top-Notch Quality
- Safe Shopping Guaranteed
The CC BEC 2.0 complements our established line of BECs hobbyists have relied on for years. With hundreds of thousands in the field, users can count on this new design to power today’s high-power, digital servos and accessories safely. The CC BEC 2.0 features heavy duty, dual output wires that will provide clean power to sensitive radio equipment. Castle Link2 can be used to set the output from 4.75 to 12 volts and power today’s power hungry servos, cameras, and other accessories. Do it right the first time, invest in the CC BEC 2.0 to protect expensive electronics for the long haul.
Note: CC BEC 2.0 should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.
Footnote:
1. Adjustable Output Voltage may be set with Castle Link (sold separately).
| CC BEC Comparison Chart | ||||
|---|---|---|---|---|
| CC BEC 1.0 | CC BEC Pro | CC BEC 2.0 | CC BEC 2.0 WP | |
| Part Number: | 010-0004-00 | 010-0004-01 | 010-0154-00 | 010-0153-00 |
| Common applications: | Crawlers, Racing, Sport Planes, Night Flyers | Helis, 1/5th Scale Cars, Giant Scale Planes, UAS | Helis, Planes, UAS, Racing | Crawlers, Marine, Sea Planes, UAS, Industrial |
| Waterproof: | No | No | No | Yes |
| Peak current: | 10A | 20A | 14A (dependent upon input and output voltage) | 15A (dependent upon input and output voltage) |
| Continuous current1: | 2S-3S: 7A 3S-6S: 5A | 2S-4S: 15A 5S-6S: 13A 7S-8S: 11A 9S-10S: 9A 11S-12S: 8A | 4.75-7.0V output: 9A 7.25V-8.5V output: 8A 8.75V-10.0V output: 7A 10.25-12.0V output: 6A | 4.75- 6.0V output: 10A 6.25-8.5V output: 9A 8.75-10.0V output: 8A 10.25-12.0V output: 7A |
| Max volts: | 6S (25.2V) | Surface: 8S (33.6V) Air (w/Brake): 10S (42.0V) Air (No Brake): 12S (50.4V) | Surface: 12S (50.4V) Air (W/Brake): 12S (50.4V) Air (No Brake): 14S (58.8V) | Surface 12S (50.4V) Air (w/Brake): 12S (50.4V) Air (No Brake): 14S (58.8V) |
| Adjustable output voltage2: | 4.8 to 9V | 4.8 to 12.5V | 4.75 to 12V | 4.75 to 12V |
| Default setting: | 5.1V | 5.1V | 5.25V | 5.25V |
| Length: | 1.7″ (43mm) | 1.86″ (47mm) | 1.69″ (43mm) | 1.37″ (35mm) |
| Width: | 0.57″ (15mm) | 1.30″ (33mm) | 0.56″ (14mm) | 0.69″ (18mm) |
| Height: | 0.48″ (12mm) | 0.86″ (22mm) | 0.32″ (8mm) | 0.75″ (19mm) |
| Shipped weight3: | 0.5 oz. (13g) | 1.4 oz. (40g) | 0.7 oz. (21g) | 1.0 oz. (28g) |
Footnotes:
1. Ratings are determined with a 5mph airflow at 25° C (77° F). Ratings for CC BEC 2.0 are dependent on both input and output voltage as follows:
| CC BEC 2.0 (010-0154-00) Peak Current Rating Detail | |||||||
|---|---|---|---|---|---|---|---|
| Output Voltage Setting | |||||||
| LiPo Cells | ≤5.25V | 6V | 7V | 8V | 9V & 10V | 11V | 12V |
| 8S-14S | 14A | 13A | 12A | 11A | 10A | 9A | 8A |
| 6S | 13A | 13A | 12A | 11A | 10A | 9A | 8A |
| 4S | 13A | 12A | 11A | 10A | 10A | 9A | 8A |
| 3S | 12A | 12A | 11A | 10A | 10A | – | – |
| 2S | 11A | 11A | 10A | – | – | – | – |
2. Adjustable Output Voltage may be set with Castle Link (sold separately).
3. Weight with full length wires, power wires may be shortened to save weight depending on application.
