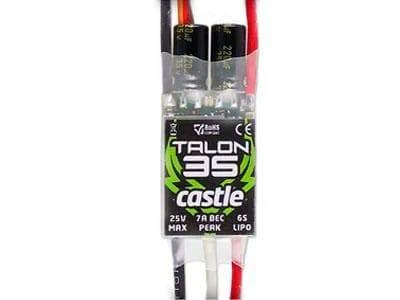

Castle Creation Talon 35, 25V 35 AMP ESC, W/Heavy Duty BEC

Talon 35: Little package, big BEC.
This “mighty mini” can take on the most extreme maneuvers while keeping it’s cool. Talon 35 is intended for use in 450 Heli setups running up to 6S or .10 to .20 fixed wing applications pulling up to 35 amps and boasts a 7 amp peak/5 amp continuous BEC, keeping even the most draining servos at ease. Talon 35 also offers Castle’s industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter (coupon included). The compact layout and thin profile make mounting Talon 35 simple and stress-free in any setup.

Item number	010-0122-00
Input voltage	MIN: 2S LiPo MAX: 6S LiPo
Max continuous amperage at full throttle	35 amps*
BEC voltage (voltage regulator for powering radio and servos)	5.5 volts
BEC output	7 amp peak** 5 amp continuous (always check servo draw prior to first flight)
Dimensions	Width: 0.88″ (22.4mm) Length: 1.93″ (49mm) Depth: 0.33″ (8.4mm)
Weight (with wires)	0.98 oz. (27.8g)
Weight (without wires)	0.42 oz (12g)
Items needed for operation or installation	Battery connector and motor connectors sold separately
Programmability	Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows

*RC HOBBY APPLICATION RATING: 35 amps for the duration of a single 4,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.

**Peak indicates amperage sustainable for most servos’ current draw transients. Always confirm servo current draw before the first flight of the model.
