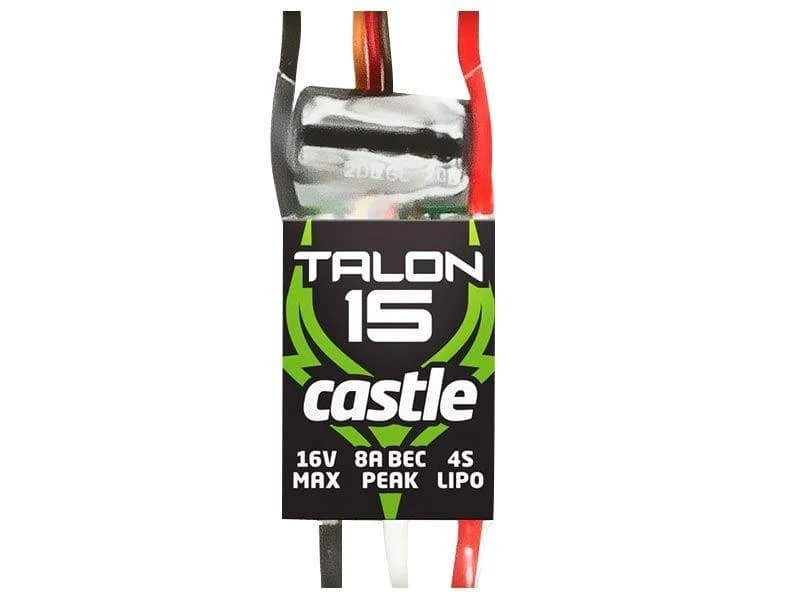

Castle Creation Talon 15, 15AMP ESC, HEAVY DUTY BEC
Original price was: $39.95.$27.97Current price is: $27.97.
- Safe Payments, the Smart Choice
- Nature-friendly materials, 100%.
- Top-Notch Quality
- Safe Shopping Guaranteed
| Input voltage | MIN: 2S LiPo MAX: 4S LiPo | ||
| Max continuous amperage at full throttle | 15 amps* | ||
| BEC voltage (voltage regulator for powering radio and servos) | 5.5 volts | ||
| BEC output | 8 amp peak** 3 amp continuous (always check servo draw prior to first flight) | ||
| Dimensions | Width: 0.58″ (14.7mm) | ||
| Weight (with wires) | 0.25 oz. (7.2g) | ||
| Weight (without wires) | 0.12 oz (3.4g) | ||
| Items needed for operation or installation | Battery connector and motor connectors sold separately | ||
| Programmability | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software. | ||
RC HOBBY APPLICATION RATING: 15 amps for the duration of a single 1,500 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air and minimal BEC load. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.
**Peak indicates amperage sustainable for 0.5 seconds – long enough for most servos’ current draw transients. Always confirm servo current draw before the first flight of the model.
