DESIGNED FOR EXTREME 3D CARBON FIBER EDITION

Unique blade design and outstanding performance

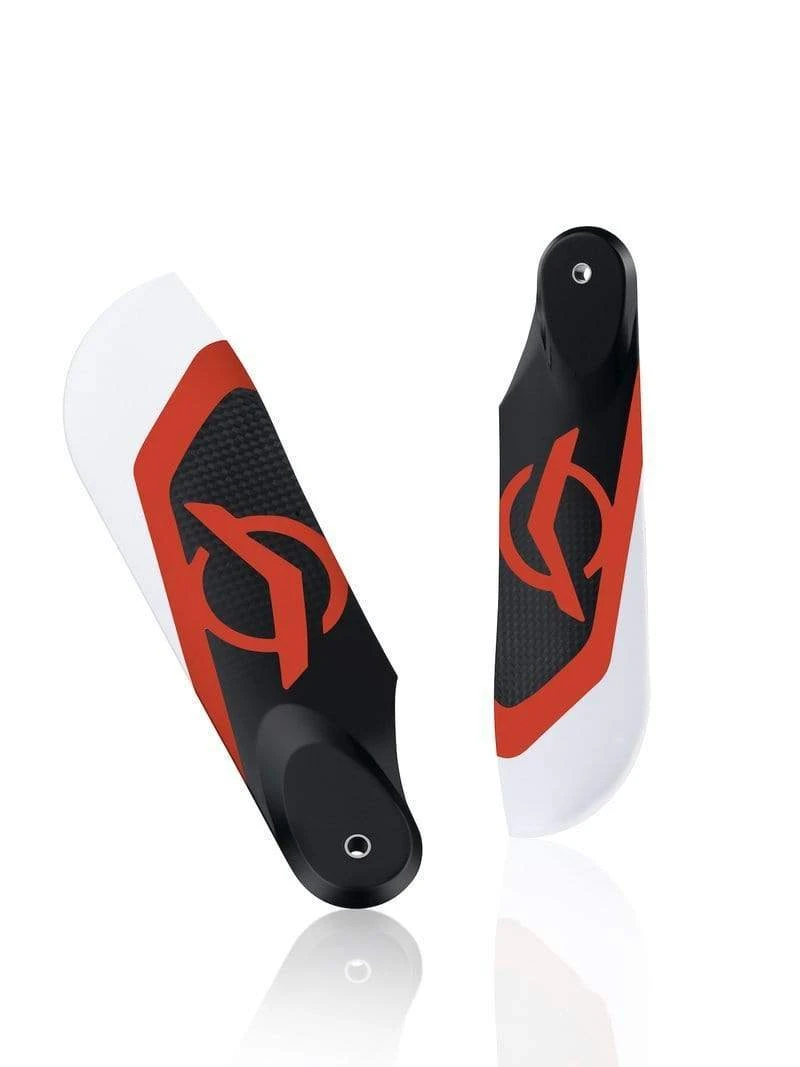

AZ Tail Blade features a unique design that has been carefully and repeatedly tested to position the perfect propeller center of gravity. Excellent center of gravity increases flight stability while providing fast pitch response and precise control. In addition, the optimized design of the tip contour has been given special attention and lowers overall noise levels. This new tip reduces energy loss and reduces the speed changes when loaded. This means overall efficiency has been improved.

Flawless design for a superior flight experience and feel
The blade design features a non-uniform chord width across the entire blade. Combined with a unique airfoil, these aspects provide improved flight performance and smooth control. The new AZ Tail Blades will unleash the full potential of your helicopter.

Specifications	AZ-86	AZ-105	AZ-115	AZ-95
Length	86mm	105mm	115mm	95mm
Width	26.-27.5mm	28.5-31.5mm	28.5-31.5mm	26.5-29.5mm
Grip	>5mm	>5mm	>5mm	>5mm
Hole	3mm	3mm	3mm	3mm
Weight	5.5g	6.6g	7.6g	6g
