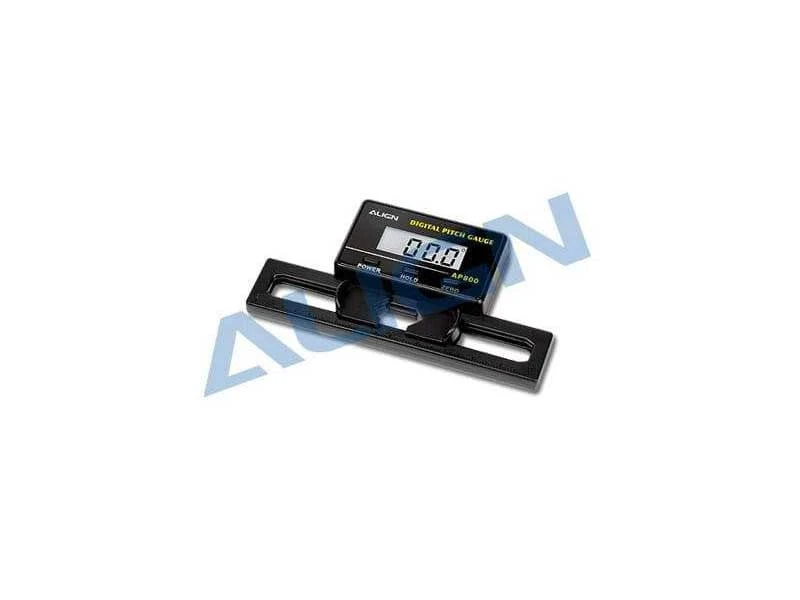

ALIGN AP800 Digital Pitch Gauge HET80001.

Introduction:
Developed by the R&D team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. Auto-detecting Horizontal level , with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

Fatures:
Auto-detecting Horizontal level.
Uses backlighting LCD monitor.
Zero and Lock function.
Detectable pitch range: -90° ~ 90°.
Automatic screen rotation.
Suitable for 200~800mm main blades.
Build-in energy saving function. Power shuts down after 3 mins without any movement.

Specifications:

Body Dimension：108×53.9x16mm
Suitable blade width：20mm~74mm
Detectable pitch range: ±90°
Resolution: 0.1°
Battery: 2X CR 2032 Lithium
Weight:38g (including battery)
