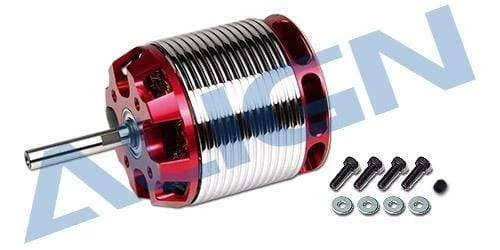

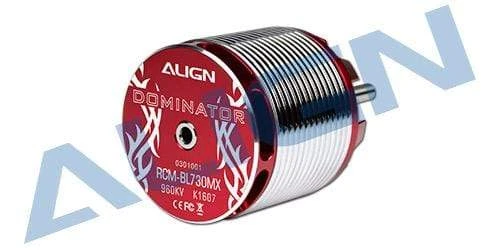

Align 730MX Brushless Motor (960KV/4230)

Align 730MX Brushless Motor (960KV/4230) - Image 2

Align 730MX Brushless Motor (960KV/4230) - Image 3

Align 730MX Brushless Motor (960KV/4230) - Image 4

Align 730MX Brushless Motor (960KV/4230)

Original price was: $134.99.Current price is: $94.49.

SKU: AGVSA 4706841395277 Category: Helicopters Tags: Alignpart wholesale, Coupon promotion, Heli electronics, Heli_cate, Heli-motors, Helicopter Electronics, Motors, New year 2022, Outofstock, Promotable, Sales

Safe Payments, the Smart Choice
Nature-friendly materials, 100%.
Top-Notch Quality
Safe Shopping Guaranteed

Description
Reviews (0)

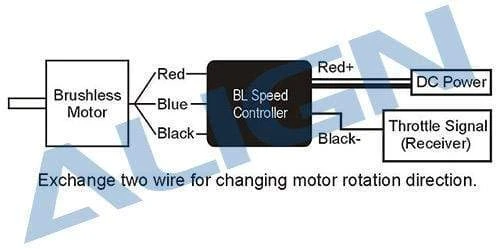

Instructions:

Specification:

Brand new 730MX motor is especially designed for power upgraded T-REX 550X, normally found in 700 class high spec helicopter, that enthusiasts can clearly feel the dramatic increase in power and torque, while taking advantage of its higher efficiency, lower current and temperature benefits.
●The 730MX(850KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
●Maintenance free, high torque, high efficiency, stable and quiet.
●High-speed ball bearings, powerful magnetic outrunner rotor.
●Manual Download：
Align 730MX Brushless Motor (960KV/4230) -RC Helicopter Shop image pdf

Align 730MX Brushless Motor (960KV/4230) -RC Helicopter Shop image pdf

Align 730MX Brushless Motor (960KV/4230) -RC Helicopter Shop caution

For more detailed information, please refer to the Power Tip

Lifetime Service

Effective immediately, the Align MX series motors have 40% off Lifetime service where your old motor can be exchanged for 40% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors .

●Input voltage: 6S
●Max continuous current: 115A/195A(5sec)
●Max output power: 2550W/4330W(5sec)
●KV value: 960KV
●Stator Dimension:4230
●Stator Arms: 12
●Magnet Poles: 8
●Dimension: 6x52x89.1mm
●Weight: 380g

Accessories:

●Socket screw(M4X10) x 2
●Washer(Φ4XΦ8X1) x 4
●4mm gilt terminal x 2
●M4 set screw x 1
